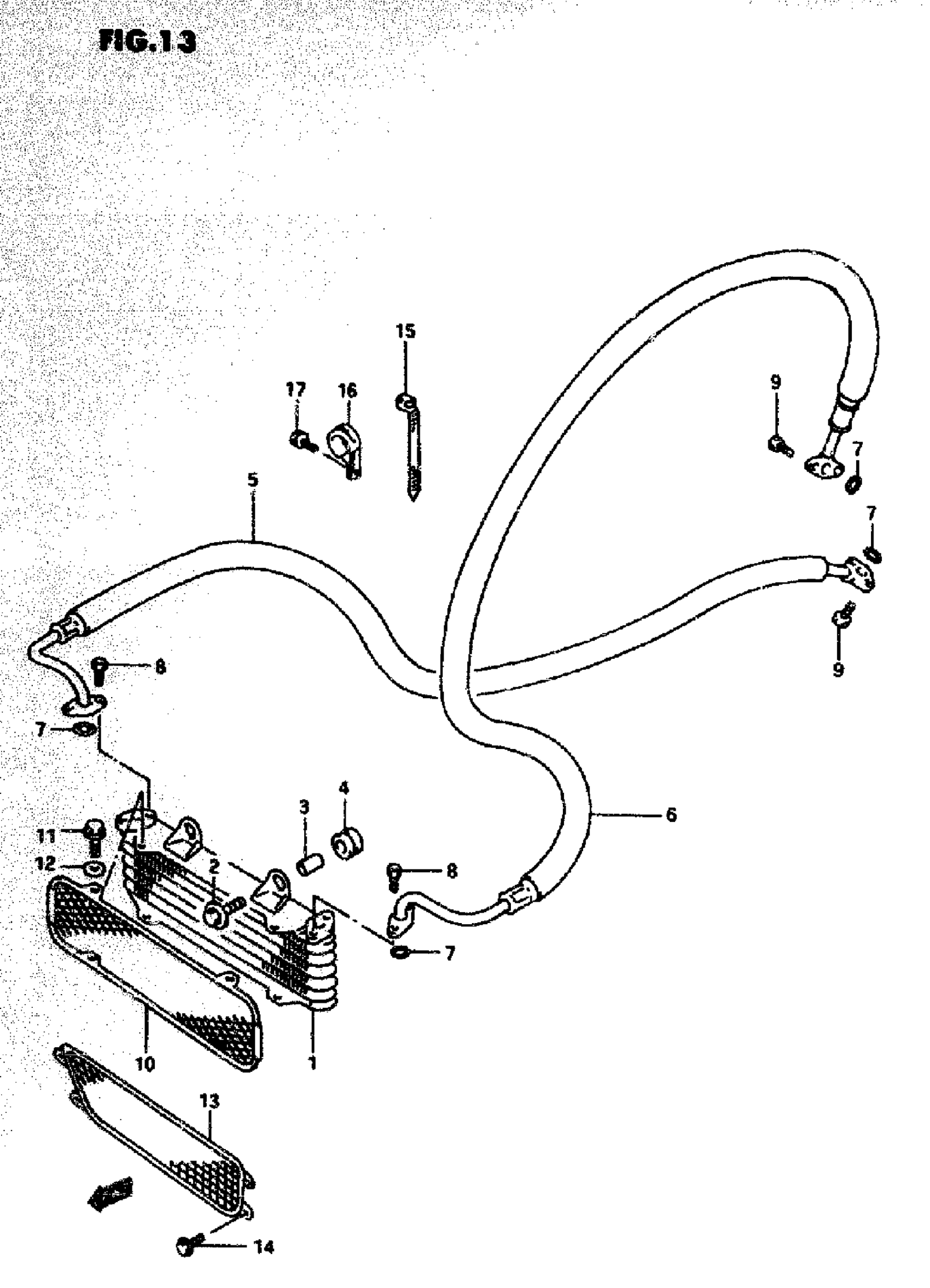

Suzuki LT-F4WDX (1997) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-19B00

$868.18

2

BOLT (6X20) | MODEL T This part replaces 09116-06143.

09116-06115

$1.97

2

BOLT (6X20) | MODEL V

09116-06167

$2.19

3

SPACER (6.5X10X10) | MODEL T This part replaces 09180-06030.

09180-06310

$1.91

3

SPACER | MODEL V

09180-06310

$1.91

4

CUSHION

09320-10015

$2.54

5

HOSE,OIL COOLER This part replaces 16460-19B00.

16460-19B11

Unavailable

6

HOSE,OIL COOLER This part replaces 16470-19B00.

16470-19B11

Unavailable

7

0 RING (D:2.4.ID:12.3)

09280-12008

$2.76

8

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

9

BOLT (6XL6)

09106-06073

$2.39

10

BUMPER OIL COOLER

16650-44B00

Unavailable

11

BOLT This part replaces 01547-05103.

01547-0510B

$2.97

12

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.84

13

GUARD, OIL COOLER

16640-19B00

Unavailable

14

BOLT | -F.NO.T2110386 This part replaces 01550-06103.

01550-0610A

$1.97

14

BOLT | F.NO.T2110387- This part replaces 01580-06123.

01580-0612A

$2.32

15

CLAMP (L:235)

09407-25401

$4.66

15

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

16

CLAMP

09403-26401

Unavailable

17

BOLT This part replaces 01550-06103.

01550-0610A

$1.97
