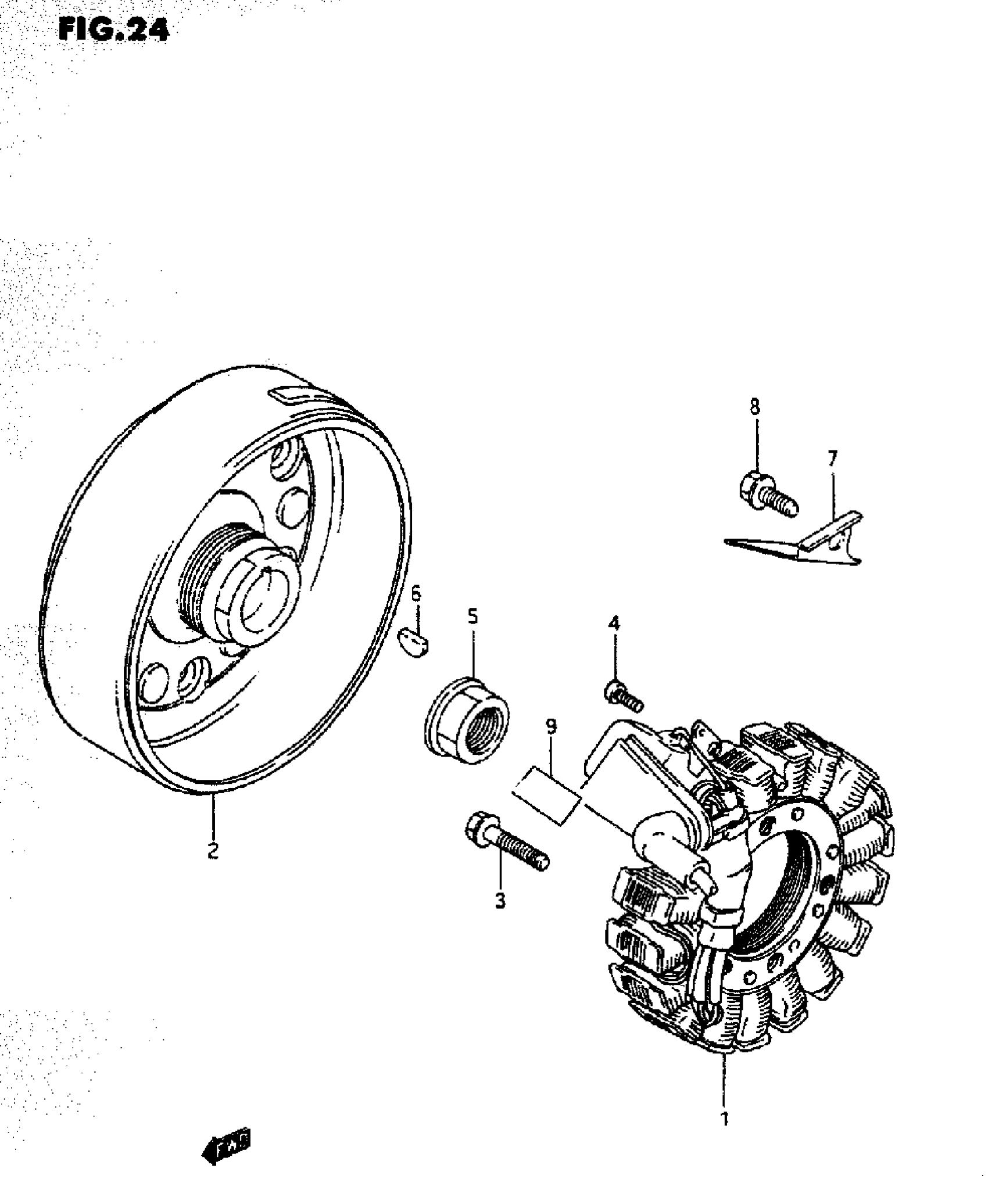

Suzuki LT-F4WDX (1997) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY

32101-19B10

$642.77

2

ROTOR

32102-19B20

Unavailable

3

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

4

SCREW This part replaces 02112-04103.

02112-0410A

$1.49

5

NUT

31792-18A00

$11.87

6

KEY

09420-04008

$3.42

7

PLATE

32373-19B00

Unavailable

8

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

9

SHEET, HEAT PROTECTION

37841-22D00

Unavailable
