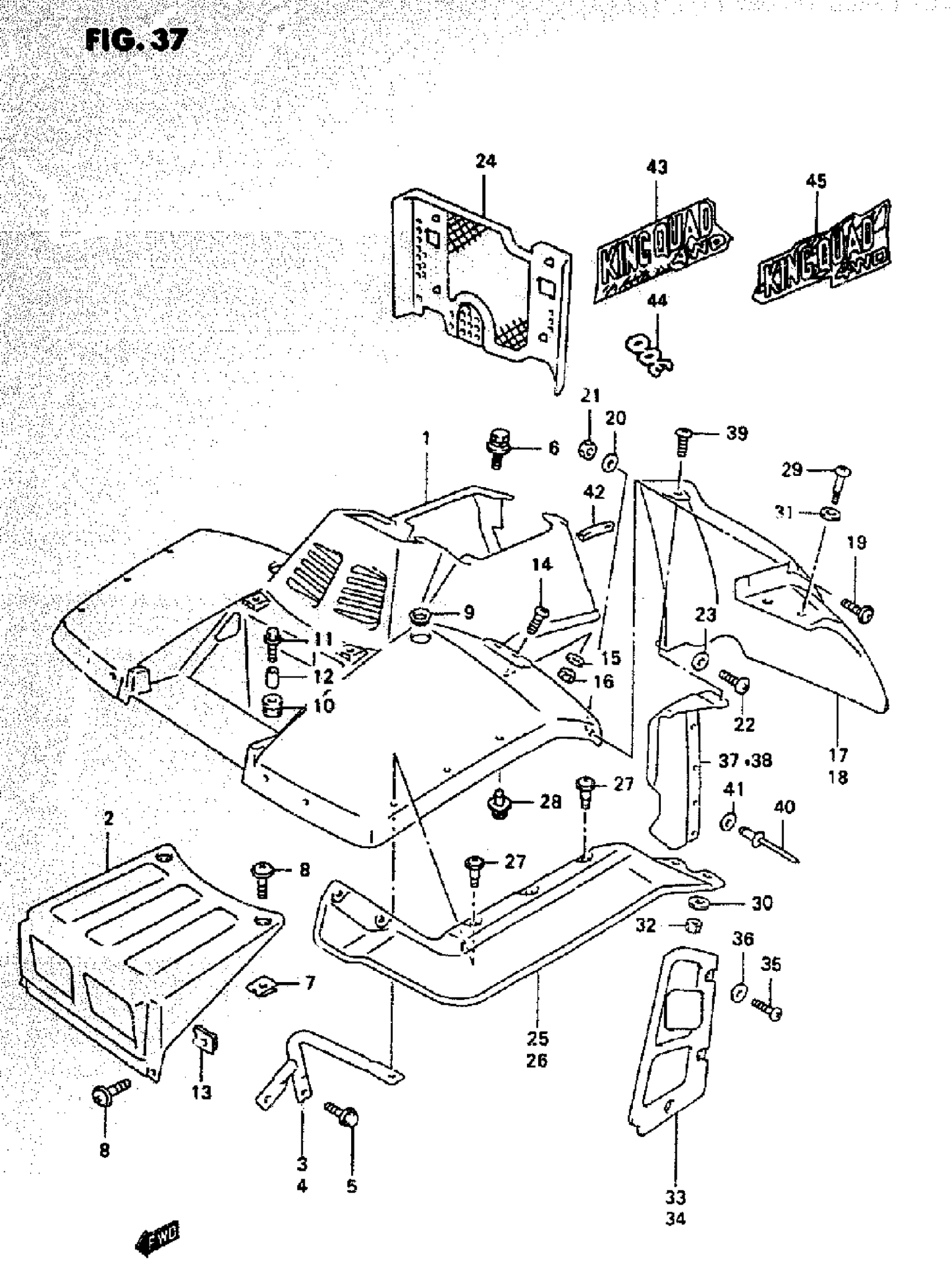

Suzuki LT-F4WDX (1997) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT (BLUE)

53111-19B10-0VT

Unavailable

1

FENDER, FRONT (GREEN)

53111-19B10-Z34

Unavailable

2

FENDER, CENTER

53118-19B00

$55.88

3

BRACE, FENDER RH

53210-19B10

Unavailable

4

BRACE, FENDER LH

53240-19B10

Unavailable

5

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

6

BOLT, FENDER REAR (L:14)

09118-06019

$2.92

7

NUT

53141-19A00

$4.34

8

SCREW This part replaces 09136-06062.

09136-06017

$2.59

9

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

10

CUSHION, FRONT FENDER FRONT

09320-11008

$2.60

11

BOLT, FRONT FENDER FRONT

09116-06025

$2.44

12

SPACER

09180-06120

$2.32

13

NUT

53141-19A00

$4.34

14

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

15

WASHER

09169-06016

$1.65

16

NUT

09159-06078

$2.62

17

MUD FLAP, FENDER RH

53311-19B10

Unavailable

18

MUD FLAP, FENDER LH

53312-19B10

Unavailable

19

SCREW

09139-05038

$2.06

20

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

21

NUT This part replaces 09159-05026.

09159-05043

$2.22

22

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

23

WASHER, INNER

09169-06010

$2.60

24

GUARD, MUFFLER FRONT

53310-20B12

$91.95

25

MUD GUARD, FENDER FRONT RH

53331-19B00

Unavailable

26

MUD GUARD, FENDER FRONT LH

53332-19B00

Unavailable

27

SCREW

09136-05038

$2.96

28

CLIP (BLACK)

09409-08313-5PK

$3.15

29

SCREW

09139-05037

$2.06

30

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

31

WASHER (6.5X18X1.6) This part replaces 09160-07011.

09160-06109

$1.49

32

NUT This part replaces 09159-05026.

09159-05043

$2.22

33

MUD FLAP, INNER REAR RH

53511-19B00

$51.32

34

MUD FLAP, INNER REAR LH

53521-19B00

$51.32

35

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

36

WASHER

09169-06010

$2.60

37

MUD FLAP, inner LH

53411-19B01

Unavailable

38

MUG FLAP, inner LH

53421-19B01

Unavailable

39

SCREW

09139-05037

$2.06

40

RIVET This part replaces 09229-03023.

09229-03023-XC0

Unavailable

41

WASHER

09160-03008

Unavailable

42

CUSHION. mud flap LH | CUT 125X20

63191-44A00

Unavailable

43

EMBLEM, FRONT FENDER | MODEL T

68151-19BA0-Z43

Unavailable

44

EMBLEM, "300" | E28

68151-19B60-L43

Unavailable

45

EMBLEM, FRONT FENDER | MODEL V

68151-19BB0-G2H

Unavailable
