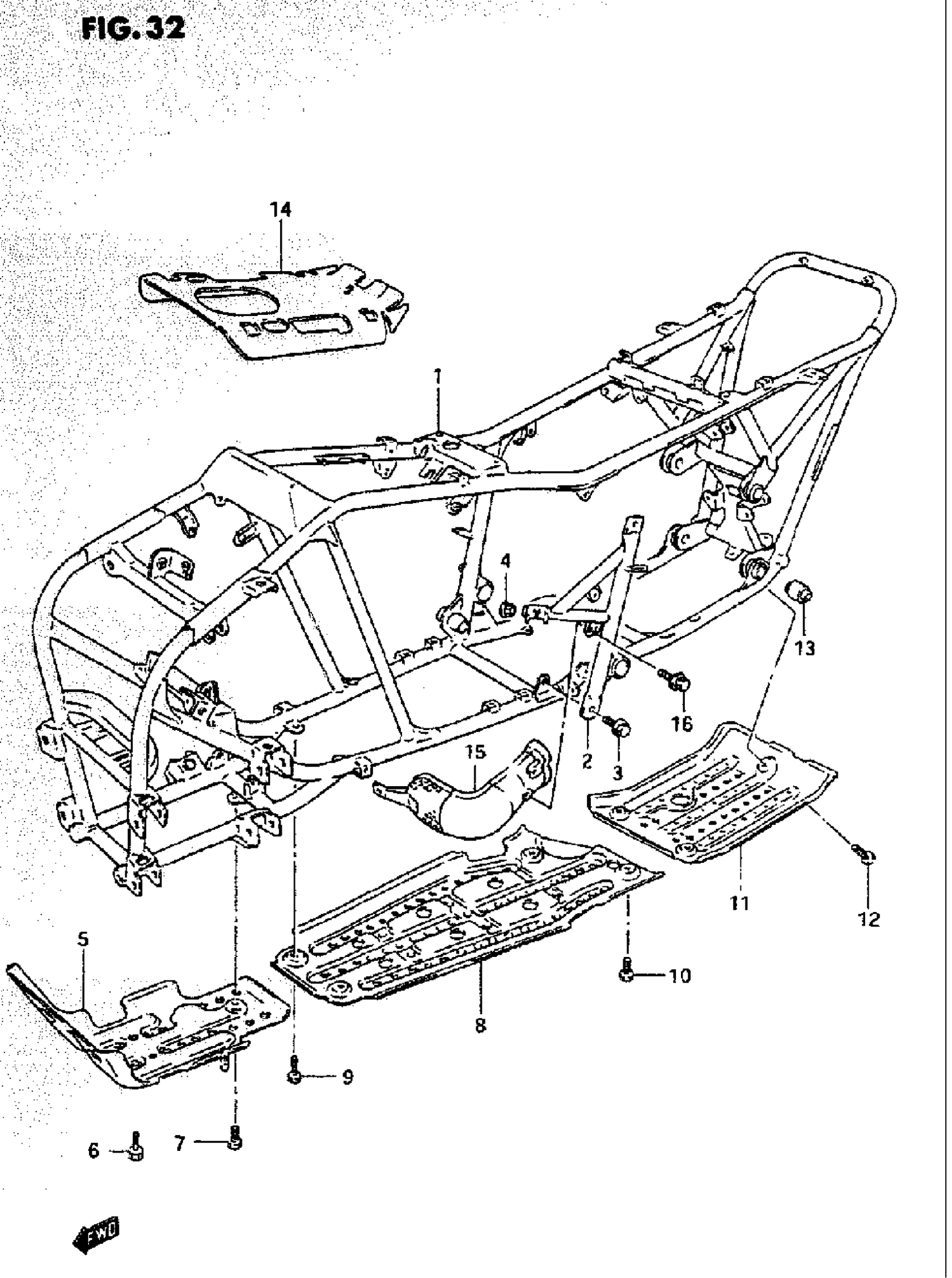

Suzuki LT-F4WDX (1997) FRAME Diagram

#

Description
Price

1

FRAME SET (BLACK) This part replaces 41101-39830-019.

41101-39850-019

Unavailable

2

BAR, MOUNTING FRONT (BLACK)

41910-39D00-019

Unavailable

3

BOLT

09103-10165

$4.62

4

CAP

43978-24500

$8.42

5

PROTECTOR, FRONT This part replaces 42510-19B11.

42510-19B12

$149.42

6

BOLT This part replaces 01580-06123.

01580-0612A

$2.32

7

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

8

PROTECTOR, MIDDLE This part replaces 42560-19B30.

42560-19B31

Unavailable

9

BOLT, REAR This part replaces 01580-06203.

01580-0620B

$3.30

10

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

11

PROTECTOR, ENGINE This part replaces 61390-19B01.

61390-19B02

$125.61

12

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

13

NO DESCRIPTION AVAILABLE This part replaces 47157-19B10.

47157-19B11

Unavailable

14

BUSH

09319-10064

$21.22

15

COVER, MUD

42570-39D00

Unavailable

16

BOLT This part replaces 01580-06123.

01580-0612A

$2.32
