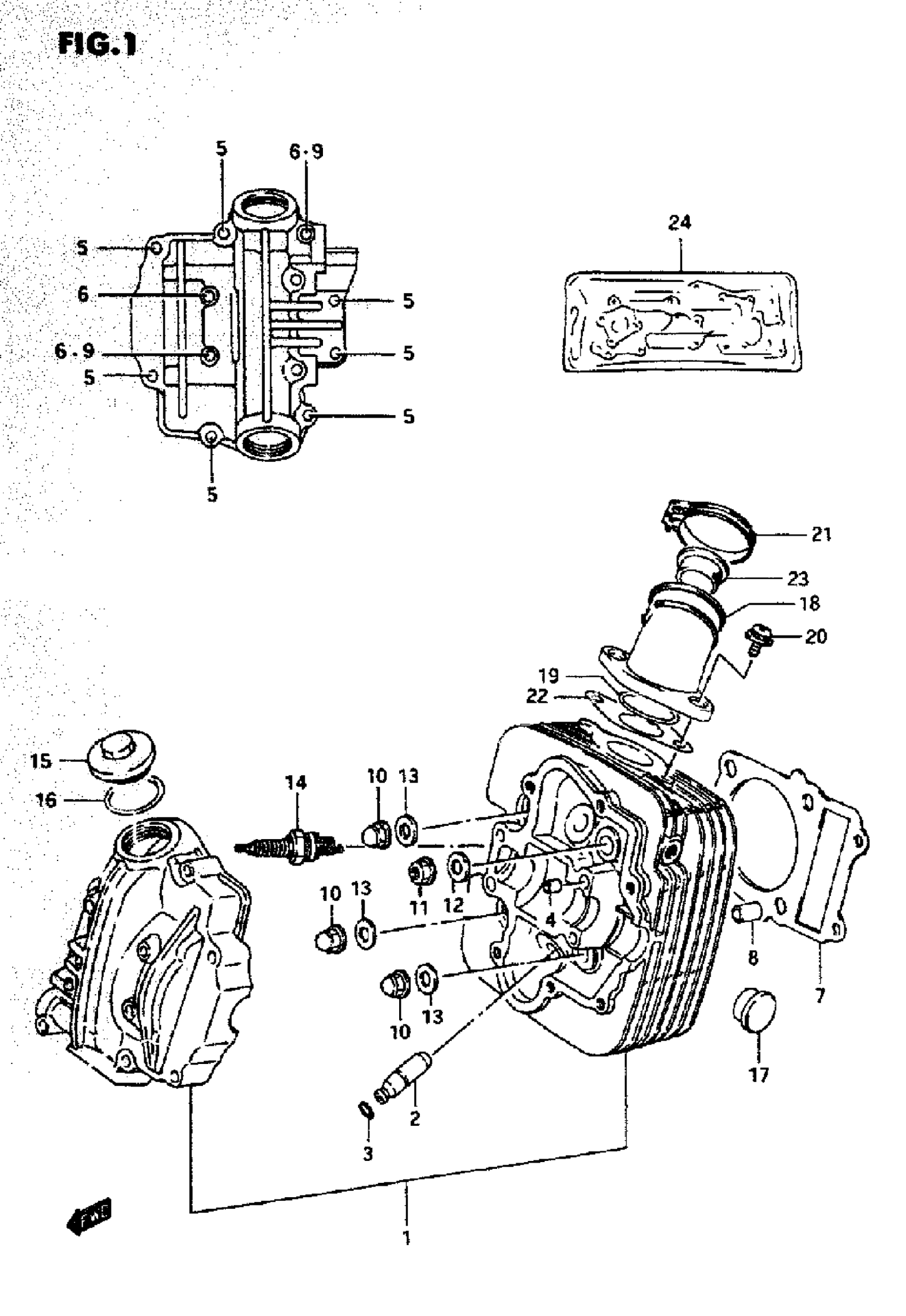

Suzuki LT-F4WDX (1997) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-19B71

$884.57

2

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

6

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

7

GASKET, CYLINDER HEAD

11141-25C04

$19.98

8

PIN

04211-11169

$1.78

9

GASKET

09168-06023

$2.35

10

NUT

09159-08074

$5.36

11

NUT This part replaces 08316-10083.

08316-1008B

$2.66

12

GASKET

09168-08021

$2.61

13

GASKET (8.5XL7X2.3)

09168-08021

$2.61

14

SPARK PLUG (NGK,DR7EA) | E3 This part replaces 09482-00182.

09482-00398

$3.03

14

SPARK PLUG (NGK, DR7ES) | E28

09482-00220

Unavailable

15

CAP INSPECTION This part replaces 11175-37111.

11175-18920

$12.20

16

.O RING (D:3,ID:29.5)

09280-30001

$1.72

17

PLUG, HEAD

09241-22002

$5.24

18

PIPE ASSY,INTAK | MODEL T This part replaces 13110-19B51.

13101-19B51

$70.20

18

PIPE ASSY,INTAK | MODEL V This part replaces 13110-19B52.

13101-19B51

$70.20

19

0 RING (D:2.1.ID:34.7)

09280-35005

$9.05

20

SCREW This part replaces 02112-76203.

02112-7620B

$2.78

21

CLAMP | MODEL T This part replaces 09402-50203.

09402-50208

$4.77

21

CLAMP | MODEL V

09402-50208

$4.77

22

GASKET, INTAKE PIPE

13120-19B01

$4.72

23

NET, INTAKE

13130-19B50

Unavailable

24

GASKET SET This part replaces 11401-19872.

11401-19874

$214.30
