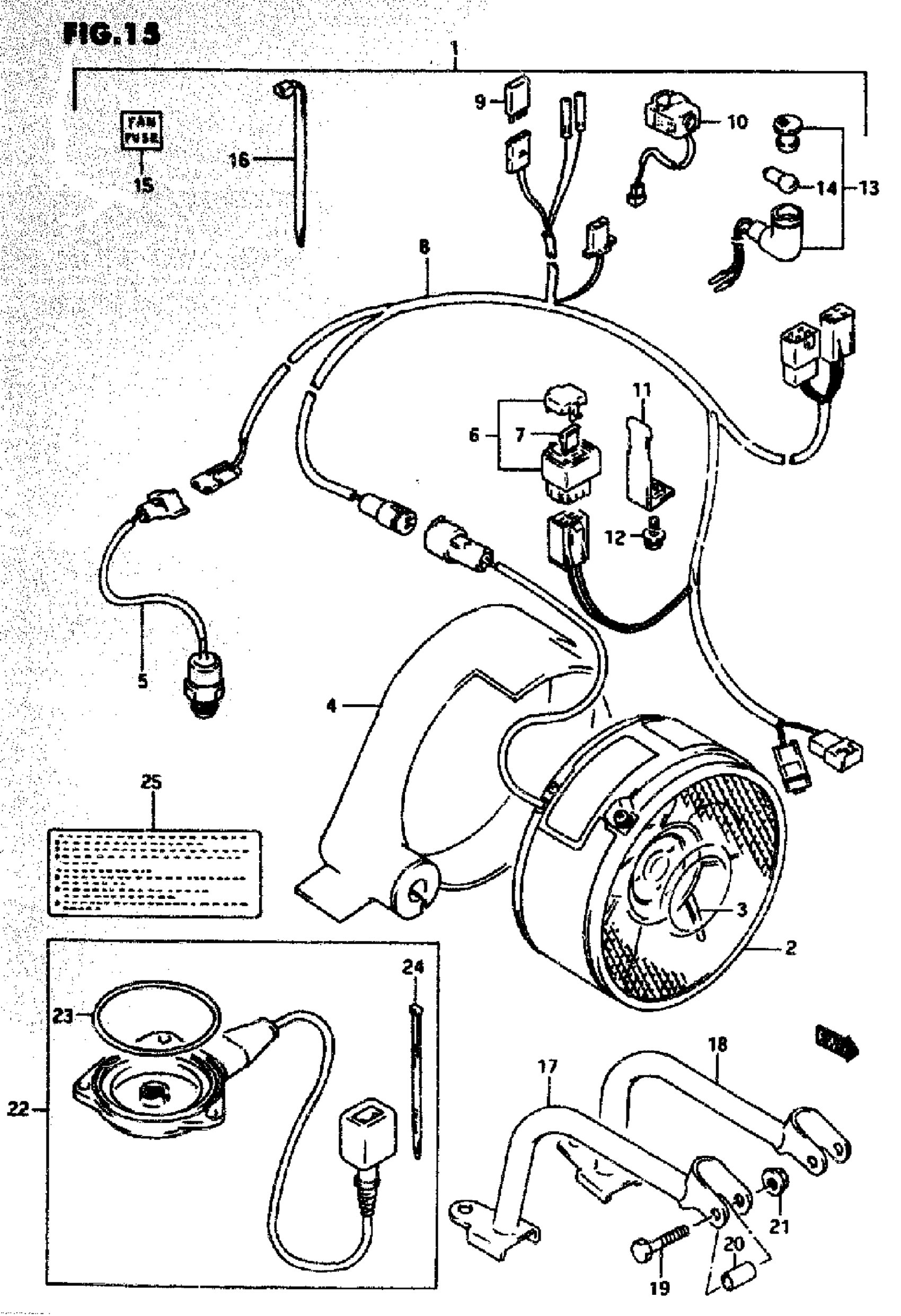

Suzuki LT-F4WDX (1997) COOLING FAN (OPTIONAL) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 17000-19850.

17000-19852

Unavailable

2

FAN ASSY, COOLING

17110-19B11

Unavailable

3

FAN

17820-19B10

Unavailable

4

BAND COOLING FAN

17121-19B01

Unavailable

5

SWITCH, COOLING FAN

17680-19B70

$119.65

6

BOX ASSY. FUSE

36740-24510

Unavailable

7

FUSE (10A)

09481-10101

$2.07

8

LEAD WIRE

36610-19B70

Unavailable

9

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

10

SWITCH ASSY, MANUAL

37910-19B10

Unavailable

11

BRACKET. COOLING FAN FUSE

38620-04570

$5.95

12

SCREW (6XL2) | MODEL T

09138-06053

Unavailable

12

BOLT (6X12) | MODEL V This part replaces 09118-06103.

09118-06055

$2.80

13

LAMP ASSY. FAN WARNING

36360-19B10

Unavailable

14

BULB (12V, 3.4W)

09471-12001

$1.65

15

LABEL., FAN WARNING

36367-19B00

Unavailable

16

CLAMP (L:125)

09407-14403

$2.26

17

TUBE, COOLING FAN RH

41970-19B20

Unavailable

18

TUBE. COOLING FAN LH

41980-19B21

Unavailable

19

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04

20

SPACER (L:19)

09180-08067

$2.41

21

NUT This part replaces 08316-10083.

08316-1008B

$2.66

22

HEATER SET, ENGINE | MODEL T This part replaces 16900-19B00.

16900-19810

Unavailable

22

HEATER SET, ENGINE | MODEL V

16900-19810

Unavailable

23

0 RING (D:2.4.ID:82.0)

09280-82001

$5.18

24

CLAMP

09407-14403

$2.26

25

NO DESCRIPTION AVAILABLE | FOR OVT This part replaces 68341-19B01-A4E.

68341-19B02

Unavailable

25

NO DESCRIPTION AVAILABLE | FOR Z34 This part replaces 68341-19B01-E6T.

68341-19B02

Unavailable
