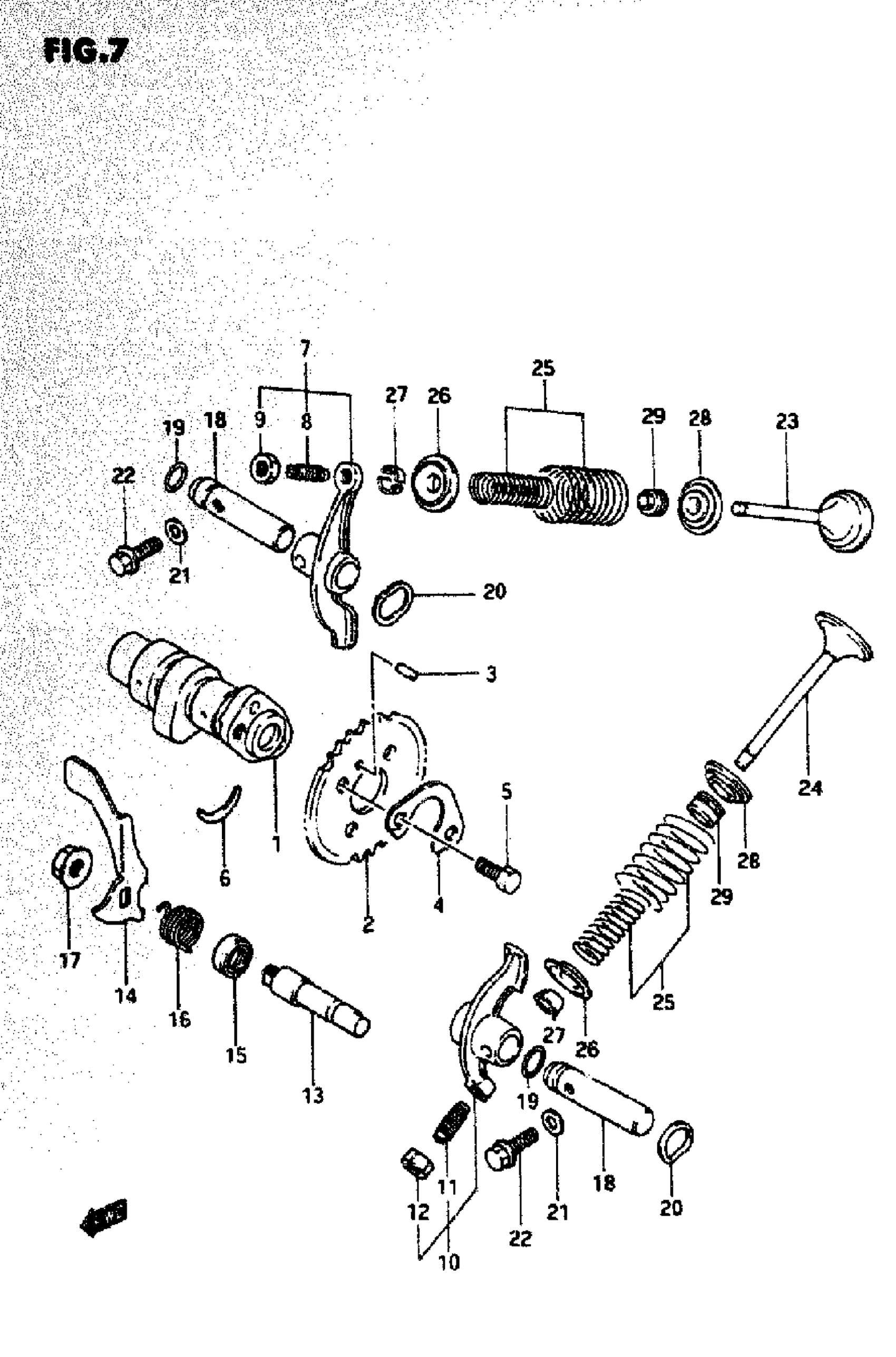

Suzuki LT-F4WDX (1997) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-19B70

$189.13

2

SPROCKET (NT:34) This part replaces 12741-04B00.

12741-04B01

$40.33

3

PIN

09261-05005

$1.49

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.51

5

BOLT (6XL0.5)

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM ASSY, VALVE ROCKER

12850-25C00

$43.16

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM ASSY, VALVE ROCKER

12850-25C00

$43.16

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, DECOMP

12941-19B00

$29.25

14

LEVER, DECOMP SHAFT

12942-19B01

$5.60

15

OIL SEAL (10XL7X6)

09282-10014

$6.70

16

SPRING

09448-17014

$4.07

17

NUT This part replaces 08316-10083.

08316-1008B

$2.66

18

SHAFT, VALVE ROCKER ARM

12861-05201

$19.72

19

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

20

WASHER

09164-12021

$2.03

21

GASKET

09168-06023

$2.35

22

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

23

VALVE. INTAKE

12911-19B00

$39.48

24

VALVE. EXHAUST

12912-18A00

$62.11

25

SPRING SET. VALVE

12920-05210

$13.75

26

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

27

COTTER, VALVE

12932-24400

$1.94

28

SEAT, VALVE SPRING

12933-49201

$5.84

29

OIL SEAL (5.5XLLX8.2)

09289-05015

$6.70
