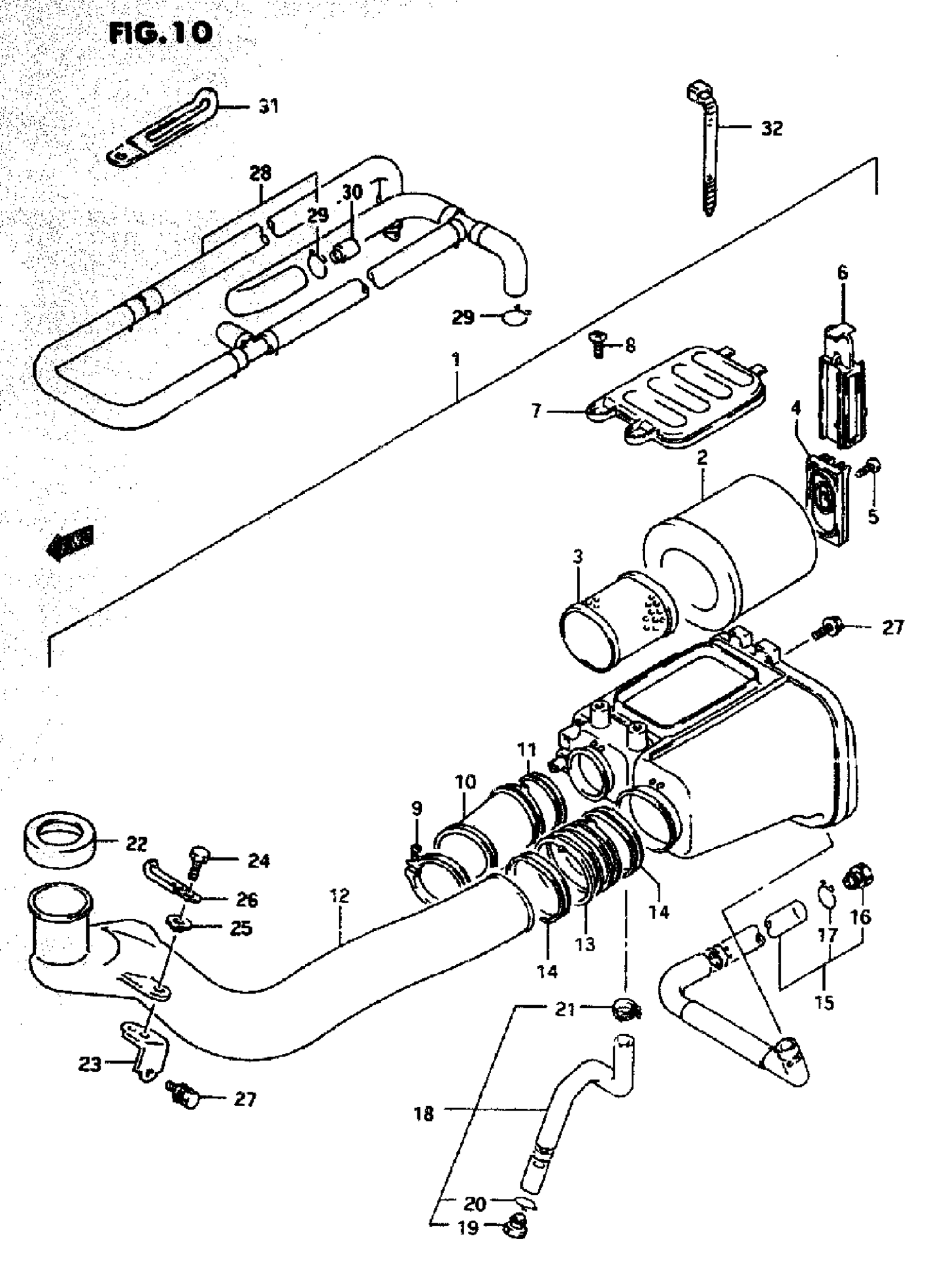

Suzuki LT-F4WDX (1997) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 13700-39D10.

13700-39D11

Unavailable

2

FILTER

13781-19B00

$27.40

3

HOLDER

13810-39D00

$24.39

4

GUIDE. SLIDER

13797-19B00

$3.56

5

SCREW This part replaces 02142-05163.

02142-0516A

$1.49

6

SLIDER

13798-33400

$10.28

7

CAP

13750-19B00

$16.13

8

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

9

CLAMP

09402-58208

$5.36

10

TUBE,OUTLET This part replaces 13881-19B80.

13881-19B81

$15.10

11

CLAMP This part replaces 09402-62203.

09402-62208

$6.58

12

TUBE, INLET This part replaces 13891-19B11.

13891-19B12

$100.02

13

JOINT

13889-19B01

$14.20

14

CLAMP

13826-19B00

$7.97

15

TUBE ASSY, DRAIN

13870-19B80

Unavailable

16

PLUG. DRAIN

13877-00190

$5.32

17

CLIP

09401-14301

$2.35

18

TUBE ASSY,DRAIN This part replaces 13870-39D00.

13870-39D01

Unavailable

19

PLUG, DRAIN

13877-00190

$5.32

20

CLIP

09401-14301

$2.35

21

CLIP This part replaces 09401-14402.

09401-14404

$2.28

22

CAP, INLET

13892-19B00

$13.92

23

BRACKET

13761-19B00

$6.38

24

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

25

SPACER

13838-02B00

$3.56

26

CLAMP

09404-06435

$3.68

27

BOLT This part replaces 01580-06123.

01580-0612A

$2.32

28

TUBE ASSY,BREAT This part replaces 13850-19B81.

13850-19B82

$121.37

29

CLIP

09401-14301

$2.35

30

CHECK VALVE

13860-19B80

Unavailable

31

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

32

CLAMP DRAIN TTIBE

09407-14403

$2.26
