1998 Suzuki LT-F4WD Front Wheel Diagram

← All diagrams

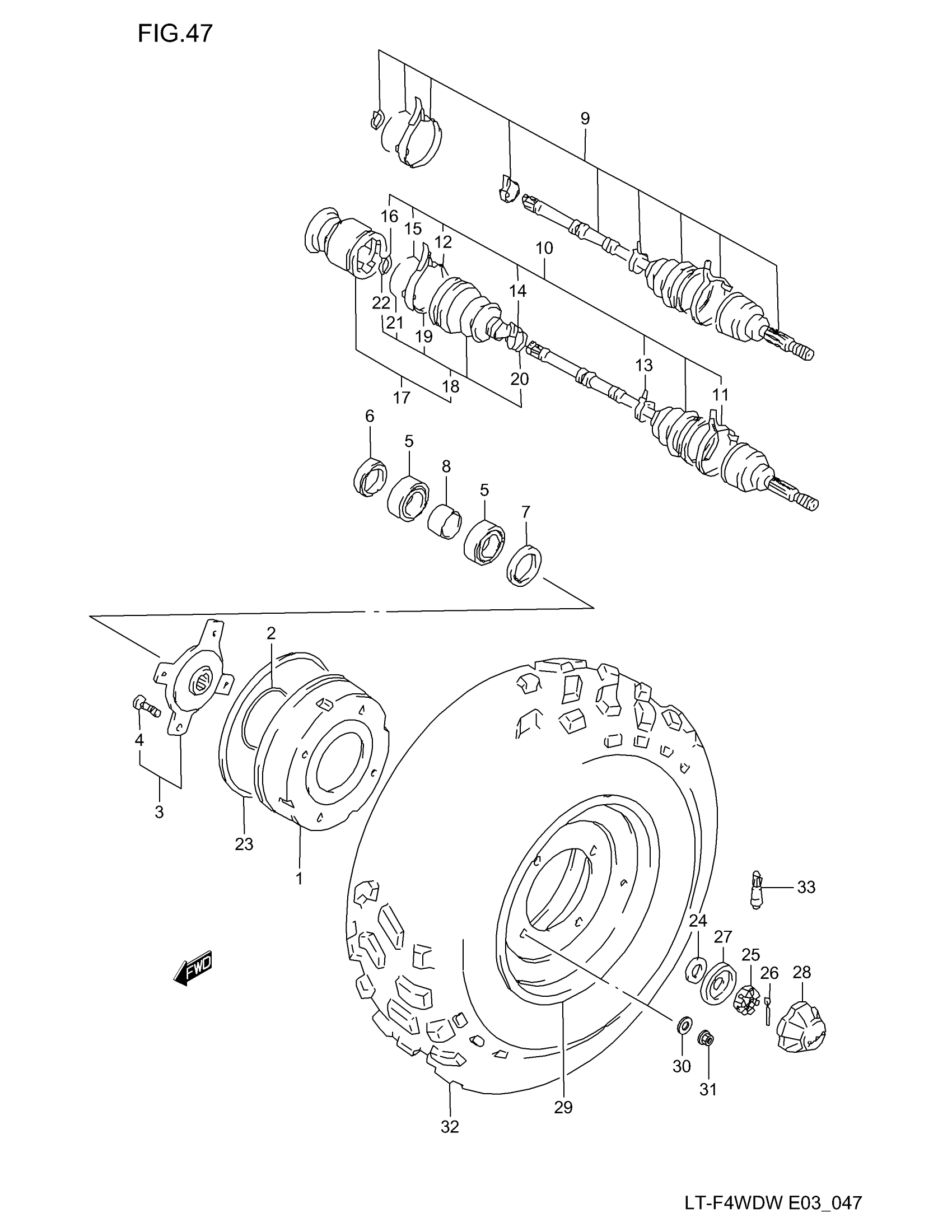

Find the part on the Front Wheel diagram for your 1998 Suzuki LT-F4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Suzuki LT-F4WD Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM, BRAKE

54120-19B10

2
Out of stock

2

O RING (ID:79.8,DD:2.40)

09280-80001

2
Out of stock

3

HUB, FRONT | Includes Item(s) 4

54110-19B01

2
Out of stock

4

BOLT This part replaces 09119-10045.

09119-10045-XC0

8
Out of stock

5

BEARING, FRONT HUB

08123-60067

4
Out of stock

6

DUST SEAL, INNER (38X55X8)

09283-38012

2
Out of stock

7

DUST SEAL, OUTER (38X55X6.4)

09283-38013

2
Out of stock

8

SPACER, FRONT HUB

54731-19B00

2
Out of stock

9

SHAFT ASSY,FRT This part replaces 54918-19B10.

54901-19B13

1
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 54919-19B10.

54902-19B13

1
Out of stock

10

BOOT SET | OUTER BOOT SET; Includes Item(s) 11 - 16 This part replaces 54930-19B11.

54930-19B12

2
Out of stock

11

CLAMP, WHEEL SIDE OUTER BOOT

44121-60DB0

2
Out of stock

12

CLAMP, SIDE OUTER BOOT

44122-86010

2
Out of stock

13

CLAMP, WHEEL SIDE INNER BOOT

44124-60DB0

2
Out of stock

14

CLAMP, SIDE INNER BOOT

44124-50A20

2
Out of stock

15

CIR CLIP

44112-78010

2
Out of stock

16

SNAP RING

27182-70410

2
Out of stock

17

JOINT SET,DIFF | Includes Item(s) 18 - 22 This part replaces 54933-19B13.

54933-19B14

2
Out of stock

18

BOOT SET,DIFF S | INNER BOOT SET This part replaces 54931-19B13.

54931-19B14

2
Out of stock

19

CLAMP, SIDE OUTER BOOT

44122-86010

2
Out of stock

20

CLAMP, SIDE INNER BOOT

44124-50A20

2
Out of stock

21

CIR CLIP

44112-78010

2
Out of stock

22

SNAP RING

27182-70410

2
Out of stock

23

DUST SEAL, DRUM BRAKE

54124-19B10

2
Out of stock

24

WASHER, HUB

09164-18004

2
Out of stock

25

NUT, HUB

09141-18008

2
Out of stock

26

PIN, COTTER This part replaces 04111-40408.

04111-4040A

2
Out of stock

27

HOLDER, CENTER CAP

64726-19B00

2
Out of stock

28

CAP, WHEEL CENTER

54725-39D00

2
Out of stock

29

RIM, FRONT WHEEL (SILVER)

55310-19B11-12R

2
Out of stock

30

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

8
Out of stock

31

NUT This part replaces 08316-10103.

08316-1010B

8
Out of stock

32

TIRE, T/L FRONT (AT22X8-10) (DUNLOP)

55100-19B60

2
Out of stock

33

VALVE ASSY, WHEEL RIM TR413 | ?43130-75150

43130-78030

2
Out of stock
