1998 Suzuki LT-F4WD Knuckle Cover Diagram

← All diagrams

Find the part on the Knuckle Cover diagram for your 1998 Suzuki LT-F4WD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

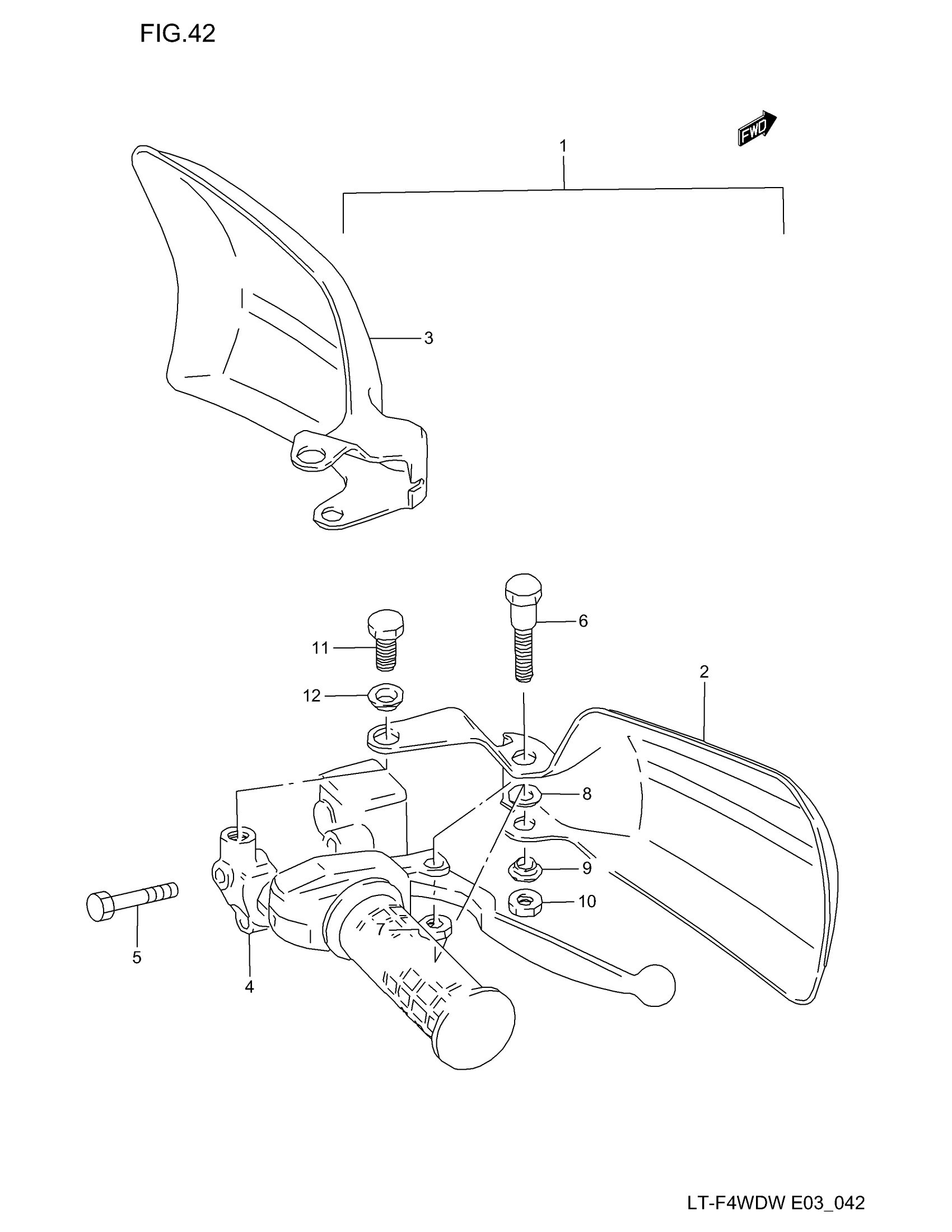

1998 Suzuki LT-F4WD Knuckle Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER SET, KNUCKLE (GREEN) | MODEL V

57300-19811-1AT

1
Out of stock

1

COVER SET, KNUCKLE (BEIGE) | MODEL W; Includes Item(s) 2 - 12

57300-19811-Y5G

1
Out of stock

2

COVER, KNUCKLE RH (GREEN) | MODEL V

57341-19B50-1AT

1
Out of stock

2

COVER SET, KNUCKLE (BEIGE) | MODEL W This part replaces 57341-19B50-Y5G.

57300-19811-Y5G

1
Out of stock

3

COVER, KNUCKLE LH (GREEN) | MODEL V

57541-19B50-1AT

1
Out of stock

3

COVER, KNUCKLE LH (BEIGE) | MODEL W

57541-19B50-Y5G

1
Out of stock

4

1

$19.60

In stock

5

1

$2.92

In stock

6

BOLT, LEVER PIVOT | MODEL V

09104-10036

2
Out of stock

6

2

$8.97

In stock

7

2

$2.08

In stock

7

NUT | MODEL W

09159-06015

2

$2.08

In stock

8

WASHER

09160-06019

2
Out of stock

9

WASHER

09169-06033

2

$1.81

In stock

10

2

$2.08

In stock

10

NUT | MODEL W

09159-06015

2

$2.08

In stock

11

BOLT, MIRROR STAY | MODEL V

01204-10127

2
Out of stock

11

BOLT, MIRROR STAY | MODEL W

09104-10036

2
Out of stock

12

WASHER,KNUCKLE COVER UPPER,L This part replaces 09169-10010.

09169-10024

2
Out of stock
