2012 Suzuki LT-F400FL2 Transmission Diagram

← All diagrams

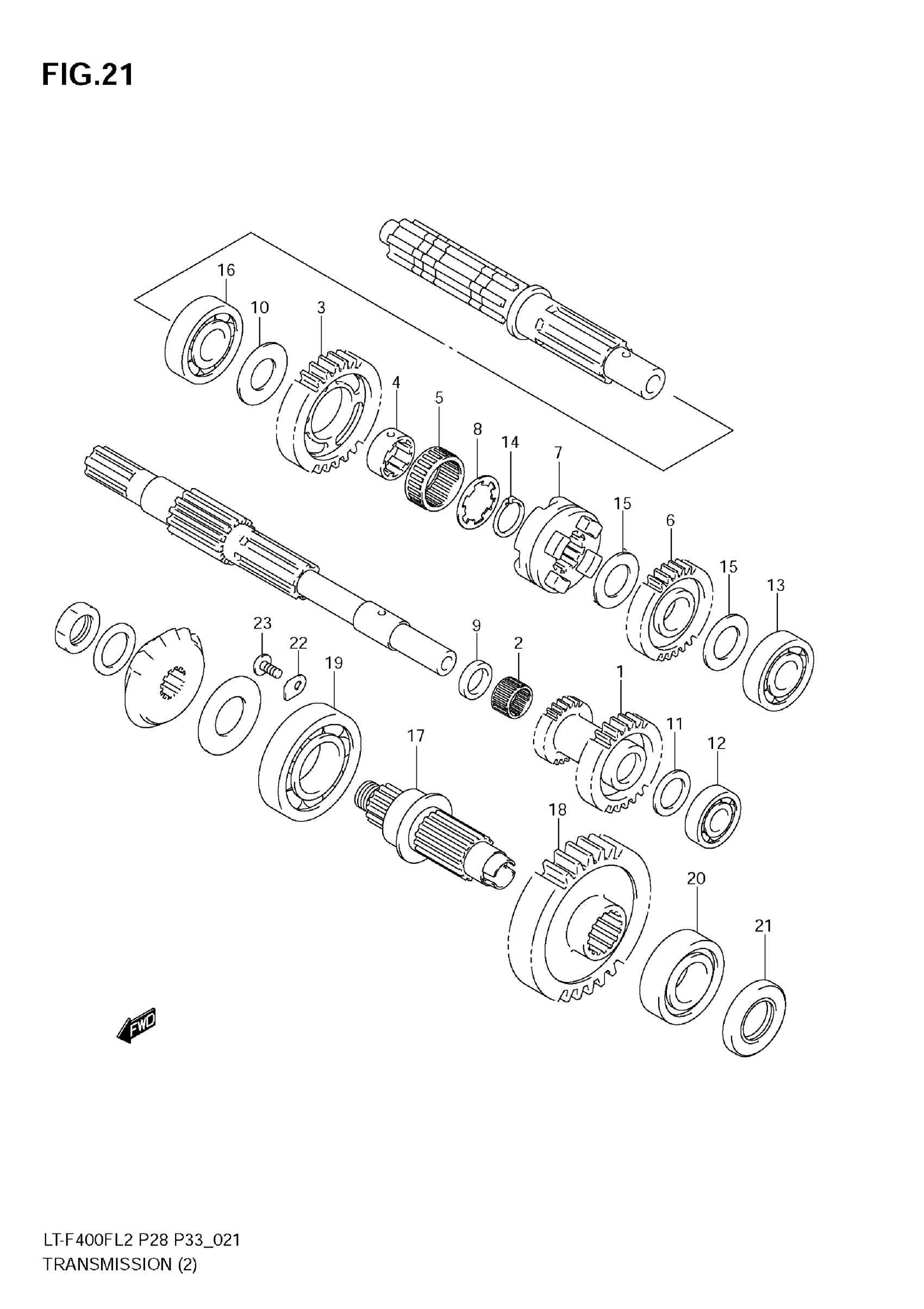

Find the part on the Transmission diagram for your 2012 Suzuki LT-F400FL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-F400FL2 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, SUB T/M IDLE | NT:19/13

29150-38F80

1
Out of stock

2

BEARING (17X21X12.8)

09263-17001

1
Out of stock

3

GEAR, SUB T/M DRIVE NO.1 | NT:27

29211-38F80

1
Out of stock

4

BUSH,SUB T/M DRIVE NO.1 GEAR

29215-38F80

1
Out of stock

5

BEARING (30X35X16)

09263-30056

1
Out of stock

6

GEAR, SUB T/M DRIVE NO.2 | NT:21

29220-38F50

1
Out of stock

7

DOG,SUB T/M SELECT SLIDING

29231-38F80

1
Out of stock

8

WASHER

09167-25017

1
Out of stock

9

SPACER (17X24X4.5)

09180-17076

1
Out of stock

10

SHIM (25X40X1)

09181-25251

1
Out of stock

11

SHIM (15X26X1)

09181-15195

1
Out of stock

12

BEARING This part replaces 09262-15022.

09262-15062

1
Out of stock

13

BEARING (20X47X14)

09262-20139

1
Out of stock

14

SNAP RING

09380-25003

1
Out of stock

15

WASHER

08211-20301

2
Out of stock

16

BEARING (25X52X14)

09262-25124

1
Out of stock

17

SHAFT,SUB T/M OUTPUT

29121-38F60

1
Out of stock

18

GEAR, SUB T/M DRIVEN | NT:35

29311-38F60

1
Out of stock

19

BEARING (35X72X17)

09262-35038

1
Out of stock

20

BEARING (25X52X13)

09262-25136

1
Out of stock

21

SEAL,OIL (25X45X5)

09283-25076

1
Out of stock

22

RETAINER, SEC DRIVE SFT

24741-21A00

2
Out of stock

23

SCREW (6X12)

09125-06122

2
Out of stock
