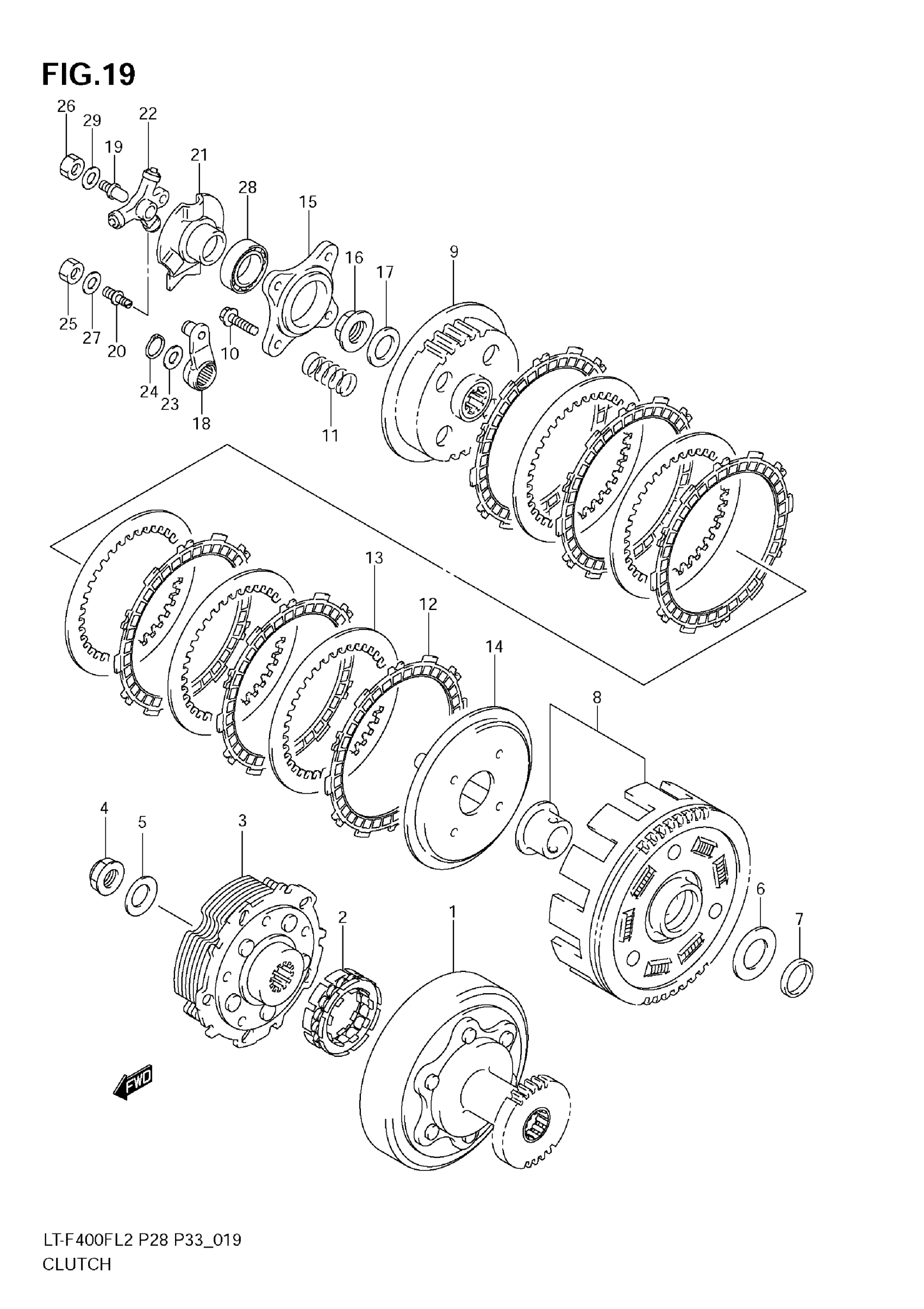

Suzuki LT-F400FL2 (2012) CLUTCH Diagram

#

Description
Price

1

HOUSING, STARTER CLUTCH

21120-27H50

$355.20

2

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

$126.97

3

SHOE,STARTER CLUTCH

21500-27H50

$455.15

4

NUT,STARTER CLUTCH SHOE

21518-44D00

$12.94

5

WASHER

09164-20007

$5.00

6

SPACER (22X28X3.5)

09180-22045

Unavailable

7

WASHER

08211-22423

$4.35

8

GEAR ASSY, PRIMARY DRIVEN

21200-38850

$225.23

9

HUB, CLUTCH SLEEVE

21411-44D00

$159.27

10

BOLT (6X25)

09103-06099

$2.43

11

SPRING,CLUTCH

21413-38F50

$9.17

12

PLATE, CLUTCH DRIVE

21441-44D00

$31.45

13

PLATE,CLUTCH DRIVEN (T:1.6)

21451-44D00

$10.33

14

DISK,CLUTCH PRESSURE

21462-44D00

Unavailable

15

PLATE, CLUTCH RELEASE

21465-44D00

$26.67

16

NUT,CLUTCH SLEEVE HUB

21414-44D00

$17.02

17

WASHER

09164-20007

$5.00

18

ARM,CLUTCH RELEASE

23220-03G50

Unavailable

19

BOLT, CLUTCH RLSE ADJ NO.1

23223-44D11

$9.35

20

BOLT, CLUTCH RLSE ADJ NO.2

23224-44D00

$7.57

21

GUIDE,CL RELEASE ROLLER

23230-03G50

$67.57

22

ROLLER ASSY,CLUTCH RELEASE

23250-03G50

Unavailable

23

WASHER

08211-10242

$4.15

24

CIRCLIP

08331-3114A

$1.89

25

NUT

09140-06023

$2.07

26

NUT

09140-08017

$2.12

27

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.45

28

BEARING

08113-69050

$32.64

29

WASHER (8X20X1)

09160-08103

$1.34
