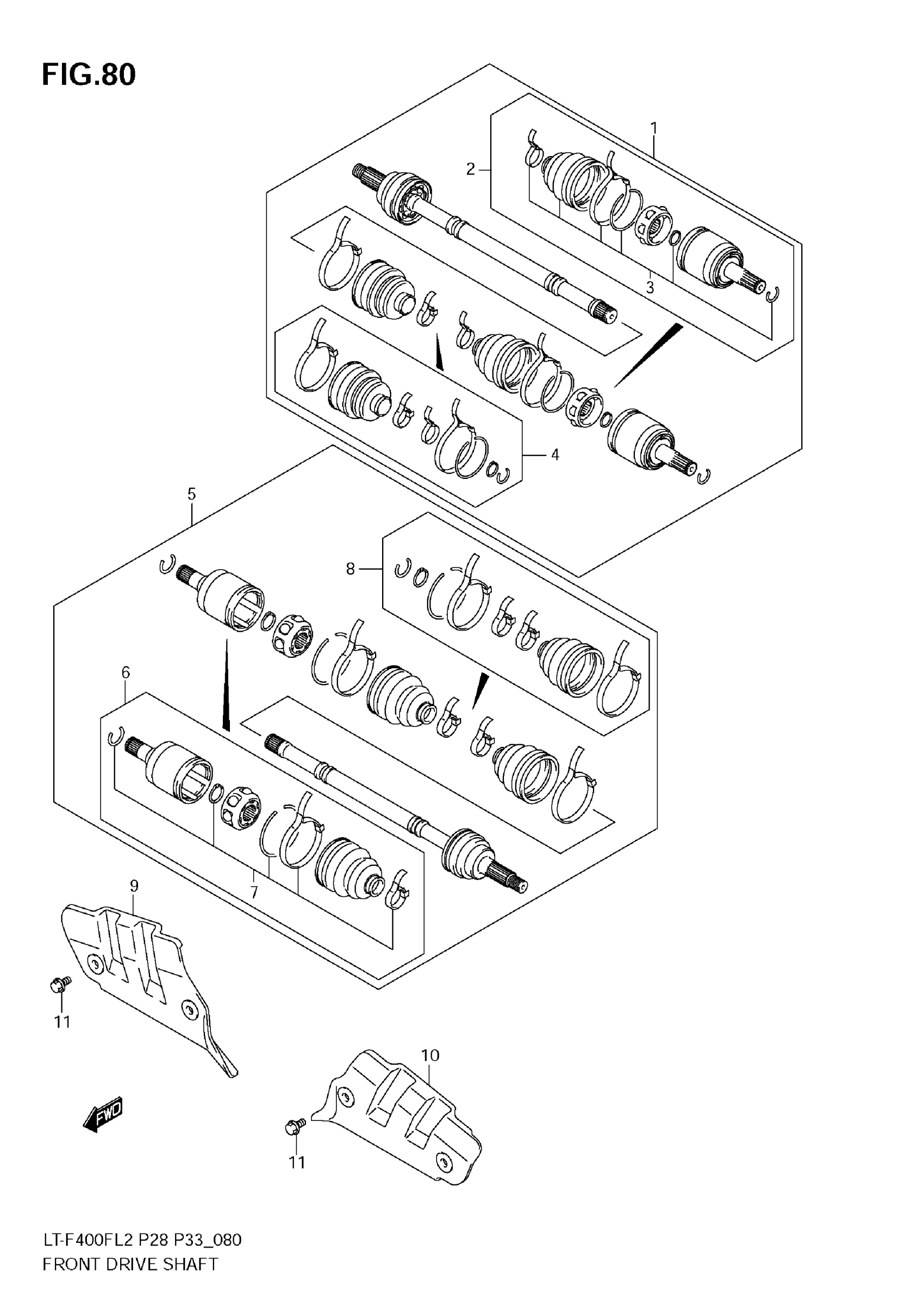

Suzuki LT-F400FL2 (2012) FRONT DRIVE SHAFT Diagram

#

Description
Price

1

SHAFT ASSY, FRONT DRIVE RH This part replaces 54901-27H00.

54901-27H01

$475.95

2

.JOINT SET This part replaces 54933-38F13.

54933-38F14

$226.25

3

..BOOT SET, INNER This part replaces 54931-38F13.

54931-38F14

$117.22

4

.BOOT SET, OUTER This part replaces 54930-27H00.

54930-27H01

$158.77

5

SHAFT ASSY, FRONT DRIVE LH This part replaces 54902-27H00.

54902-27H01

$451.55

6

.JOINT SET This part replaces 54933-38F13.

54933-38F14

$226.25

7

..BOOT SET, INNER This part replaces 54931-38F13.

54931-38F14

$117.22

8

.BOOT SET, OUTER This part replaces 54930-27H00.

54930-27H01

$158.77

9

PROTECTOR,FRONT DRIVE SHAFT,R This part replaces 54903-27H00.

54903-27H01

$15.87

10

PROTECTOR,FR D/ This part replaces 54904-27H00.

54904-27H00-291

$18.12

11

BOLT (6X12)

09111-06085

$4.16
