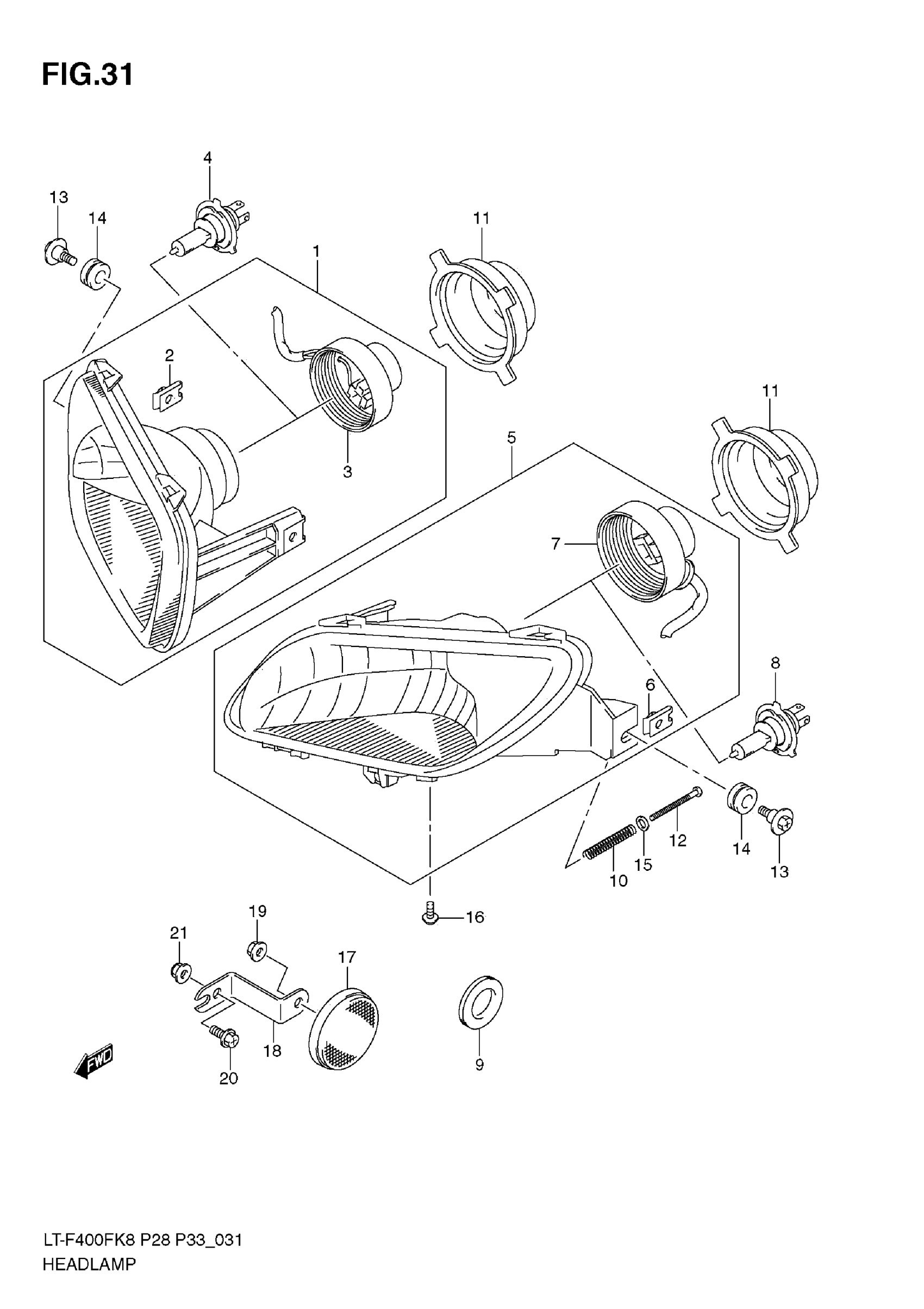

Find the part on the Headlamp diagram for your 2010 Suzuki LT-F400FK9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki LT-F400FK9 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY, R

35100-31G90-999

—
Out of stock

2

NUT (M6)

35157-31G90

2
Out of stock

3

CORD ASSY, R

35171-31GM1

1
Out of stock

4

BULB (12V35/35W,HS1)

09471-12101

1
Out of stock

5

HEADLAMP ASSY LH This part replaces 35300-31G90-999.

35300-31G92-999

1
Out of stock

6

NUT (M6)

35157-31G90

2
Out of stock

7

CORD ASSY, L

35171-31GH1

1
Out of stock

8

BULB (12V35/35W,HS1)

09471-12101

1
Out of stock

9

GROMMET

09308-07011

2
Out of stock

10

SPRING, HEADLAMP ADJUST

35154-31300

2
Out of stock

11

COVER,HEADLAMP HOUSING

35174-31G00

2
Out of stock

12

SCREW, HEADLAMP ADJUST | 4X50

09125-04031

2
Out of stock

13

SCREW, HEADLAMP | 6X22.5

09139-06118

4
Out of stock

14

CUSHION

09320-10501

4
Out of stock

15

WASHER, HEADLAMP

08322-0104A

2
Out of stock

16

SCREW (5X16)

09136-05046

2
Out of stock

17

REFLEX REFLECTOR ASSY, FR SID | E28 This part replaces 35950-14A10.

35950-14A11

2
Out of stock

18

BRACKET,FRONT SIDE RR | E28

35956-27H00

2
Out of stock

19

NUT, FR SIDE RR | E28

08316-1005B

2
Out of stock

20

SCREW, FR SIDE RR BRKT | E28

02162-0516B

2
Out of stock

21

NUT, FR SIDE RR BRKT | E28

08319-3105B

2
Out of stock
