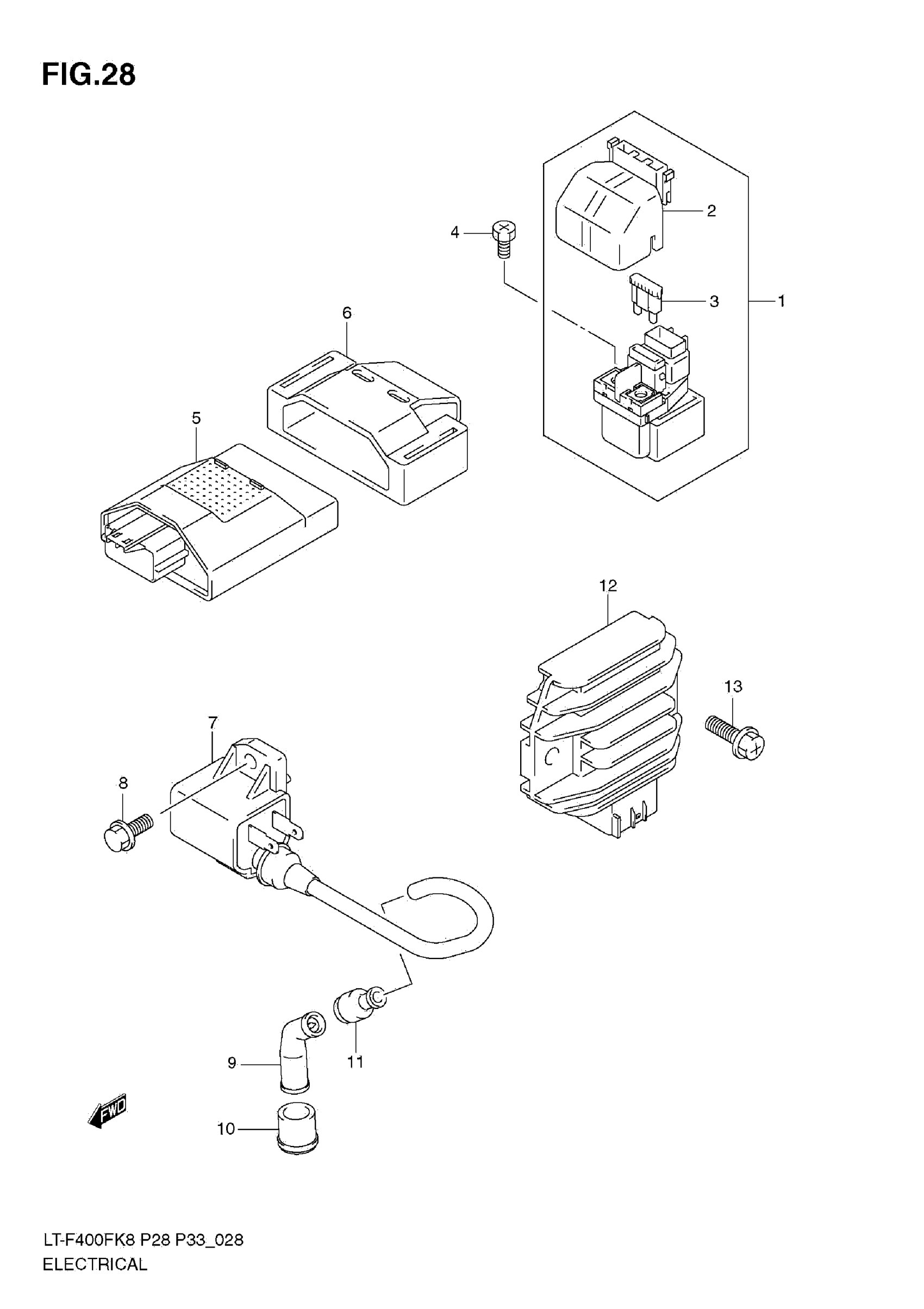

Suzuki LT-F400FK9 (2010) ELECTRICAL (MODEL K8/K9) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-38G10

$89.07

2

COVER, STARTER RELAY

31861-38G00

$5.52

3

FUSE (30A)

09481-30501

$2.34

4

BOLT, STARTING MOTOR TERM | 6X8

09128-06013

$1.24

5

CDI UNIT

32900-27H00

Unavailable

6

CUSHION, CDI

32980-27H00

Unavailable

7

COIL ASSY, IGNITION

33410-41D20

$87.46

8

BOLT

01550-0616B

$2.53

9

CAP, SPARK PLUG

33510-43010

$22.88

10

SEAL, SPARK PLUG

33541-44D00

$4.85

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

12

RECTIFIER ASSY

32800-38F10

$292.50

13

BOLT

02162-0625B

$1.46
