2010 Suzuki LT-F400FK9 Electrical Diagram

← All diagrams

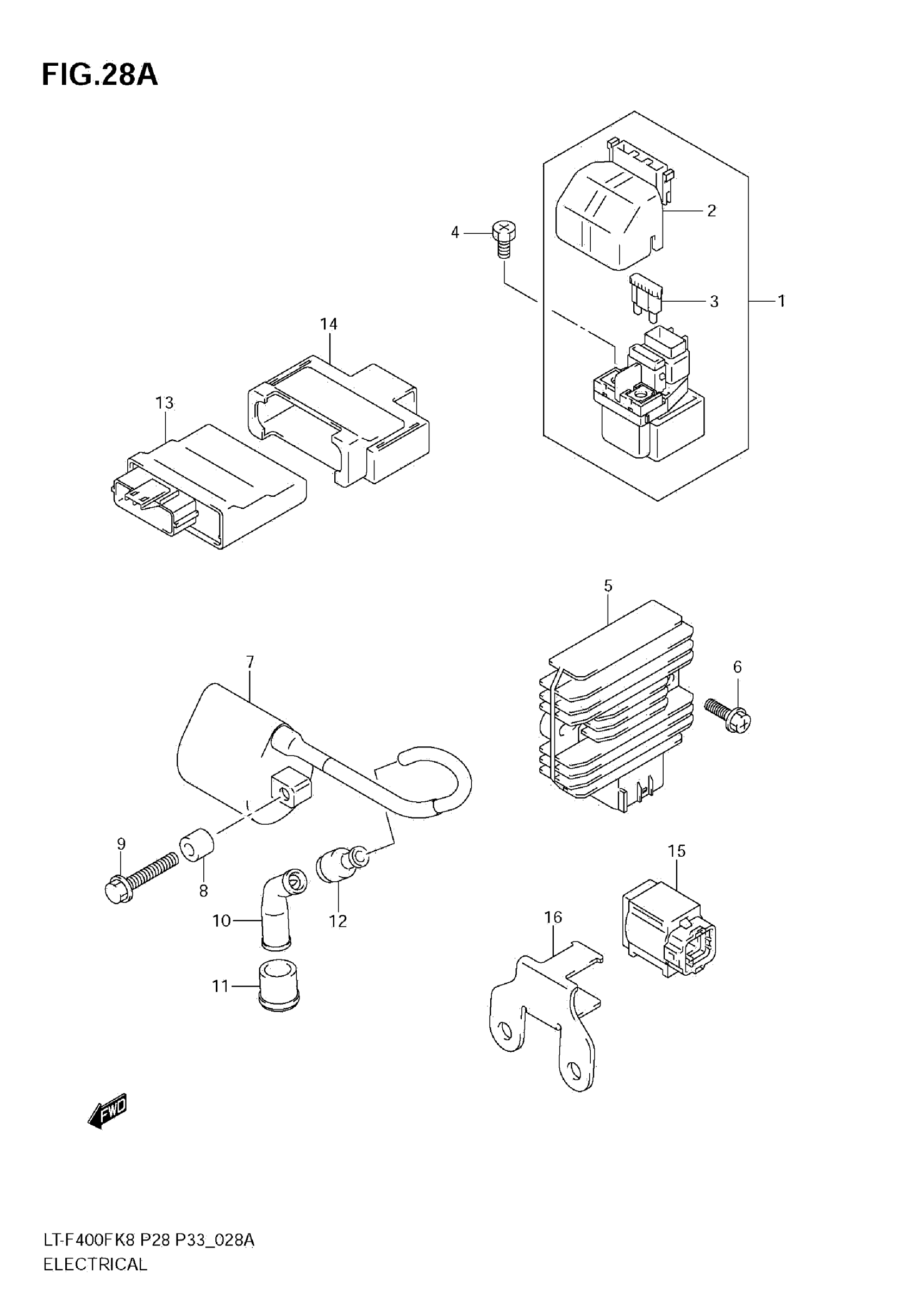

Find the part on the Electrical diagram for your 2010 Suzuki LT-F400FK9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki LT-F400FK9 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR

31800-38G10

1
Out of stock

2

COVER

31861-38G00

1
Out of stock

3

FUSE (30A)

09481-30501

2
Out of stock

4

BOLT (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-20H00

1

$354.87

In stock

6

BOLT

02162-0625B

2

$2.65

In stock

7

COIL ASSY,IGNITION This part replaces 33410-26G00.

33410-26G01

1
Out of stock

8

SPACER, IGNITION COIL

09180-06095

2
Out of stock

9

BOLT

01547-0630B

2
Out of stock

10

CAP, SPARK PLUG

33510-43010

1
Out of stock

11

SEAL, SPARK PLUG

33541-44D00

1
Out of stock

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

1
Out of stock

13

CONTROL UNIT, FI

32920-27H10

—
Out of stock

14

1

$14.55

In stock

15

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock

16

BRACKET,FUEL CUT SENSOR

33961-27H00

1
Out of stock
