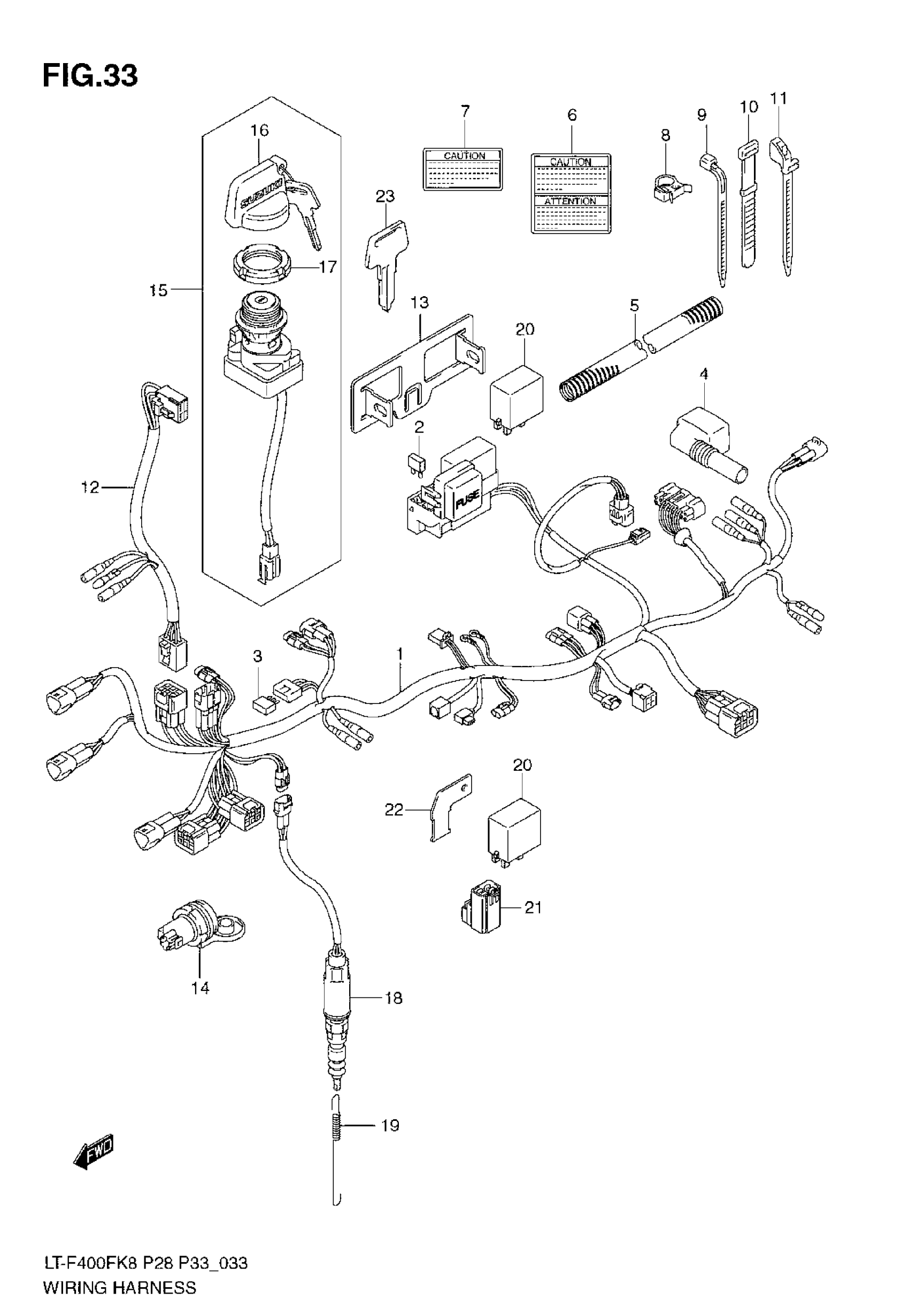

Suzuki LT-F400F (2009) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS WIRING | Includes Item(s) 2 - 4

36610-27H50

$455.68

2

FUSE (10A)

09481-10501

$2.07

3

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

4

BOOT, ECU COUPLER

36618-35F00

$11.37

5

GUIDE,WIRING HARNESS

36619-27H00

Unavailable

6

LABEL, CAUTION MAX AMP | E28

38852-03G10

Unavailable

7

LABEL, CAUTION MAX AMP

38852-09F30

Unavailable

8

CLAMP (D:20)

09403-20403

$4.00

8

CLAMP (D:25)

09403-25401

Unavailable

9

CLAMP (L:125)

09407-14403

$2.24

9

CLAMP (L:165)

09407-18402

$2.21

9

CLAMP (L:235)

09407-25401

$4.21

10

CLAMP

09407-12402

$2.80

11

CLAMP

09407-12407

Unavailable

12

WIRE, FRONT BRAKE SW

36855-27H00

$55.55

13

BRACKET,FUSE BOX

36744-38F00

$12.83

14

TERMINAL,POWER SOURCE (12V,12

38850-03G10

$16.30

15

SWITCH ASSY,IGNITION | Includes Item(s) 16 - 17 This part replaces 37110-38F00.

37110-38F01

$75.25

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

17

.NUT,IGNITION SWITCH

37112-24500

$12.60

18

SWITCH ASSY,STOP LAMP

37740-38F01

$129.47

19

SPRING, STOP LAMP

09443-06016

$3.58

20

RELAY,NEUTRAL START

38730-09F00

$42.62

21

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

22

BRACKET, GEAR IN START

38741-09F00

Unavailable

23

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

23

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38

23

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$7.38

23

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$7.38
