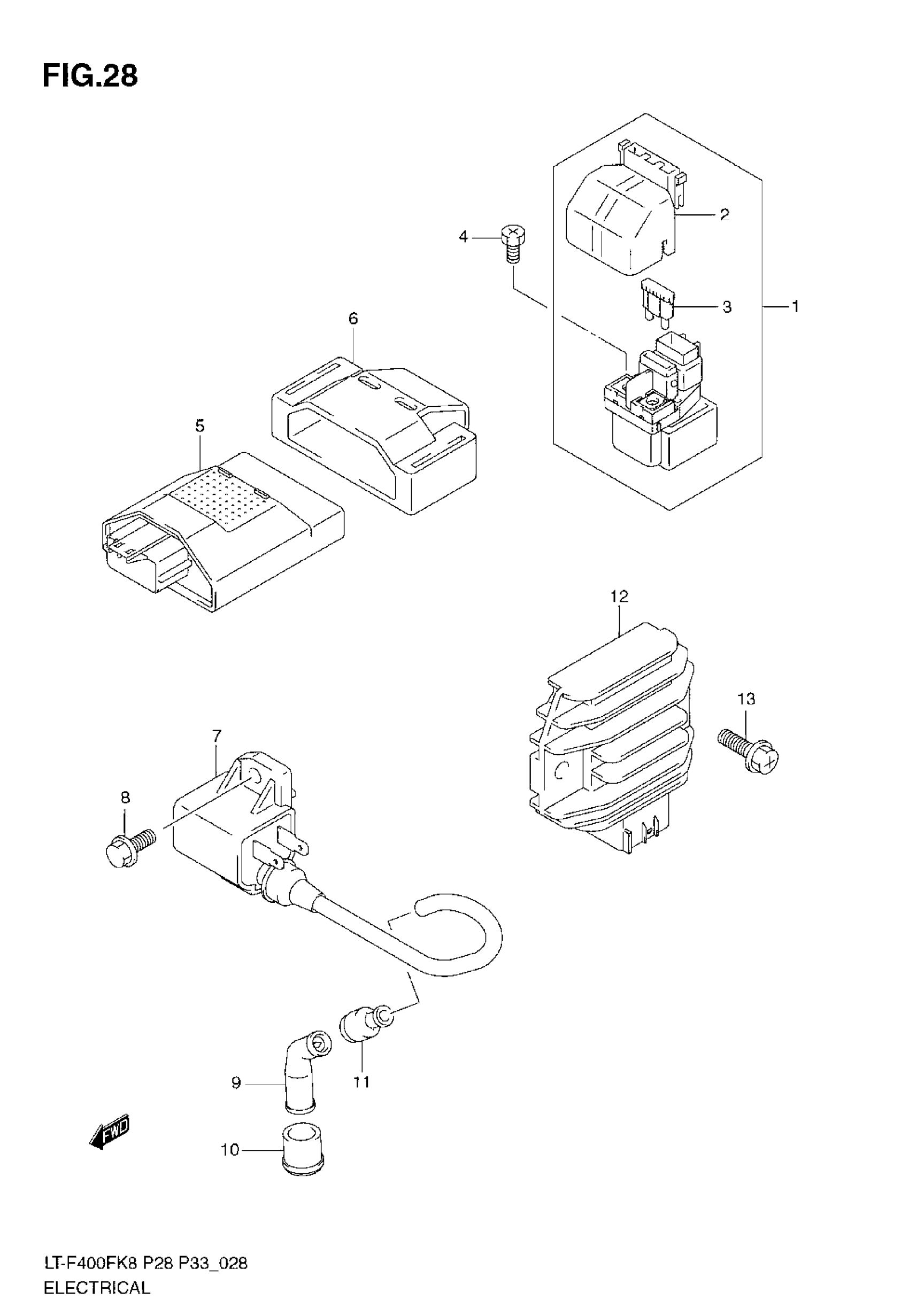

Suzuki LT-F400F (2009) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3

31800-38G10

$93.08

2

COVER, STARTER RELAY

31861-38G00

$5.52

3

FUSE, 30A

09481-30501

$2.42

4

BOLT, STARTING MOTOR TERM

09128-06013

$1.28

5

CDI UNIT

32900-27H00

Unavailable

6

CUSHION, CDI

32980-27H00

Unavailable

7

COIL ASSY, IGNITION

33410-41D20

$90.95

8

BOLT

01550-0616B

$2.53

9

CAP, SPARK PLUG

33510-43010

$23.90

10

SEAL, SPARK PLUG

33541-44D00

$5.07

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

12

RECTIFIER ASSY

32800-38F10

$292.50

13

BOLT

02162-0625B

$2.65
