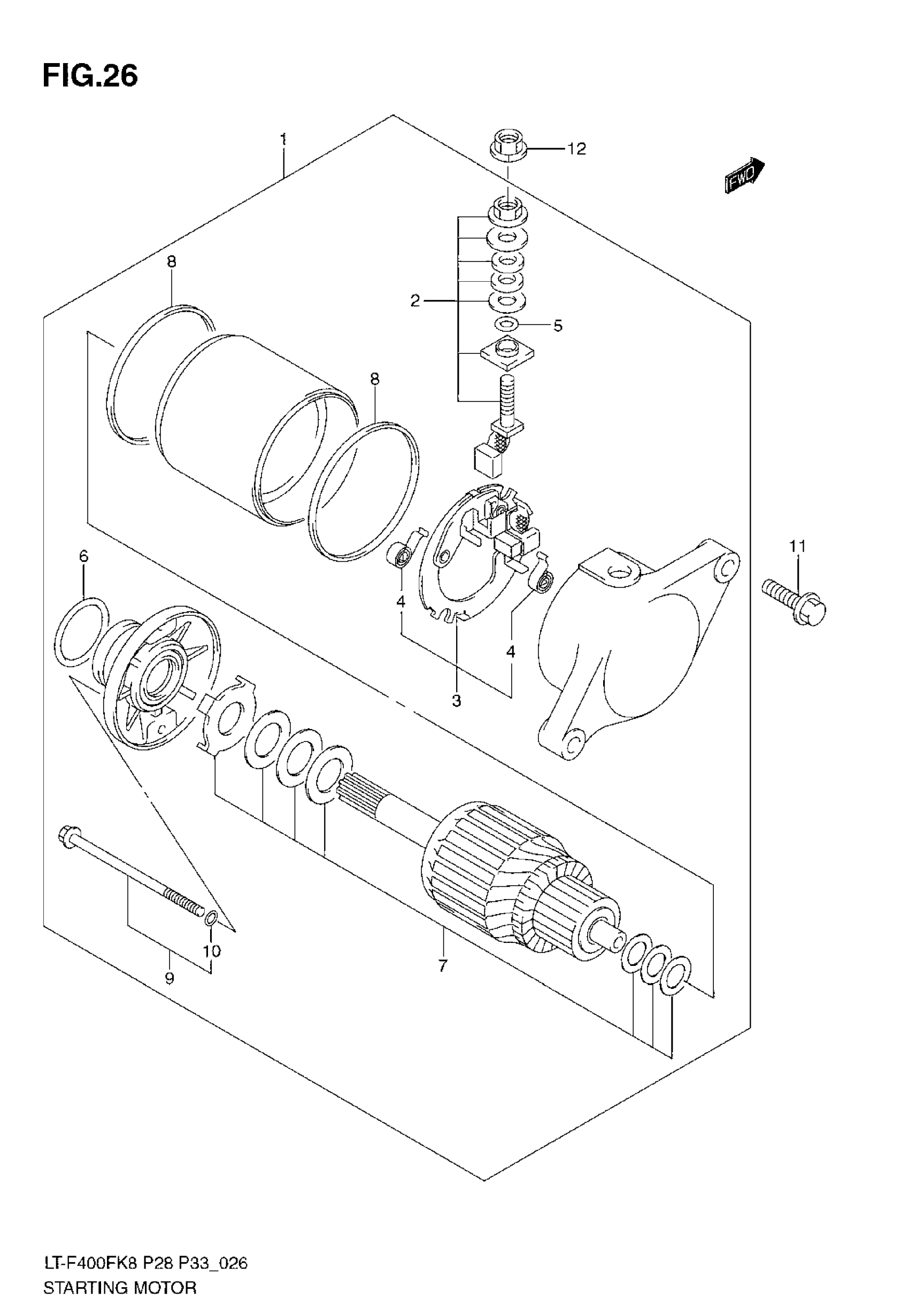

Suzuki LT-F400F (2009) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-38F00

$471.35

2

BRUSH TERMINAL SET | W/A BRUSH

31130-13E00

$42.27

3

BRUSH HOLDER SET | W/B BRUSH

31132-13E00

$54.28

4

SPRING, BRUSH

31135-31300

$6.57

5

O RING

31143-49040

$4.92

6

.O-RING (D:3,ID:24.5)

09280-24003

$1.61

7

WASHER SET

31170-19B10

$14.18

8

O RING

31264-13E00

$6.57

9

BOLT

31280-13E00

$23.08

10

O RING

31156-13E00

$4.92

11

BOLT, STARTING MOTOR (6X25)

09103-06212

$2.53

12

NUT

08361-3506A

$1.88
