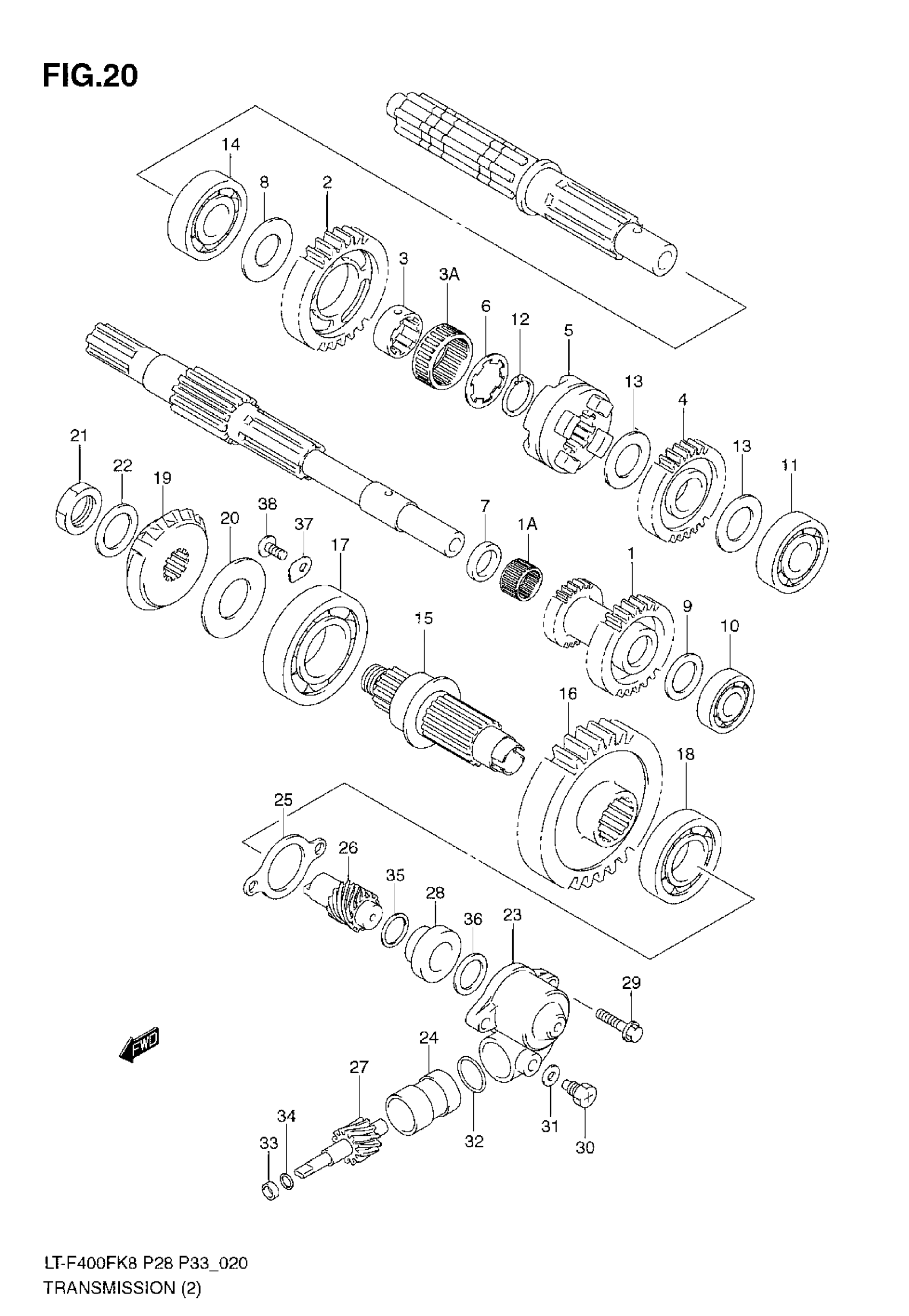

Suzuki LT-F400F (2009) TRANSMISSION (2) Diagram

#

Description
Price

1

GEAR, SUB T/M IDLE | NT:19/13

29150-38F80

$210.63

1A

BEARING, SUB T/M IDLE GEAR, R | 17X21X12.8

09263-17001

$23.70

2

GEAR, SUB T/M DRIVE NO.1 | NT:27

29211-38F80

Unavailable

3

BUSH,SUB T/M DRIVE NO.1 GEAR

29215-38F80

$36.98

3A

BEARING, SUB T/M DRIVE NO.1 GEAR | 30X35X16

09263-30056

$37.13

4

GEAR, SUB T/M DRIVE NO.2 | NT:21

29220-38F50

$145.27

5

DOG,SUB T/M SELECT SLIDING

29231-38F80

Unavailable

6

WASHER, SUB T/M DRIVE, L

09167-25017

$4.20

7

WASHER, SUB T/M IDLE, R | 17X24X4.5

09180-17076

$10.42

8

WASHER, SUB T/M DRIVE | 25X40X1

09181-25251

$1.26

9

WASHER, SUB T/M IDLE, LH | 15X26X1.0

09181-15195

$2.59

10

BEARING | 15X42X13.0 This part replaces 09262-15022.

09262-15062

$19.90

11

BEARING, DRIVE SHAFT, LH | 20X47X14.0

09262-20139

$48.87

12

SNAP RING

09380-25003

$2.80

13

WASHER, DR NO.2 RH/LH

08211-20301

$2.97

14

BEARING, MIDDLE (25X52X14)

09262-25124

$35.35

15

SHAFT, SUB T/M OUTPUT

29121-38F51

Unavailable

16

GEAR, SUB T/M DRIVEN | NT:35

29311-38F51

Unavailable

17

BEARING, SUB T/M, RH | 35X72X17.0

09262-35038

$42.19

18

BEARING, SUB T/M, LH | 20X52X15.0

09262-20073

$21.00

19

GEAR, SEC DRIVE BEVEL GEAR | NT:15

24911-44D11

$248.41

20

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55 0.58/0.60/0.63/0.65 0.68/0.70/0.73/0.75 0.78/0.80/0.83/0.85 0.88/0.90/0.93/0.95 0.98/1.00/1.03/1.05 1.08/1.10/1.13/1.15 1.18/1.20/1.23/1.25 1.28/1.30

24935-03811

$150.17

21

NUT, SEC DRIVE BEVEL

09140-20012

$4.70

22

WASHER, SEC DRIVE BEVEL | 20.1X32X1.0

09181-20223

$2.80

23

HOUSING, ODOMETER GEAR

26441-19B01

$71.65

24

SLEEVE

26442-19B00

$45.52

25

GASKET, ODOMETER

26451-19B12

$4.32

26

GEAR, ODOMETER DRIVE

26461-44D00

Unavailable

27

GEAR, ODOMETER DRIVEN

26471-44D00

Unavailable

28

SPACER, ODOMETER DRIVE GEAR

26481-19B00

Unavailable

29

BOLT, GEAR SLEEVE

09103-06201

$2.54

30

BOLT, GEAR (6X10)

09135-06501

$2.80

31

WASHER (6.2X11X1.2)

09168-06004

$1.43

32

O RING (ID:16.6,DD:1.9)

09280-17004

$3.98

33

SEAL, ODOMETER (5X12X8)

09283-05001

$12.58

34

WASHER

08211-08151

$1.42

35

WASHER

08211-15201

$2.58

36

WASHER

08211-17241

$2.53

37

RETAINER, SEC DRIVE SFT

24741-21A00

$2.80

38

SCREW (6X12)

09125-06110

$2.13
