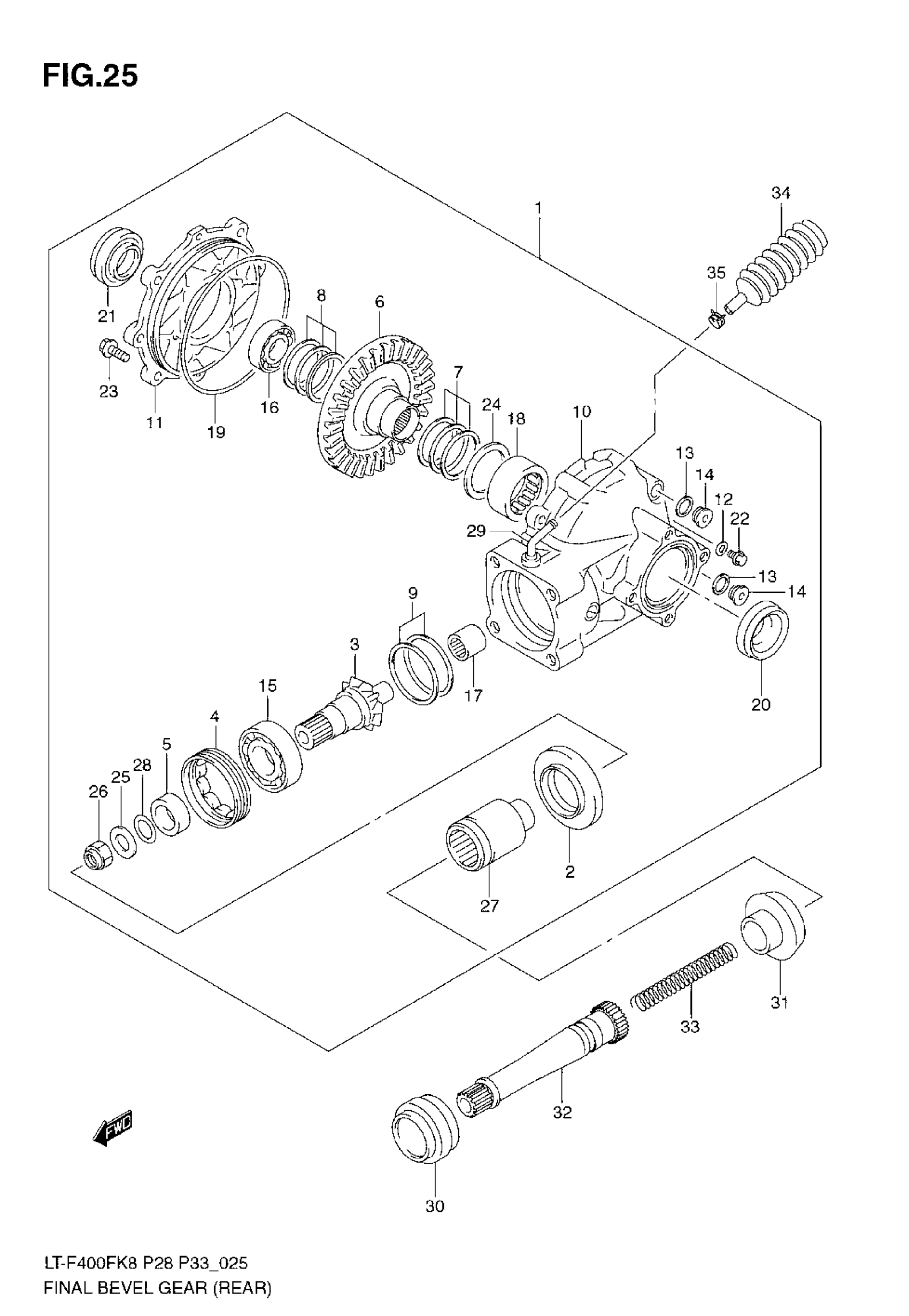

Suzuki LT-F400F (2009) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

CASE ASSY, REAR FINAL | Includes Item(s) 2 - 29

27410-38F50

$1,863.65

2

SEAL, FINAL DR BRG

27156-27H00

$27.00

3

GEAR, FINAL DRIVEN BEVEL

27311-27HM0

$323.32

4

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$59.52

5

SPACER, RR FINAL DR GR

27316-38FM0

$30.92

6

GEAR, FINAL DRIVEN BEVEL

27321-27HM0

$388.27

7

SHIM SET, FINAL DRIVEN, LH | T:0.30/0.35/0.40/0.50 0.60

27326-09810

$17.23

8

SHIM SET, FINAL DRIVEN, RH | T:0.30/0.35/0.40/0.50 0.60

27326-18810

$16.92

9

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50 0.60

27445-24810

$31.82

10

CASE, RR FINAL GR

27450-27HM0

$754.00

11

CASE, RR FINAL DRIVEN, RH

27461-38FM0

Unavailable

12

GASKET, OIL CHECK BOLT | 6.2X13X1.2

09168-06018

$1.70

13

GASKET, OIL DRAIN PLUG | 16X22X2.0

09168-16002

$1.89

14

PLUG, OIL

09248-16012

$4.19

15

BEARING, FINAL DR GEAR

27405-38FN0

$98.00

16

BEARING, FINAL DRIVEN, RH

27405-38FP0

$127.21

17

BEARING, FINAL DR PILOT

27405-38FR0

$70.52

18

BEARING, FINAL DRIVEN, LH

27405-38FS0

$82.08

19

O RING, BEARING CASE, RH

27405-38FT0

$18.80

20

OIL SEAL, FINAL DRIVEN, LH

09283-38009

$13.30

21

OIL SEAL, FINAL DRIVEN, RH

09283-42011

$11.53

22

BOLT, OIL CHECK

27401-38FM0

$4.90

23

BOLT, RR FINAL GR

27401-38FN0

Unavailable

24

WASHER, FINAL DRIVEN, LH

27407-38FN0

$7.06

25

WASHER (16X30X3)

09160-16026

$5.43

26

NUT

09159-16003

$4.33

27

COUPLING, RR FINAL

27171-27HM0

$211.79

28

O RING, COUPLING

27405-27HM0

$46.98

29

UNION, BREATHER

09364-08009

$10.33

30

BOOT,RR PROP SHAFT This part replaces 27153-27H00.

27153-27H01

$5.20

31

BOOT,JOINT SHAFT This part replaces 27153-27H20.

27153-27H21

$12.12

32

SHAFT, RR PROP

27155-27H00

$350.77

33

SPRING,REAR PROPELLER SHAFT

27192-31G10

$5.63

34

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$16.94

35

CLAMP

09401-08411

$1.77
