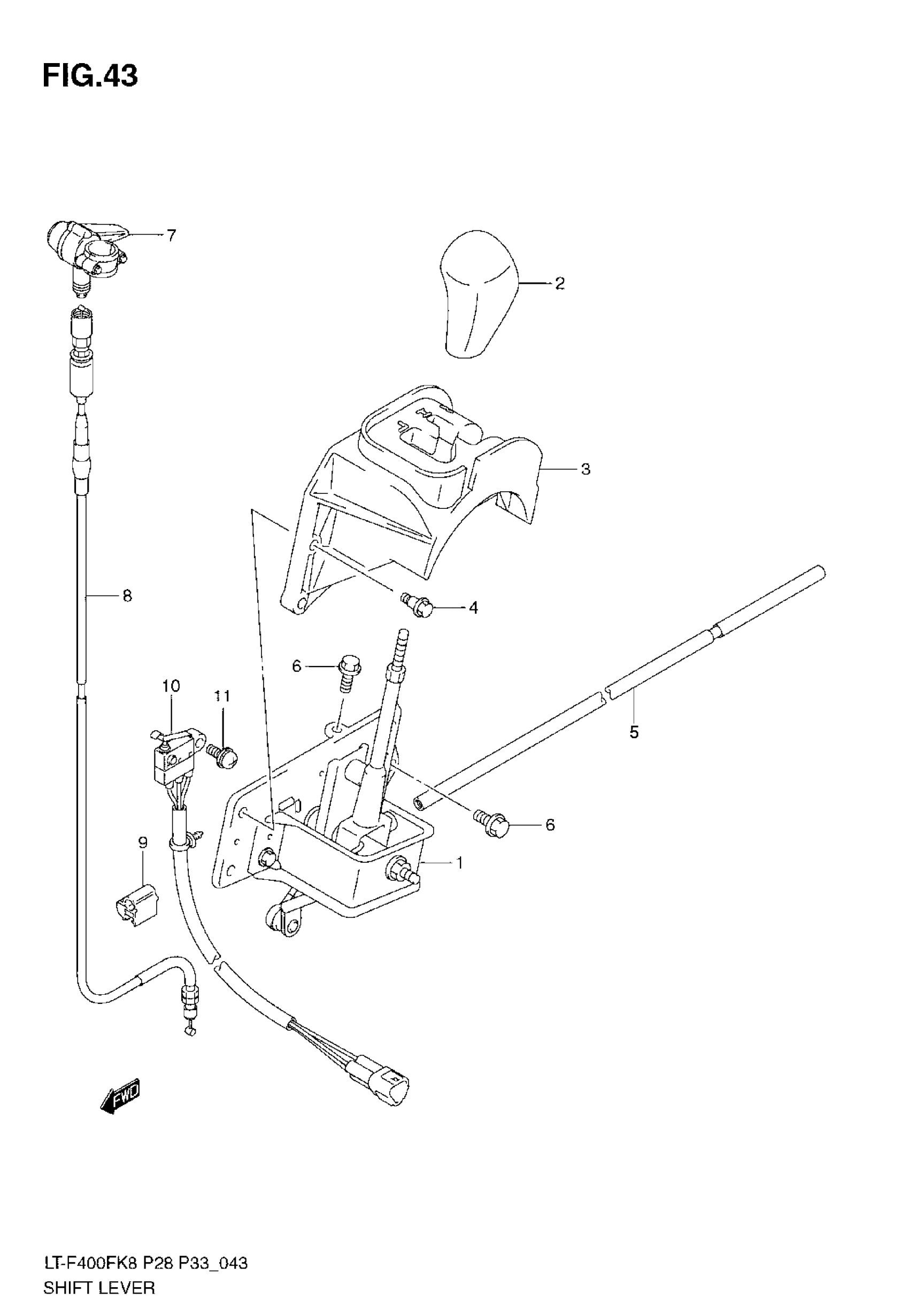

Suzuki LT-F400F (2009) SHIFT LEVER Diagram

#

Description
Price

1

LEVER ASSY, TRANSMISSION

57800-27H00

Unavailable

2

.KNOB,T/M LEVER

57830-27H00

$34.55

3

COVER, T/M LEVER

57941-27H00

Unavailable

4

BOLT

09111-06079

$4.68

5

ROD,T/M LEVER

57911-27H00

Unavailable

6

BOLT (8X16)

01550-0816A

$2.31

7

LEVER, TRANSFER

57920-38F11

$242.93

8

CABLE,TRANSFER SHIFT

58690-27H00

$82.83

9

CLAMP

09403-10405

$3.42

10

.SWITCH ASSY,REVERSE This part replaces 57960-03G10.

57960-03G11

$70.10

11

SCREW

02112-7310A

Unavailable
