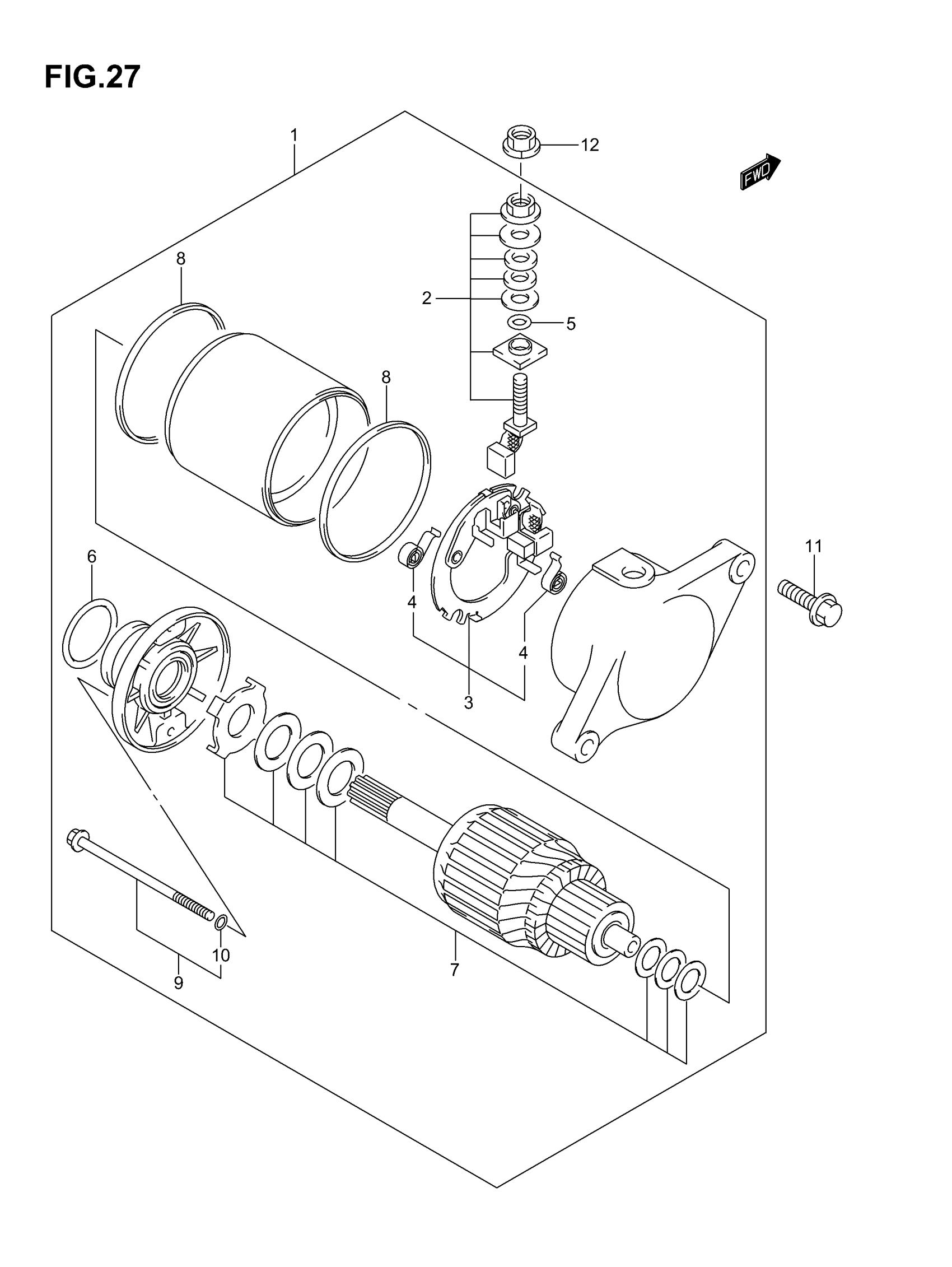

Suzuki LT-F400F (2007) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-38F00

$471.35

2

BRUSH TERMINAL SET | W/A BRUSH

31130-13E00

$40.44

3

BRUSH HOLDER SET | W/B BRUSH

31132-13E00

$51.95

4

SPRING, BRUSH

31135-31300

$6.59

5

O RING

31143-49040

$3.50

6

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

7

WASHER SET

31170-19B10

$14.18

8

O RING

31264-13E00

$6.29

9

BOLT

31280-13E00

$23.08

10

O RING

31156-13E00

$4.92

11

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

12

NUT This part replaces 08361-35068.

08361-3506A

$1.81
