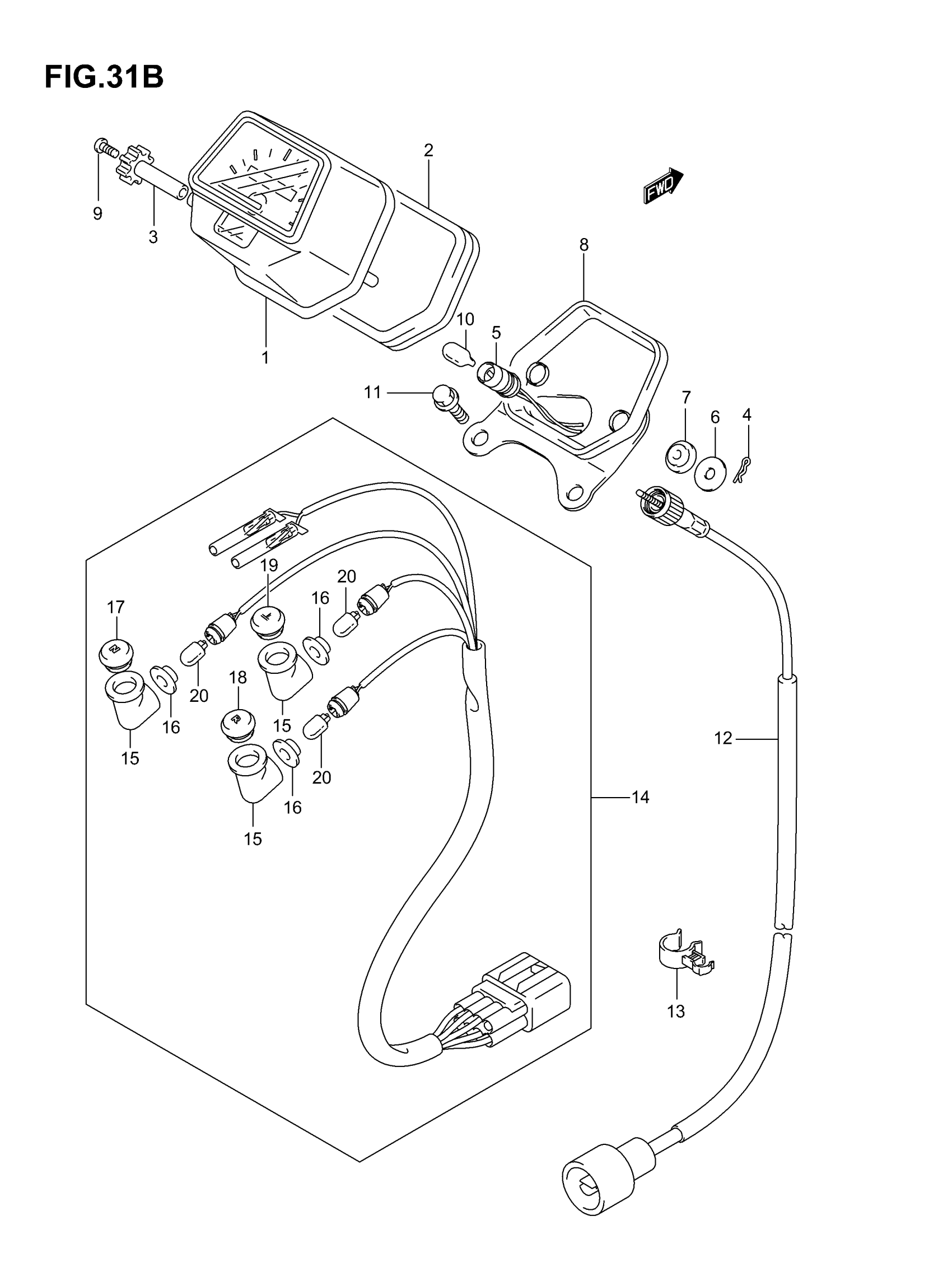

Suzuki LT-F400F (2007) SPEEDOMETER (MODEL K6/K7) Diagram

#

Description
Price

1

SPEEDOMTR ASSY( This part replaces 34110-38F50.

34100-38F50

Unavailable

1

SPEEDOMETER (KILO) | E28 This part replaces 34110-38F40.

34110-38F20

Unavailable

2

DAMPER

34114-38F40

$94.58

3

KNOB

34124-38F40

$10.20

4

SNAP PIN

34136-38F40

Unavailable

5

CORD ASSY

34173-38F40

Unavailable

6

WASHER (5.2X18X1.2) This part replaces 34181-38F40.

34181-09F00

$3.25

7

DAMPER

34188-38F40

Unavailable

8

BRACKET ASSY

34950-38F40

$108.90

9

SCREW (2X6)

09139-02003

$1.43

10

BULB (12V,1.7W)

09471-12165

$4.48

11

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

12

CABLE ASSY,SPEE This part replaces 34910-38F00.

34910-38F02

$47.41

13

CLIP

09408-00198

Unavailable

14

LAMP ASSY,PILOT | Includes Item(s) 15 - 20 This part replaces 36380-38F10.

36380-38F11

$99.78

15

SOCKET

34173-26F00

$4.28

16

RING

34178-26F00

$3.90

17

LENS, NEUTRAL

36321-38F00

$11.62

18

LENS, REVERSE

36329-38F00

$11.83

19

LENS, OIL TEMP

36361-38F00

$11.83

20

BULB (12V,30W,T.6.5)

09471-12103

$3.46
