2002 Suzuki LT-F400F Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2002 Suzuki LT-F400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

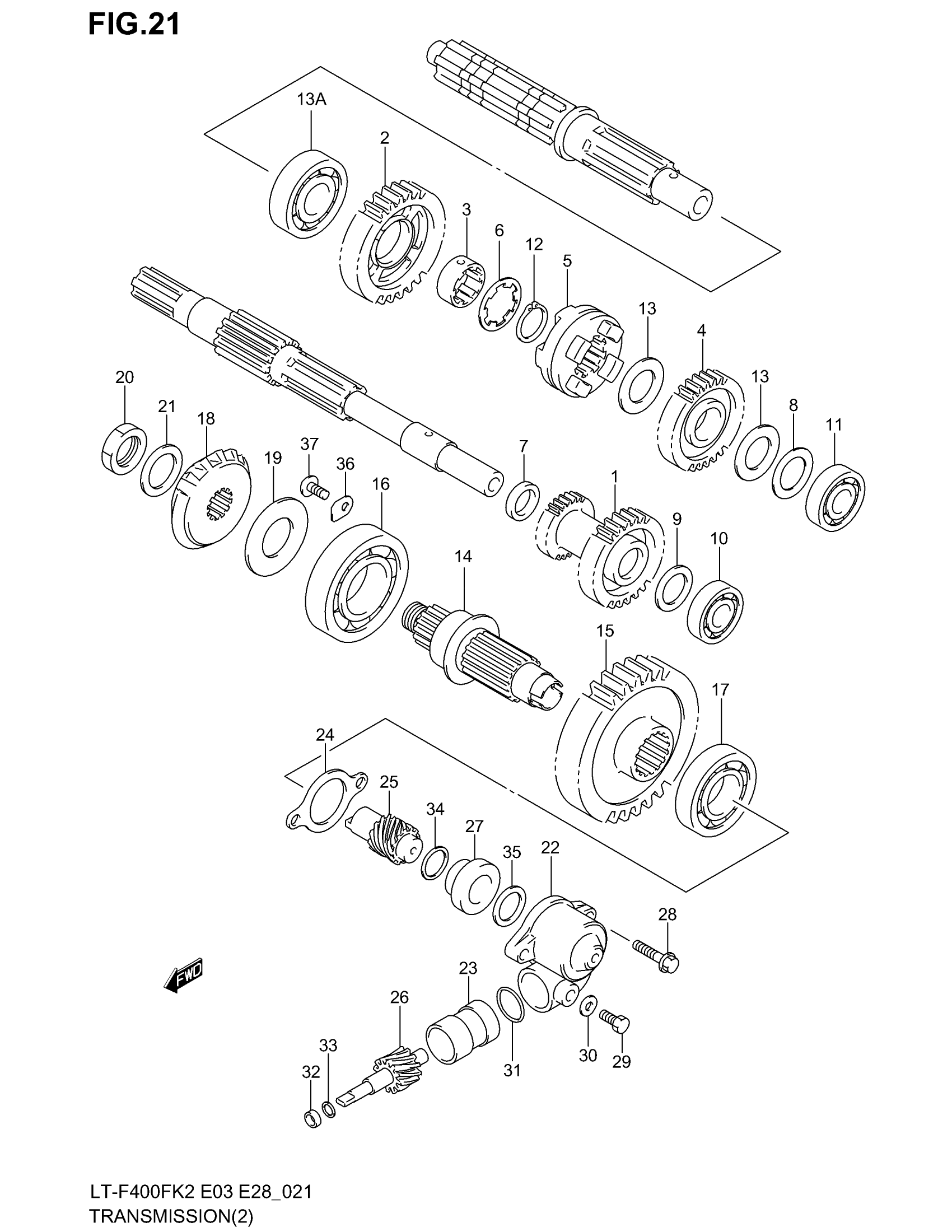

2002 Suzuki LT-F400F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, SUB T/M IDLE | NT:19/13

29150-38F50

1
Out of stock

2

GEAR, SUB T/M DRIVE NO.1 | NT:27

29211-38F50

1
Out of stock

3

BUSH, SUB DRIVE NO.1

29215-38F50

1
Out of stock

4

GEAR, SUB T/M DRIVE NO.2 | NT:21

29220-38F50

1
Out of stock

5

DOG, SUB T/M SLIDING

29231-44D50

1
Out of stock

6

WASHER

09167-25016

1
Out of stock

7

SPACER, SUB T/M IDLE | 17X24X4.5

09180-17076

1
Out of stock

8

SPACER, SUB T/M DRIVE | 25X34X5.5

09180-25083

1
Out of stock

9

WASHER, SUB T/M IDLE, LH | 15X26X1.0

09181-15195

1
Out of stock

10

BEARING | 15X42X13.0 This part replaces 09262-15022.

09262-15062

1
Out of stock

11

BEARING, DRIVE SHAFT, LH | 20X47X14.0 This part replaces 09262-20081.

09262-20139

1
Out of stock

12

SNAP RING

09380-25003

1
Out of stock

13

WASHER, DR NO.2

08211-20301

2
Out of stock

13A

BEARING, MIDDLE (25X52X14)

09262-25124

1
Out of stock

14

SHAFT, SUB T/M OUTPUT This part replaces 29121-38F50.

29121-38F51

1
Out of stock

15

GEAR, SUB T/M DRIVEN | NT:35

29311-38F51

1
Out of stock

16

BEARING (35X72X17) | 35X72X17.0 This part replaces 09262-35039.

09262-35038

1
Out of stock

17

BEARING, SUB T/M, LH | 20X52X15.0

09262-20073

1
Out of stock

18

GEAR, SEC DRIVE BEVEL GR | NT:15

24911-44D11

1
Out of stock

19

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.90/0.95/1.00/ 1.05/1.10/1.15 This part replaces 24935-19810.

24935-03811

1
Out of stock

20

NUT, SEC DRIVE BEVEL

09140-20012

1
Out of stock

21

WASHER, SEC DRIVE BEVEL | 20.1X32X1.0

09181-20223

1
Out of stock

22

HOUSING, ODOMETER GEAR

26441-19B01

1
Out of stock

23

SLEEVE

26442-19B00

1
Out of stock

24

GASKET, ODOMETER

26451-19B12

1
Out of stock

25

GEAR, ODOMETER DRIVE

26461-44D00

1
Out of stock

26

GEAR, ODOMETER DRIVEN

26471-44D00

1
Out of stock

27

SPACER, ODOMETER DRIVE GEAR

26481-19B00

1
Out of stock

28

BOLT, GEAR SLEEVE

09103-06201

2
Out of stock

29

BOLT (6X10) This part replaces 09135-06013.

09135-06501

1
Out of stock

30

WASHER (6.2X11X1.2)

09168-06004

1
Out of stock

31

O RING (ID:16.6,DD:1.9)

09280-17004

1
Out of stock

32

SEAL, ODOMETER DRIVEN

09289-05002

1
Out of stock

33

WASHER

08211-08151

1
Out of stock

34

WASHER

08211-15201

1
Out of stock

35

WASHER

08211-17241

1
Out of stock

36

RETAINER, SEC DRIVE SFT

24741-21A00

2
Out of stock

37

SCREW (6X12)

09125-06110

2
Out of stock
