2002 Suzuki LT-F400F Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2002 Suzuki LT-F400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

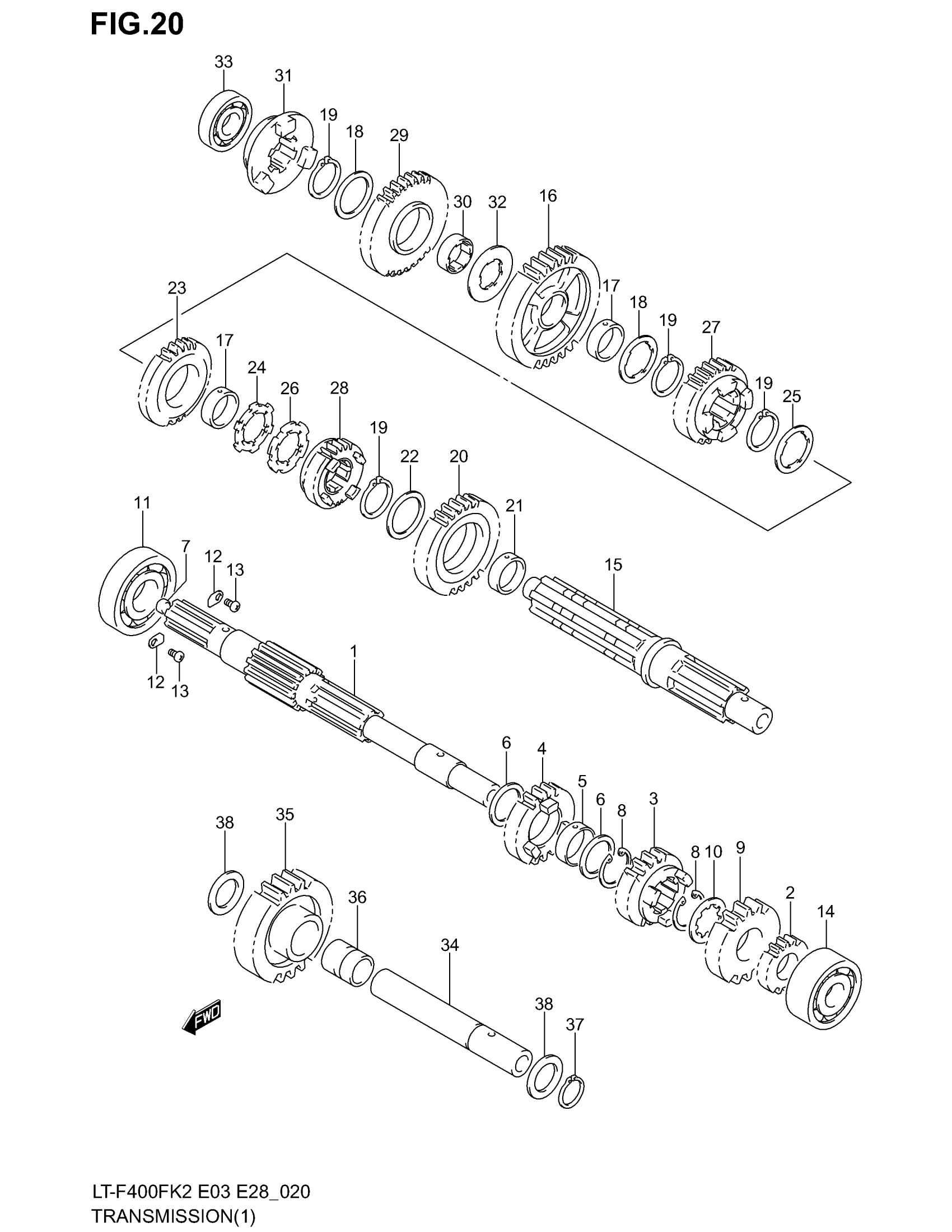

2002 Suzuki LT-F400F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:12) This part replaces 24121-38F50.

24121-38F51

1
Out of stock

2

1

$130.65

In stock

3

1

$134.75

In stock

4

1

$59.74

In stock

5

BUSH

09300-22008

1

$16.03

In stock

6

WASHER (22X30X1.0)

09181-22167

2

$2.92

In stock

7

PLUG, COUNTER SHAFT

09241-10003

1
Out of stock

8

CIRCLIP

09380-22006

2

$3.00

In stock

10

WASHER (22.1X27X0.5)

09167-22013

1
Out of stock

11

1

$27.83

In stock

12

RETAINER

24741-21A00

2
Out of stock

13

SCREW (6X12)

09125-06110

2

$2.31

In stock

14

1

$98.20

In stock

15

DRIVESHAFT

24131-38F50

1
Out of stock

16

GEAR, 1ST DRIVEN (NT:37)

24311-18A02

1
Out of stock

17

BUSH

24332-24510

2

$21.07

In stock

18

LOCK WASHER

09167-25016

2

$4.03

In stock

19

SNAP RING

09380-25003

4
Out of stock

20

1

$127.82

In stock

21

BUSH

09300-25020

1

$18.32

In stock

22

WASHER

08211-25351

1

$4.03

In stock

23

1

$122.62

In stock

24

LOCK WASHER

09169-25001

1
Out of stock

25

LOCK WASHER, RH

09167-25016

1

$4.03

In stock

26

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

27

1

$124.92

In stock

28

1

$124.92

In stock

29

GEAR, REVERSE DRIVEN (NT:34)

24571-38F50

1
Out of stock

30

BUSH,REVERSE DRIVEN GEAR

24333-18A00

1
Out of stock

31

DOG, REVERSE

24581-38F50

1
Out of stock

32

WASHER (25.1X40X1.5)

09167-25017

1
Out of stock

33

1

$40.18

In stock

34

SHAFT, REVERSE IDLE

24551-38F50

1
Out of stock

35

GEAR, REVERSE IDLE (NT:29)

24561-19B00

1
Out of stock

36

BUSH

09300-17010

1
Out of stock

37

1

$2.03

In stock

38

WASHER (17X28X1.0)

09181-17195

2

$3.04

In stock
