2002 Suzuki LT-F400F Front Drive Shaft Diagram

← All diagrams

Find the part on the Front Drive Shaft diagram for your 2002 Suzuki LT-F400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

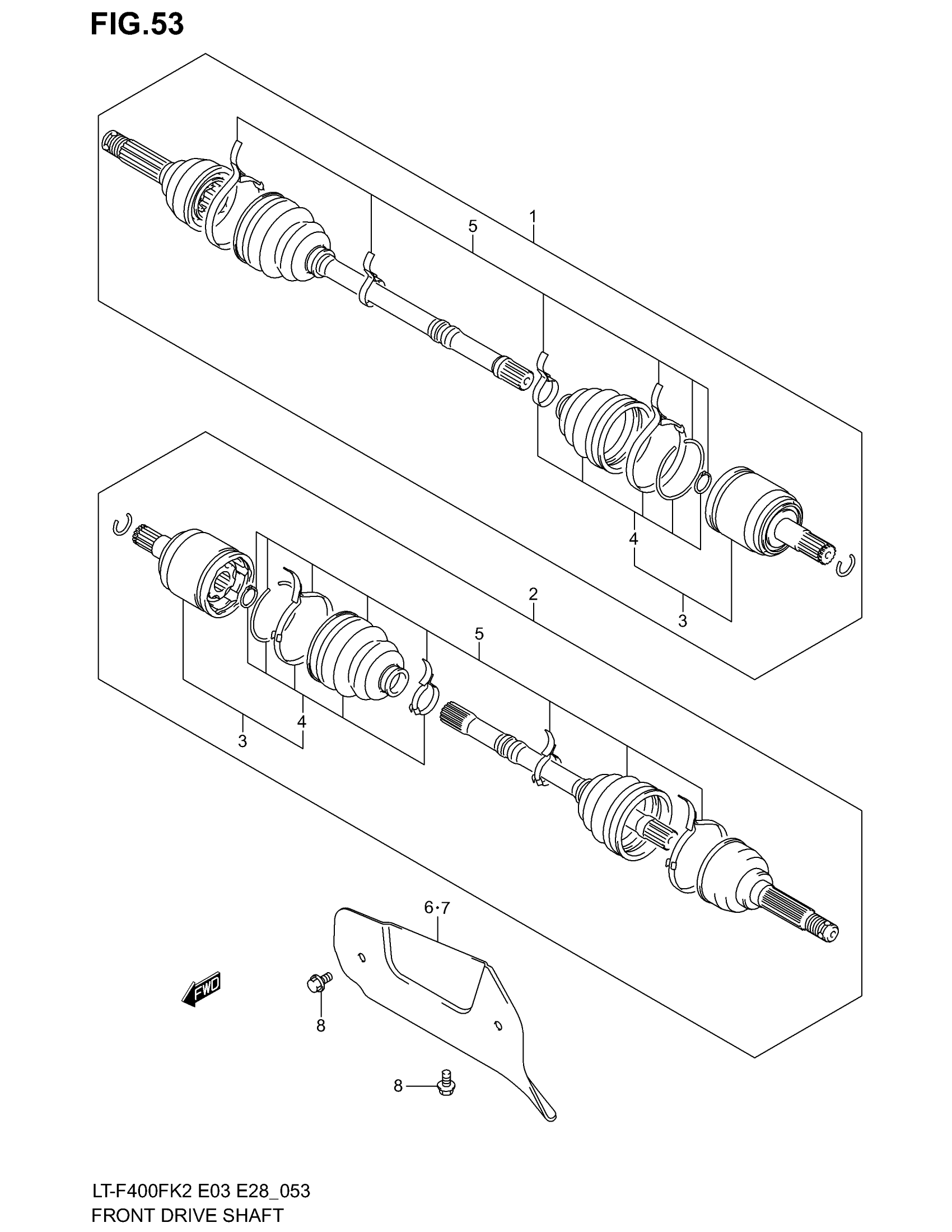

2002 Suzuki LT-F400F Front Drive Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$589.98

In stock

2

SHAFT ASSY,FRON | Includes Item(s) 3 - 5 This part replaces 54902-38F00.

54902-38F01

1
Out of stock

3

JOINT SET This part replaces 54933-38F00.

54933-38F01

2
Out of stock

4

BOOT SET,INNER This part replaces 54931-19B20.

54931-19B21

2
Out of stock

5

BOOT SET,OUTER This part replaces 54930-19B20.

54930-19B21

2
Out of stock

6

PROTECTOR,FRONT DRIVE SHAFT,R This part replaces 54903-38F00.

54903-27H01

1
Out of stock

7

1

$18.12

In stock

8

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

6
Out of stock
