2007 Suzuki LT-F400 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2007 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

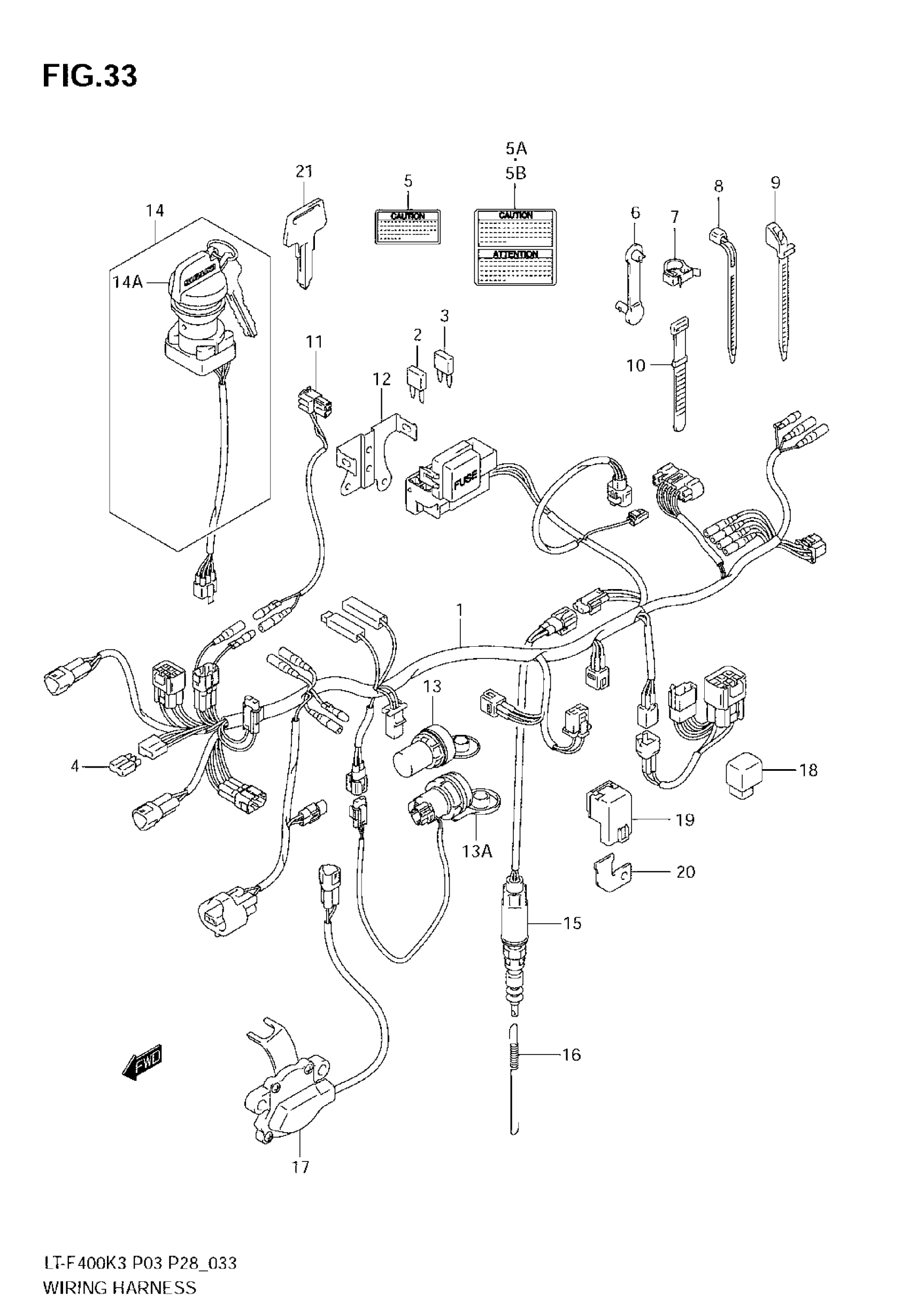

2007 Suzuki LT-F400 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS WIRING | MODEL K3 %F.NO.5SAAK45A3X102000

36610-38F20

1
Out of stock

2

.FUSE (5A) | FOR 36610-38F20

09481-05501

1
Out of stock

3

FUSE (10A) | FOR 36610-38F20

09481-10501

5
Out of stock

3

FUSE (10A) | FOR 36610-38F60,36610-38F61

09481-10501

6
Out of stock

4

2

$13.49

In stock

5

1

$8.52

In stock

5

LABEL, CAUTION MAX AMP | F.NO.5SAAK45A3X102001%

38852-09F30

1
Out of stock

5A

LABEL, CAUTION MAX AMP | %F.NO.5SAAK45A3X102000 E28

38852-03G00

1
Out of stock

5B

LABEL, CAUTION MAX AMP | F.NO.5SAAK45A3X102001% E28

38852-03G10

1
Out of stock

6

CLAMP, WIRING HARNESS

36651-48E00

2

$3.67

In stock

7

CLAMP (D:20)

09403-20403

1
Out of stock

7

CLAMP (D:25)

09403-25401

2
Out of stock

8

CLAMP (L:125)

09407-14403

3
Out of stock

8

CLAMP (L:165)

09407-18402

2
Out of stock

9

CLAMP

09407-12407

—
Out of stock

10

CLAMP

09407-12402

2
Out of stock

11

1

$9.70

In stock

12

BRACKET,FUSE BOX

36744-38F00

1
Out of stock

13

TERMINAL, POWER SOURCE | 12V,60W %F.NO.5SAAK45A3X102000

38850-09F00

1
Out of stock

14A

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

15

SWITCH ASSY,STOP LAMP

37740-38F01

1
Out of stock

16

SPRING, STOP LAMP

09443-06016

1
Out of stock

17

1

$123.97

In stock

17

1

$123.97

In stock

18

RELAY,NEUTRAL START

38730-09F00

1
Out of stock

19

1

$39.56

In stock

20

BRACKET, GEAR IN START

38741-09F00

1
Out of stock

21

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

21

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

21

KEY,BLANK (TYPE:E) | OPT

37146-19B20

1
Out of stock

21

KEY,BLANK (TYPE:F) | OPT

37146-19B30

1
Out of stock
