Description

Price

1

RELAY ASSY, STARTING MOTOR | Includes Item(s) 2 - 3

31800-03G00

$92.64

2

COVER, STARTER RELAY

31861-26E00

$4.09

3

FUSE, 30A

09481-30101

$2.35

4

BOLT, STG MOT TERM

09128-06013

$1.28

5

CDI UNIT | MODEL K3/K4

32900-38F10

$838.35

5A

CDI UNIT | MODEL K5/K6/K7

32900-38F30

$850.38

6

CUSHION, CDI

32980-38F00

$14.98

7

COIL ASSY, IGNITION

33410-41D20

$90.95

8

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

9

CAP, SPARK PLUG

33510-43010

$23.90

10

SEAL, SPARK PLUG

33541-44D00

$5.07

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

12

RECTIFIER ASSY

32800-38F10

$292.50

13

SCREW This part replaces 02162-06253.

02162-0625A

$1.68

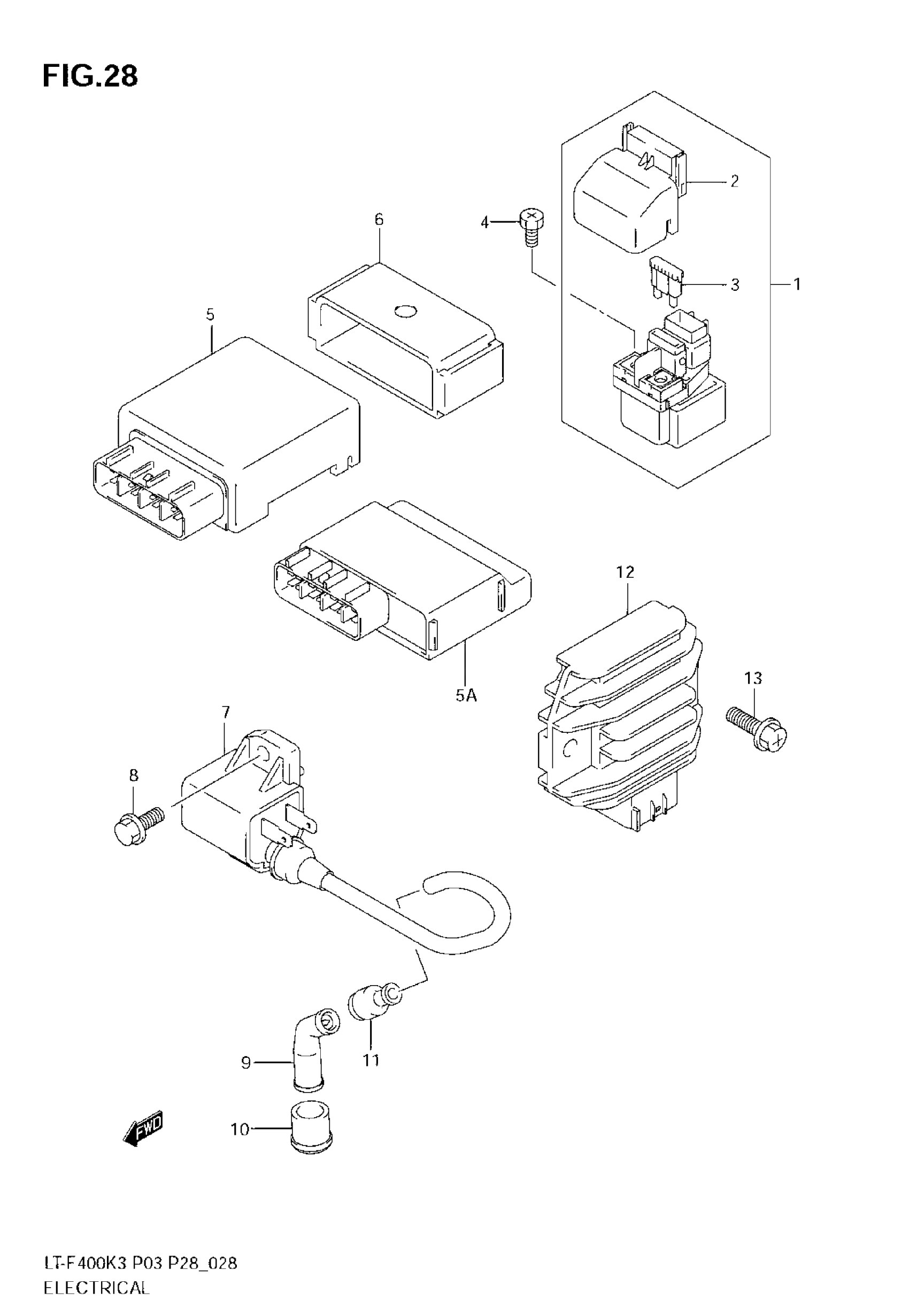

Suzuki LT-F400 (2007) ELECTRICAL Diagram
