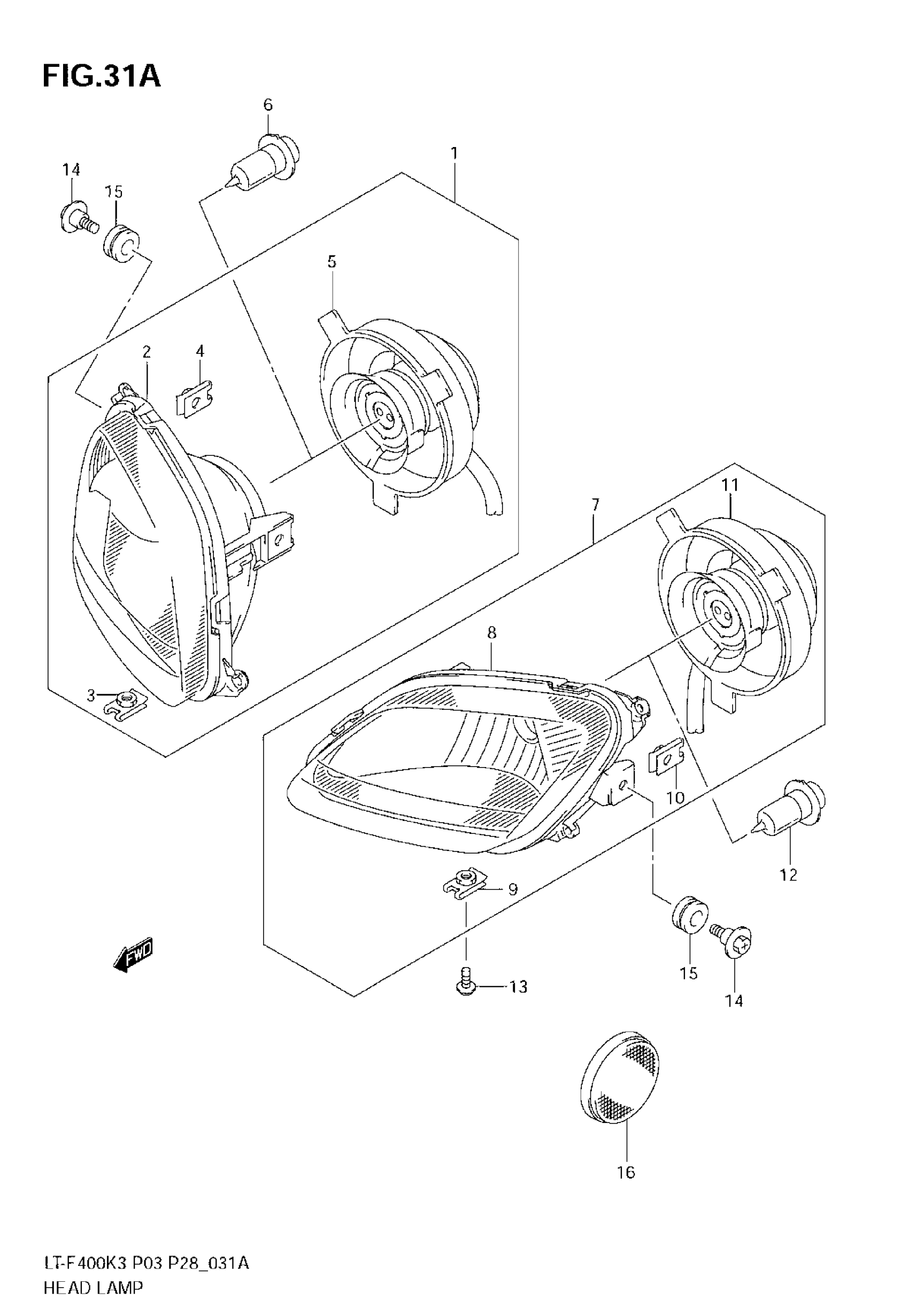

Find the part on the Headlamp diagram for your 2007 Suzuki LT-F400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki LT-F400 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

UNIT, RH

35121-05G10

1

$146.00

In stock

3

NUT (M5)

35157-05G50

1

$6.75

In stock

4

NUT (M6)

35157-05G90

2

$6.75

In stock

5

CORD ASSY

35171-05GL0

1

$44.55

In stock

7

HEADLAMP ASSY, LH | FOR YU1; Includes Item(s) 8 - 11

35300-05G10-999

1
Out of stock

8

UNIT, LH

35321-05G10

1

$220.50

In stock

9

NUT (M5)

35157-05G50

2

$6.75

In stock

10

NUT (M6)

35157-05G90

2

$6.75

In stock

11

CORD ASSY

35171-05GL0

1

$44.55

In stock

13

SCREW, ADJUST (5X16)

09136-05046

2

$2.67

In stock

14

SCREW, HEADLAMP

09139-06118

4
Out of stock

15

CUSHION

09320-10501

4

$6.73

In stock

16

2

$17.36

In stock
