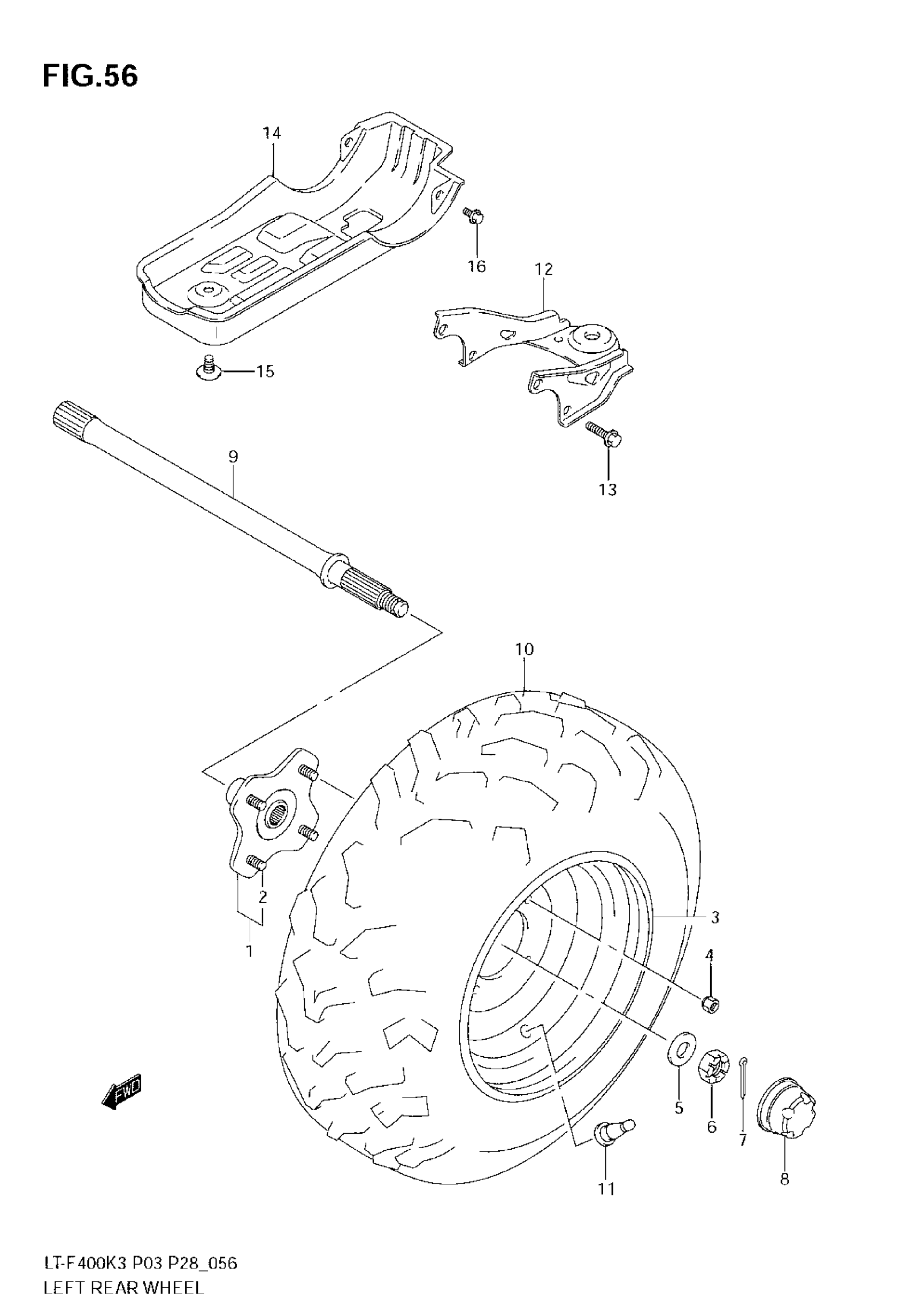

Suzuki LT-F400 (2007) LEFT REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR,L | %F.NO.5SAAK45A3X102000 This part replaces 64110-38F00.

64110-38F30

$104.72

1

HUB,REAR,L | F.NO.5SAAK45A3X102001% This part replaces 64110-38F21.

64110-38F30

$104.72

1

HUB,REAR,L | MODEL K5/K6/K7; Includes Item(s) 2 This part replaces 64110-38F22.

64110-38F30

$104.72

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

$2.32

3

RIM, REAR WHEEL (12X7.5AT) (BLACK) | MODEL K3/K4/K5 This part replaces 65310-38F00-YL8.

65310-38F40-291

$202.98

3

RIM, REAR WHEEL (12X7.5AT) (BLACK) | MODEL K6/K7 This part replaces 65310-38F20-YL8.

65310-38F40-291

$202.98

4

NUT

09140-10021

$2.09

5

WASHER | MODEL K3/K4/K5

09164-18004

$3.49

5

WASHER,HUB | MODEL K6/K7

64723-38F00

$8.98

6

NUT, HUB | %F.NO.5SAAK45A3X102000

09141-18008

$7.93

6

NUT, HUB | F.NO.5SAAK45A3X102001%

09141-18010

$9.54

6

NUT | MODEL K6/K7 This part replaces 09141-20006.

09141-20008

$17.59

7

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.41

8

CAP,WHEEL CENTER

54725-09F01

$9.53

9

AXLE,REAR,L | MODEL K3/K4/K5 This part replaces 64712-38F10.

64712-38F20

$109.52

9

AXLE,REAR,L | MODEL K6/K7

64712-38F20

$109.52

10

TIRE,REAR | MODEL K3 This part replaces 65110-38F00.

65110-03G30

Unavailable

10

TIRE,REAR | MODEL K4/K5 This part replaces 65110-38F20.

65110-03G30

Unavailable

10

TIRE,REAR | MODEL K6/K7 This part replaces 65110-38F21.

65110-03G30

Unavailable

10

TIRE,REAR (AT25X10-12) | TYPE MAXXIS This part replaces 65110-38FC0.

65110-31G30

$326.70

11

VALVE ASSY, WHEEL RIM, TR412

43130-24A00

$8.46

12

PLATE,TRAILER TOW | MODEL K3/K4 This part replaces 95210-38F00.

95210-38F10

$49.25

12

PLATE,TRAILER TOW | MODEL K5/K6/K7

95210-38F10

$49.25

13

.BOLT | %F.NO.5SAAK45A3X102000 This part replaces 01550-10353.

01550-1035A

$4.53

13

BOLT | F.NO.5SAAK45A3X102001%

09103-10344

$2.81

14

PROTECTOR,FINAL CASE This part replaces 61391-38F00.

61391-38F11

$74.60

15

BOLT, FRONT This part replaces 61393-09F00.

61393-09F10

$7.02

16

BOLT, REAR

09111-06095

$2.21
