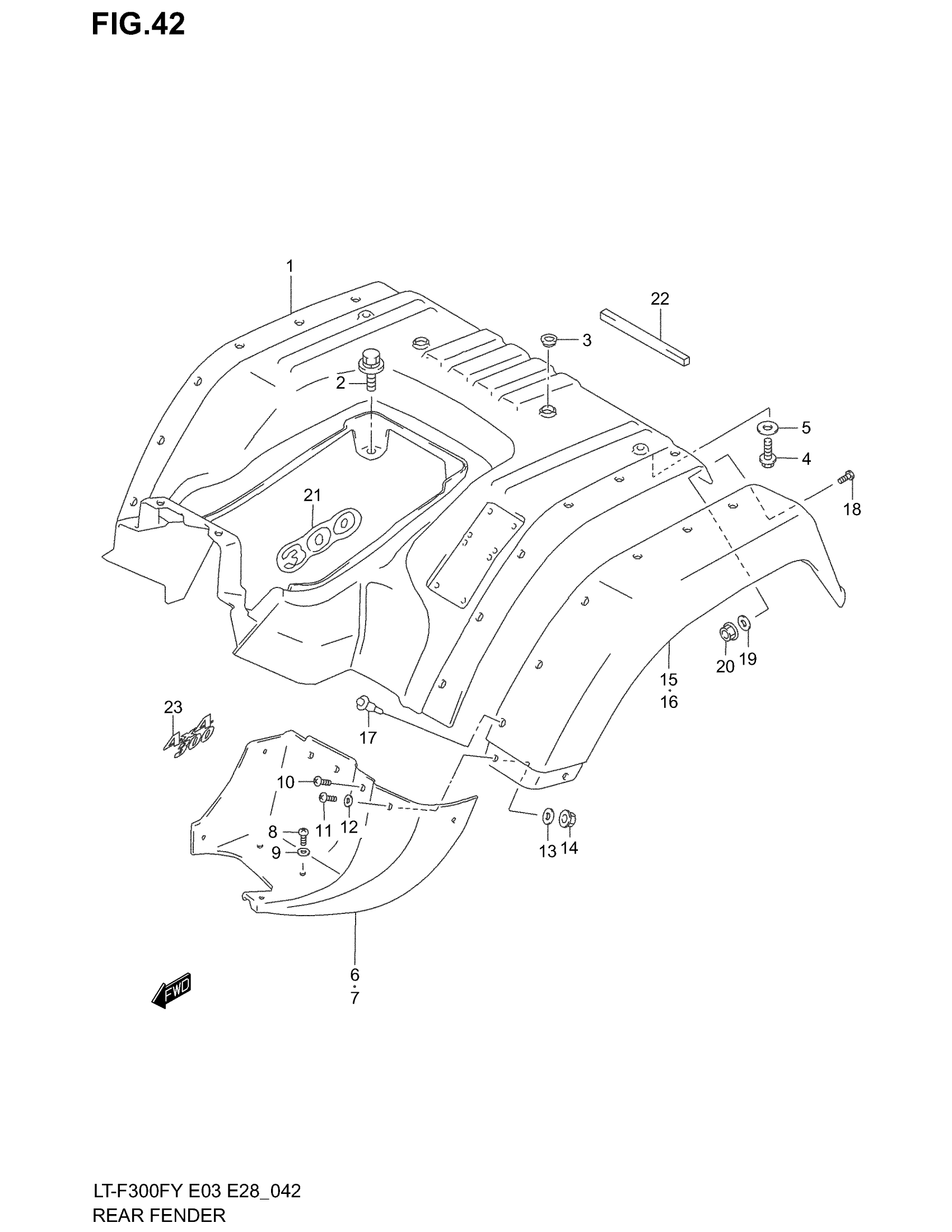

Suzuki LT-F300F (2002) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL X/Y This part replaces 63111-39DA0-Y5G.

63111-39DA1-Y5G

Unavailable

1

FENDER, REAR (GREEN) | MODEL X/Y/K1

63111-39DA1-Y9N

Unavailable

1

FENDER, REAR (RED) | MODEL K1

63111-39DA1-Y9P

Unavailable

1

FENDER, REAR (GREEN) | MODEL K2

63111-39DA1-YT8

$692.97

1

FENDER, REAR (RED) | MODEL K2

63111-39DA1-YT9

Unavailable

2

BOLT

09118-06006

$2.80

3

GROMMET This part replaces 09308-25003.

09308-25005

$3.55

4

BOLT This part replaces 01570-06163.

01570-0616A

$2.24

5

WASHER This part replaces 09169-06045.

09169-06055

$2.02

6

MUDGUARD, FRONT RH (BLACK)

63330-39DA0-291

$146.33

7

MUDGUARD, FRONT LH (BLACK)

63341-39DA0-291

$90.53

8

SCREW, LOWER

09139-05040

$2.21

9

WASHER

09160-08123

$2.01

10

SCREW, FRONT

09136-05038

$2.80

11

SCREW

09139-05037

$2.07

12

WASHER

09160-08123

$2.01

13

WASHER, INNER

09160-05046

$1.90

14

NUT | MODEL X/Y This part replaces 09159-05026.

09159-05043

$2.00

14

NUT | MODEL K1/K2

09159-05043

$2.00

15

MUDGUARD, REAR RH (BLACK)

63351-39DA0-291

$173.00

16

MUDGUARD, REAR LH (BLACK)

63361-39DA0-291

$173.00

17

CLIP

09409-07333

$2.29

18

SCREW, REAR

09136-05038

$2.80

19

WASHER

09160-05046

$1.90

20

NUT | MODEL X/Y This part replaces 09159-05026.

09159-05043

$2.00

20

NUT | MODEL K1/K2

09159-05043

$2.00

21

EMBLEM, "300" | MODEL X/Y/K1

68171-39D00-J5F

Unavailable

22

CUSHION, REAR

47161-29B00

$8.47

23

EMBLEM | MODEL K2

68171-39D20-DJ8

Unavailable
