2002 Suzuki LT-F300F Rear BOX Diagram

← All diagrams

Find the part on the Rear BOX diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

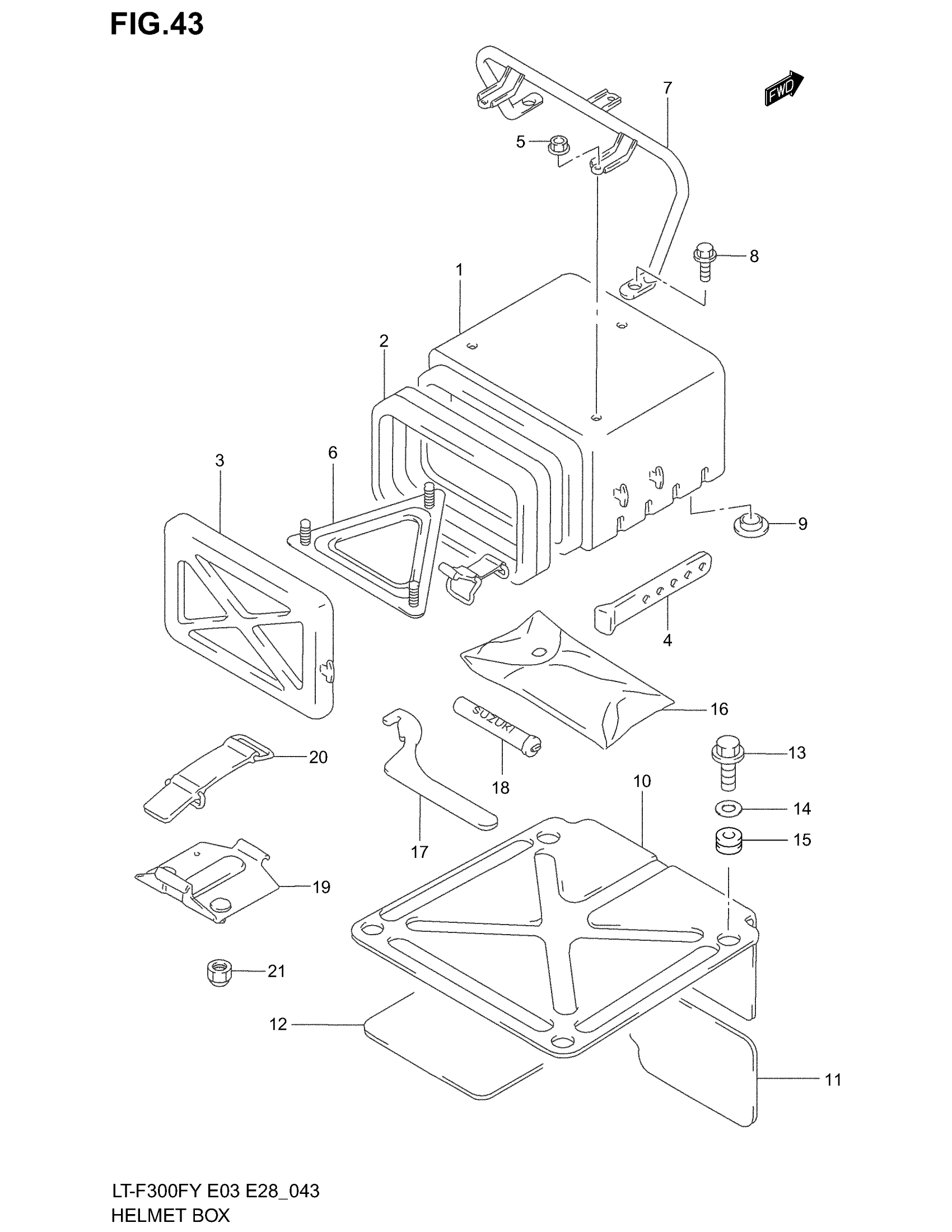

2002 Suzuki LT-F300F Rear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR BOX

93111-39DA0

1
Out of stock

2

MOLDING

92114-19B00

1
Out of stock

3

LID

93121-39DA0

1
Out of stock

4

BAND | MODEL X/Y/K1

93191-09F00

2
Out of stock

4

BAND, BOX | MODEL K2 This part replaces 93191-09F10.

93191-09F11

2
Out of stock

5

NUT This part replaces 08316-10063.

08316-1006B

3
Out of stock

6

BRACKET

93230-39DA0

1
Out of stock

7

BRACE

93240-39DA0

1
Out of stock

8

BOLT, BRACE

09118-06019

2

$2.92

In stock

9

CAP (OD:18) This part replaces 09250-10011.

09250-10033

1
Out of stock

10

PLATE, HEAT SHIELD

47432-19B02

1
Out of stock

11

SHIELD, MUFFLER NO.1

47433-19B00

1
Out of stock

12

SHIELD, MUFFLER NO.2

47434-19B00

1
Out of stock

13

BOLT This part replaces 01550-06163.

01550-0616A

4
Out of stock

14

WASHER

09169-06040

4
Out of stock

15

CUSHION This part replaces 09320-08030.

09320-08511

4
Out of stock

16

TOOL ASSY This part replaces 09800-21019.

09800-21075

1
Out of stock

17

CLAMP, WRENCH | MODEL X/Y

09822-00004

1
Out of stock

17

CLAMP,WRENCH | MODEL K1/K2

09822-00003

1
Out of stock

18

GAUGE ASSY,AIR PRESSUR | MODEL X/Y This part replaces 96200-18A01.

96200-18A02

1
Out of stock

18

GAUGE ASSY,AIR PRESSUR | MODEL K1/K2

96200-18A02

1
Out of stock

19

HOLDER, TOOL

41550-49201

1
Out of stock

20

BAND, TOOL This part replaces 09462-00073.

09462-00093

1
Out of stock

21

NUT This part replaces 08319-31063.

08319-3106A

2
Out of stock
