2002 Suzuki LT-F300F Left Rear Wheel Diagram

← All diagrams

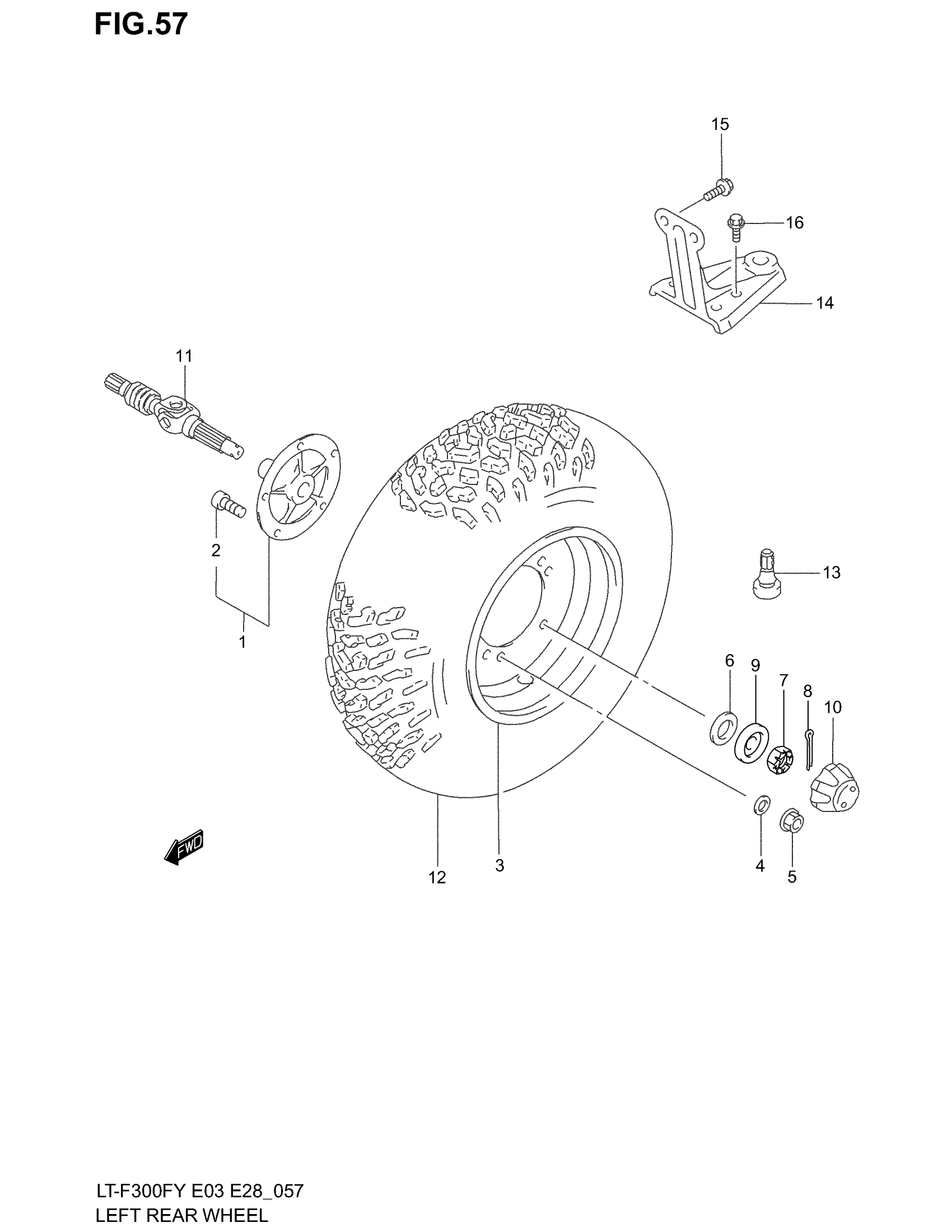

Find the part on the Left Rear Wheel diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F300F Left Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR LH | MODEL X/Y This part replaces 64110-39D30.

64110-39D50

1
Out of stock

1

HUB, REAR LH | MODEL K1/K2; Includes Item(s) 2

64110-39D50

1
Out of stock

2

BOLT (10X24.5)

09119-10062

5

$3.92

In stock

3

1

$527.65

In stock

4

WASHER, WHEEL

09160-10126

5
Out of stock

5

NUT This part replaces 08316-10103.

08316-1010B

5
Out of stock

6

WASHER

09164-18004

1
Out of stock

7

NUT, HUB

09141-18008

1

$8.27

In stock

8

1

$1.47

In stock

9

HOLDER, CAP

64726-19B00

1

$3.39

In stock

10

CAP, WHEEL CENTER

54725-39D00

1

$15.15

In stock

11

AXLE, REAR

64710-39D00

1

$387.18

In stock

12

TIRE,REAR,AT25X This part replaces 65110-19B90.

65110-19BA0

1
Out of stock

13

VALVE ASSY, WHEEL RIM, TR412

43130-24A00

1
Out of stock

14

PLATE, TRAILER TOW

95210-20B00

1
Out of stock

15

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock
