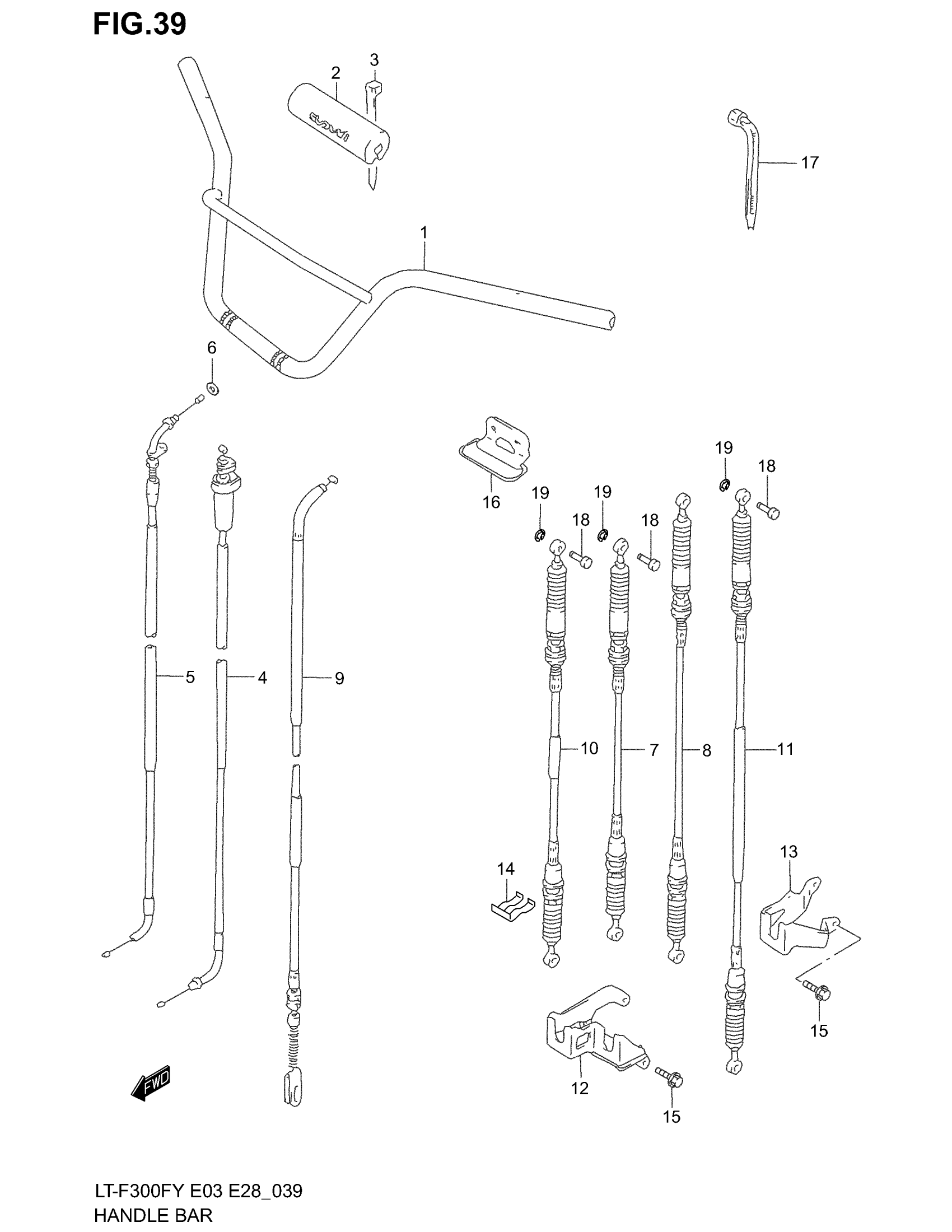

Suzuki LT-F300F (2002) HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR | MODEL X/Y This part replaces 56110-19B31-291.

56110-19B32-291

Unavailable

1

HANDLEBAR | MODEL K1/K2

56110-19B60

Unavailable

2

PAD, CROSS (OD:30) | MODEL X/Y

56172-19B01-291

Unavailable

3

BAND (L:145) | MODEL X/Y

09407-14407

$2.80

4

CABLE ASSY, THROTTLE | MODEL X

58300-19B20

$19.92

4

CABLE ASSY, THROTTLE | MODEL Y This part replaces 58300-39DA0.

58300-39DB0

$28.92

4

CABLE ASSY, THROTTLE | MODEL K1/K2

58300-39DB0

$28.92

5

CABLE, STARTER | MODEL X

58410-19B10

$32.70

5

CABLE, STARTER | MODEL Y/K1/K2

58410-39DA0

$49.52

6

WASHER

09320-06503

$2.87

7

CABLE, T/M GEAR SHIFT

58680-19B21

$232.28

8

CABLE, TRANSFER SHAFT

58690-19B01

$172.80

9

CABLE, PARKING BRAKE

58810-19B02

$42.56

10

CABLE, REVERSE | MODEL X This part replaces 58840-19B10.

58840-39DA0

Unavailable

10

CABLE, REVERSE | MODEL Y

58840-39DA0

Unavailable

10

CABLE, REVERSE | MODEL K1/K2

58840-39DB0

Unavailable

11

CABLE, SUB T/M SHIFT | MODEL X/Y

58880-19B11

Unavailable

11

CABLE, SUB T/M SHIFT | MODEL K1/K2

58880-39DA0

$182.93

12

BRACKET, CONTROL CABLE

58870-19B00

Unavailable

13

BRACKET, CONTROL CABLE

58873-19B11

Unavailable

14

CLIP

09383-19003

$5.10

15

BOLT This part replaces 01547-06163.

01547-0616B

$2.43

16

GUIDE, CABLE

58620-19B10

Unavailable

17

CLAMP (L:125)

09407-14403

$2.24

17

CLAMP (L:165)

09407-18402

$2.21

18

PIN

09208-08008

$2.77

19

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43
