2002 Suzuki LT-F300F Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2002 Suzuki LT-F300F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

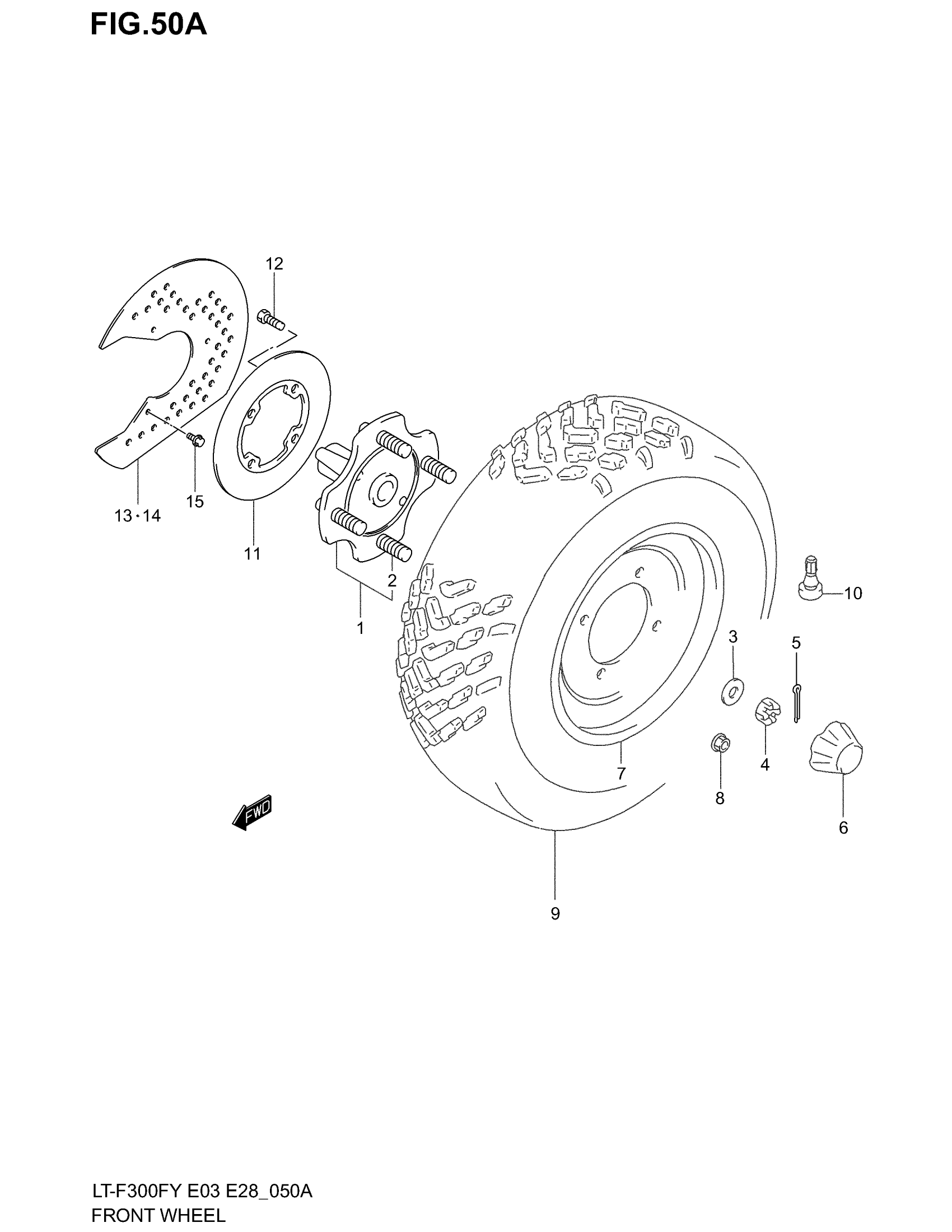

2002 Suzuki LT-F300F Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT | Includes Item(s) 2

54110-39D20

2
Out of stock

2

BOLT (10X30) This part replaces 09119-10049.

09119-10049-XC0

8
Out of stock

3

WASHER, HUB

09164-18004

2
Out of stock

4

NUT, HUB

09141-18008

2

$8.27

In stock

5

PIN, COTTER This part replaces 04111-40408.

04111-4040A

2
Out of stock

6

2

$15.15

In stock

7

RIM,FRONT WHEEL This part replaces 55310-39D10-12R.

55310-39D20-PBV

2
Out of stock

8

NUT This part replaces 09140-10029.

09140-10021

8
Out of stock

9

TIRE COMP,FRONT This part replaces 55110-19B90.

55110-19BA0

2
Out of stock

10

VALVE ASSY, WHEEL RIM,TR412

43130-24A00

2
Out of stock

11

DISC, FRONT BRAKE

59211-39D00

2
Out of stock

12

BOLT

09106-08155

8
Out of stock

13

COVER, FRONT DISC RH

59231-39D00

1
Out of stock

14

COVER, FRONT DISC LH

59431-39D00

1
Out of stock

15

BOLT (6X12) This part replaces 09103-06083.

09103-06285

6
Out of stock
