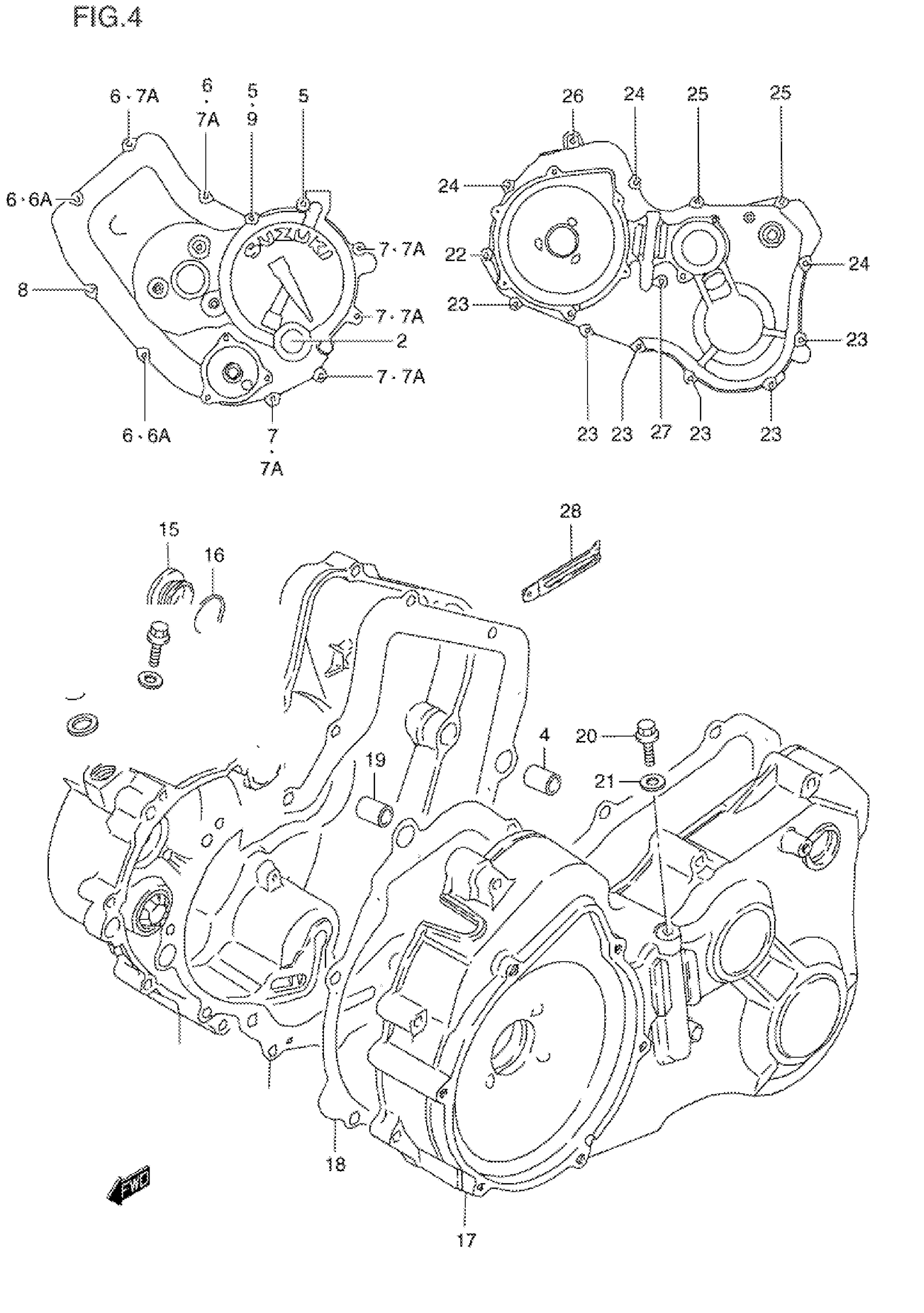

Suzuki LT-F250W (1998) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-19B20

Unavailable

2

LENS, OIL CHECK

11971-33210

$17.41

3

GASKET, CLUTCH This part replaces 11482-19B12.

11482-19B13

$26.55

4

PIN (10.4X13X18)

04211-13189

$2.25

5

BOLT (6X100)

09103-06501

$4.53

6

BOLT, WATER PUMP | ~E.NO.146235 This part replaces 01547-06353.

01547-0635B

$2.80

6A

BOLT, WATER PUMP | E.NO.146236~ This part replaces 01547-06353.

01547-0635B

$2.80

7

BOLT | ~E.NO.146235 This part replaces 01547-06403.

01547-0640B

$2.80

7A

BOLT | E.NO.146236~ This part replaces 01547-06403.

01547-0640B

$2.80

8

BOLT This part replaces 01547-06503.

01547-0650B

$2.80

9

GASKET

09168-06023

$2.09

10

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.38

11

GASKET

09168-08015

$2.80

12

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.32

13

GASKET

09168-16002

$1.97

14

CAP

09250-08012

$2.35

15

CAP, CLUTCH ADJUST

09259-30005

$10.57

16

O RING (D:3.1,ID:26.4)

09280-26006

$2.80

17

COVER, TRANSFER | MODEL V This part replaces 11351-19B11.

11351-19B12

Unavailable

17

COVER, TRANSFER | MODEL W

11351-19B12

Unavailable

18

GASKET, TRANSFER COVER

11483-19B13

$27.83

19

PIN (10.4X13X18)

04211-13189

$2.25

20

BOLT This part replaces 01550-06103.

01550-0610A

$2.01

21

GASKET

09168-06023

$2.09

22

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.50

23

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.80

24

BOLT This part replaces 01547-06403.

01547-0640B

$2.80

25

BOLT This part replaces 01547-06503.

01547-0650B

$2.80

26

BOLT This part replaces 01547-06553.

01547-0655B

$2.80

27

BOLT This part replaces 01547-06653.

01547-0665B

$3.01

28

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.81
