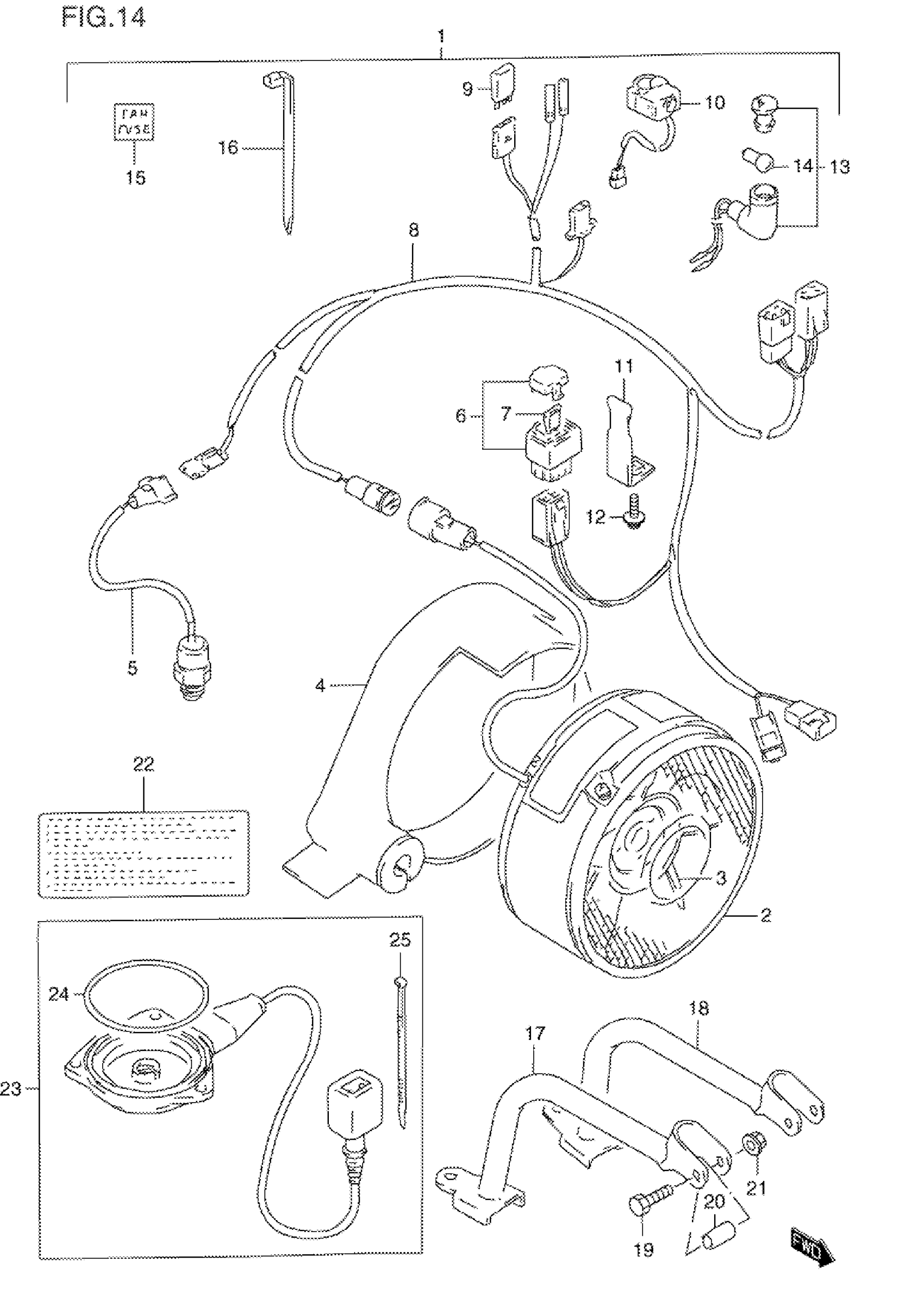

Suzuki LT-F250W (1998) COOLING FAN (OPTIONAL) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 22 This part replaces 17000-19851.

17000-19852

Unavailable

2

FAN ASSY, COOLING

17110-19B11

Unavailable

3

FAN

17820-19B10

Unavailable

4

BAND, COOLING FAN

17121-19B01

Unavailable

5

SWITCH, COOLING FAN

17680-19B70

$111.61

6

BOX ASSY, FUSE

36740-24510

Unavailable

7

FUSE (10A)

09481-10101

$0.68

8

HARNESS, WIRING

36610-19B70

Unavailable

9

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

10

SWITCH ASSY, MANUAL

37910-19B10

Unavailable

11

BRACKET, COOLING FAN FUSE

38620-04570

Unavailable

12

BOLT (6X12) This part replaces 09118-06103.

09118-06055

$3.05

13

LAMP ASSY, FAN WARNING

36360-19B10

Unavailable

14

BULB (12V,3.4W)

09471-12001

$1.67

15

LABEL, FAN WARNING

36367-19B00

Unavailable

16

CLAMP (L:125)

09407-14403

$2.24

17

TUBE, COOLING FAN RH

41970-19B20

Unavailable

18

TUBE, COOLING FAN LH

41980-19B21

Unavailable

19

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$2.80

20

SPACER (L:19)

09180-08067

$2.40

21

NUT This part replaces 08316-10083.

08316-1008B

$2.65

22

LABEL, COOLING FAN

68341-19B10

Unavailable

23

HEATER SET, ENGINE | Includes Item(s) 24 - 25

16900-19810

Unavailable

24

O RING

09280-82001

$4.66

25

CLAMP

09407-14403

$2.24
