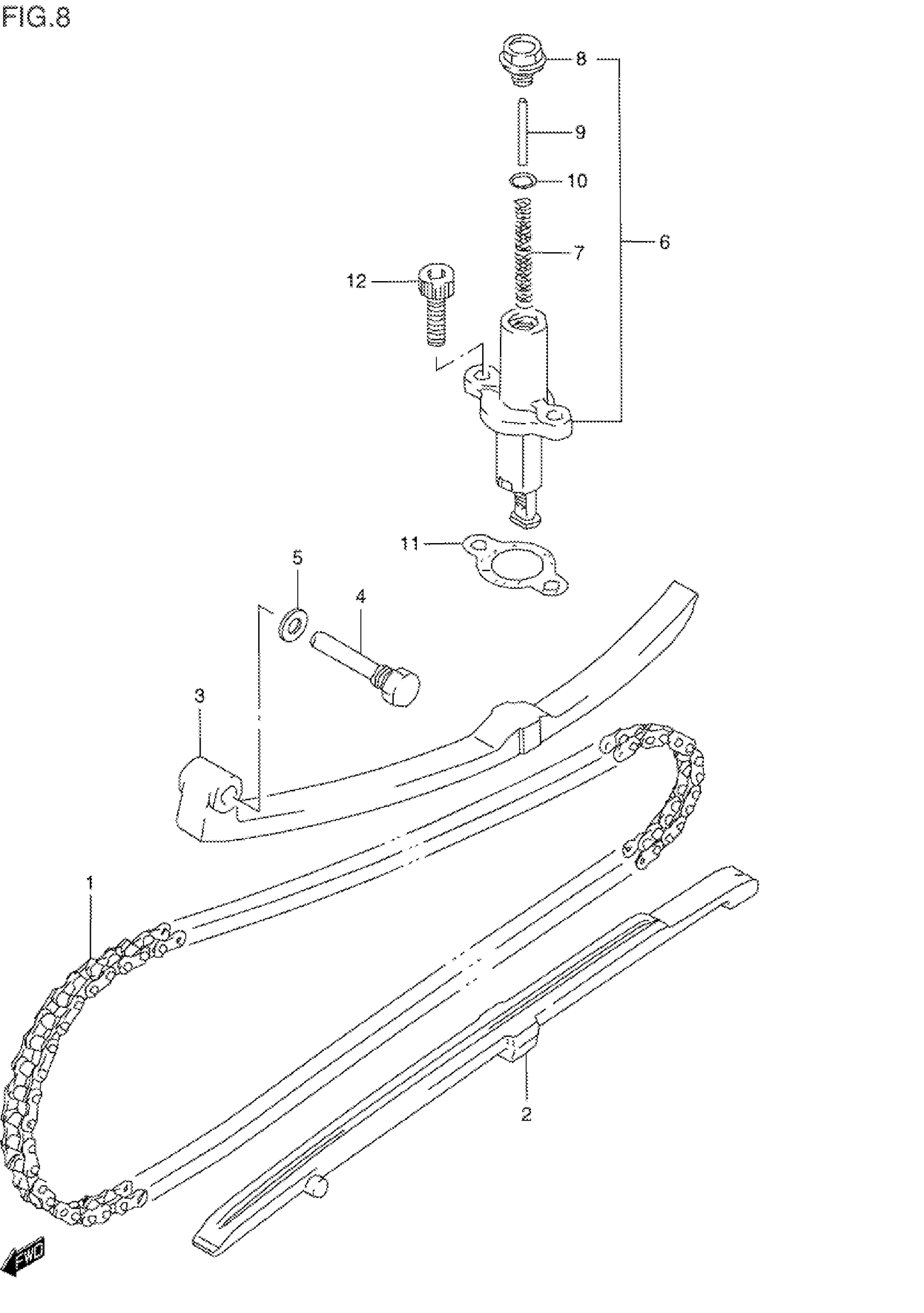

Suzuki LT-F250W (1998) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM (104LE)

12760-19B01

$96.30

2

GUIDE,CAM CHAIN This part replaces 12771-19B00.

12771-19B02

$27.68

3

TENSIONER,CAM C This part replaces 12811-19B10.

12811-19B11

$37.35

4

BOLT

12812-32410

$4.26

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 - 10

12830-19B02

$90.81

7

SPRING

12833-19B00

$3.67

8

PLUG

12834-19B00

$19.60

9

BAR

12835-19B00

$3.67

10

O RING

12832-02A00

$2.80

11

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.80

12

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$2.80
