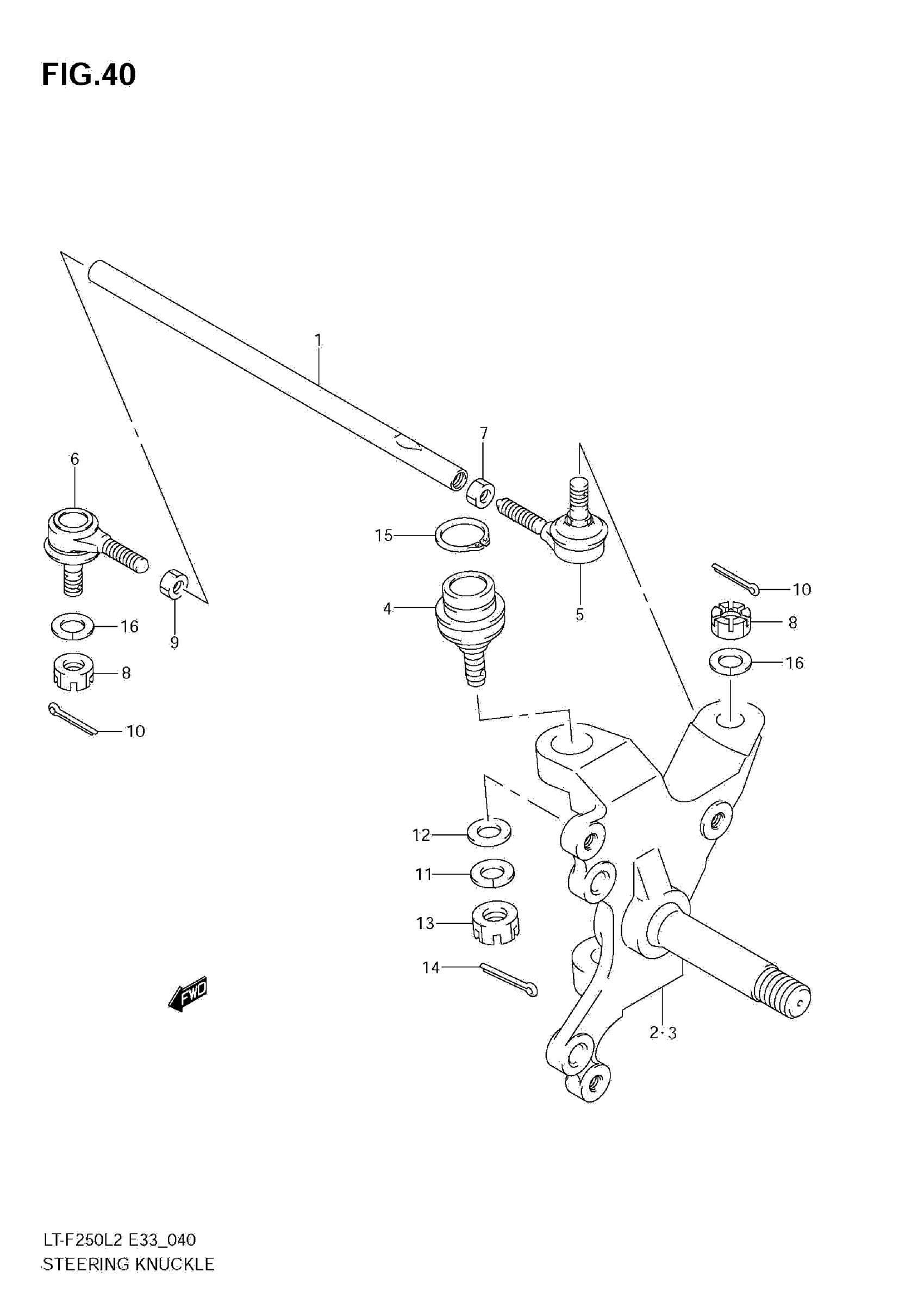

Find the part on the Steering Knuckle diagram for your 2012 Suzuki LT-F250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-F250L2 Steering Knuckle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING

51281-05G00

2
Out of stock

2

KNUCKLE, STEERING RH

51230-05G20

1
Out of stock

3

KNUCKLE, STEERING LH

51240-05G20

1
Out of stock

4

END, KNUCKLE STEERING UPPER

51210-31G10

2
Out of stock

5

ROD, END RH

51260-21G00

2
Out of stock

6

ROD, END LH

51270-21G00

2
Out of stock

7

NUT, TIE-ROD RH

51283-21G00

2
Out of stock

8

NUT

08314-4010A

4
Out of stock

9

NUT | LH

09140-10027

2
Out of stock

10

COTTER PIN

04111-2020A

4
Out of stock

11

LOCK WASHER

09162-10010

4
Out of stock

12

WASHER

08322-0110A

4
Out of stock

13

NUT

08314-4010A

4
Out of stock

14

COTTER PIN

04111-2020A

4
Out of stock

15

CIRCLIP This part replaces 08331-3130A.

08331-31309

2
Out of stock

16

LOCK WASHER

09162-10010

4
Out of stock
