2012 Suzuki LT-F250L2 Handle BAR Diagram

← All diagrams

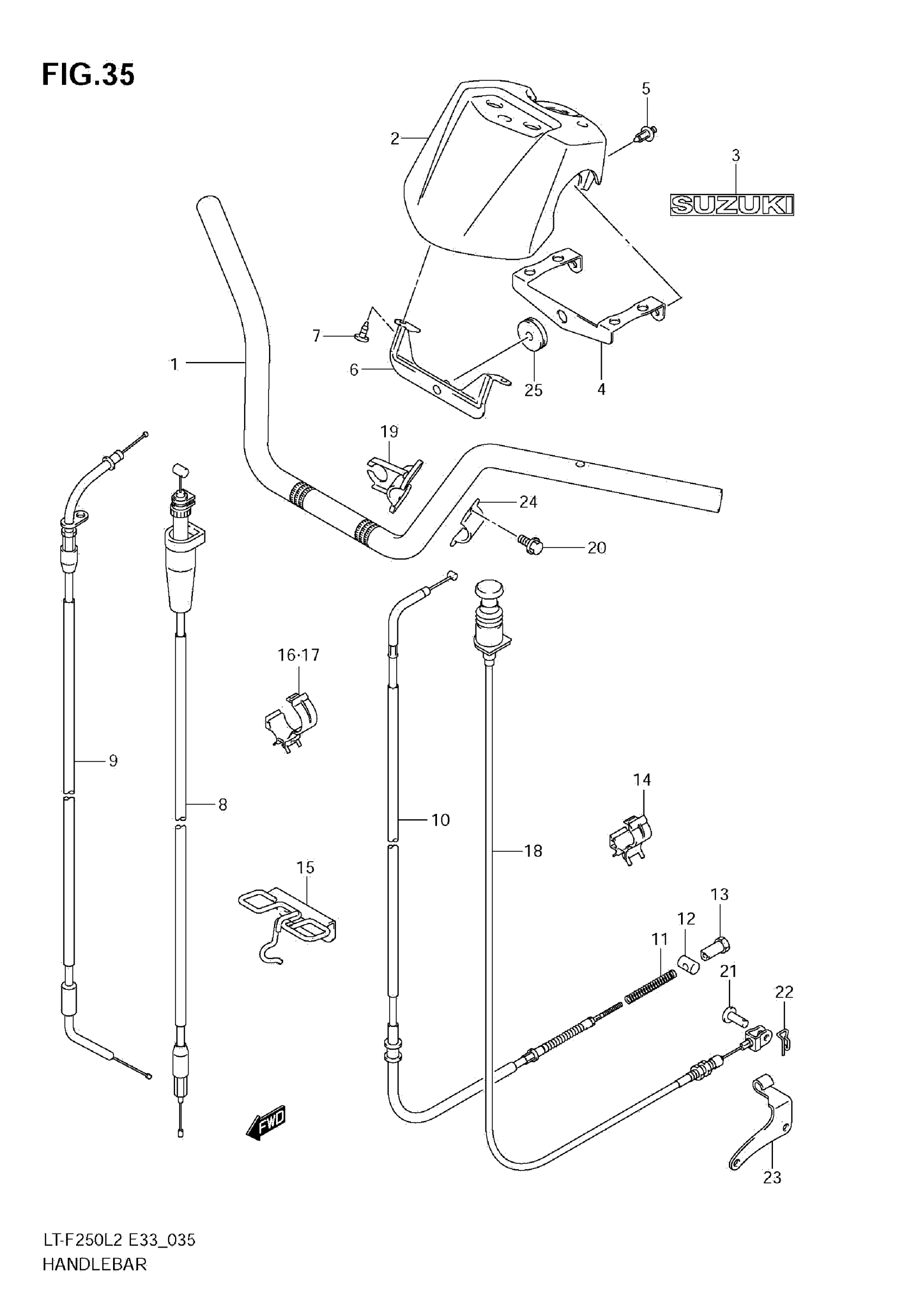

Find the part on the Handle BAR diagram for your 2012 Suzuki LT-F250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-F250L2 Handle BAR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE BAR

56111-05G20

1
Out of stock

2

COVER,STEERING This part replaces 56170-05G01-5CX.

56170-05G02-5CX

1
Out of stock

3

EMBLEM

68721-05D00-E8F

1
Out of stock

4

BRACKET, COVER RH

56411-05G00

1
Out of stock

5

CLIP (BLACK)

09409-06314-5PK

2
Out of stock

6

BRACKET, HEAD COVER

56180-05G00

1
Out of stock

7

SCREW

03541-0512B

2
Out of stock

8

CABLE ASSY,THRO This part replaces 58300-05G30.

58300-05G31

1
Out of stock

9

CABLE,STARTER This part replaces 58410-05G00.

58410-05G01

1
Out of stock

10

CABLE,RR BRAKE This part replaces 58810-05G11.

58810-05G12

1
Out of stock

11

SPRING

09440-08042

1
Out of stock

12

PIN

09209-13006

1
Out of stock

13

NUT

09150-06015

1
Out of stock

14

CLAMP

09403-10405

1
Out of stock

15

GUIDE, CABLE

58620-05G00

1
Out of stock

16

CLAMP

09403-08407

1
Out of stock

17

CLAMP

09403-20403

1
Out of stock

18

CABLE,REVERSE This part replaces 58840-05G01.

58840-05G02

1
Out of stock

19

BRACKET, REVERSE CABLE

58910-05G00

1
Out of stock

20

BOLT

01547-0612B

2
Out of stock

21

PIN

09200-06004

1
Out of stock

22

CLIP

09385-06012

1
Out of stock

23

BRACKET, REVERSE CABLE

58871-05G00

1
Out of stock

24

BRACKET

58921-05G00

1
Out of stock

25

CUSHION

09320-08018

1
Out of stock
