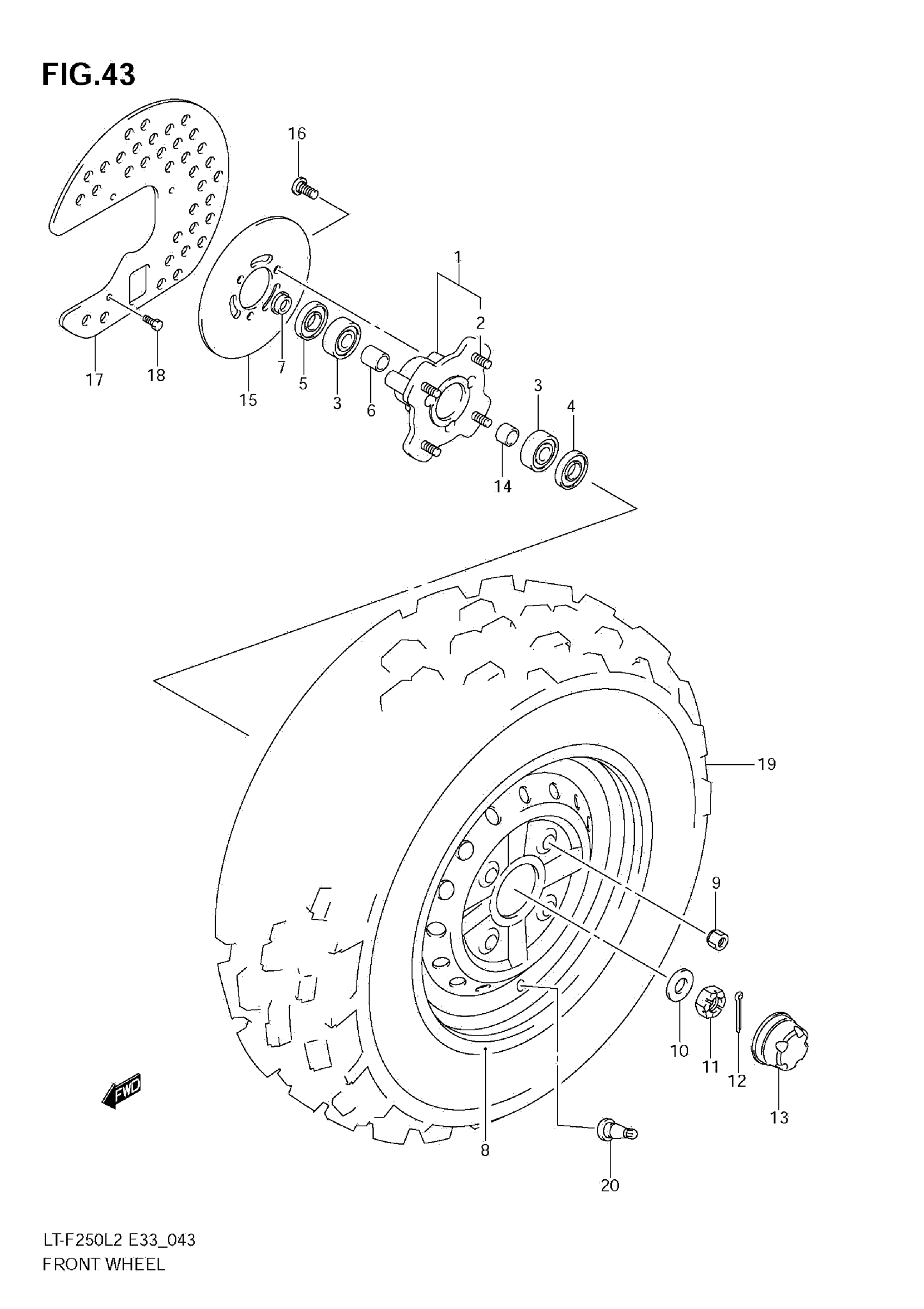

Suzuki LT-F250L2 (2012) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54110-05G10

$295.57

2

BOLT (10X30)

09119-10049-XC0

$2.32

3

BEARING

08120-62037

$19.95

4

OIL SEAL (22.2X40X8)

09284-22002

$13.14

5

OIL SEAL (26X42X8)

09284-26002

$10.16

6

SPACER, FRONT HUB

54731-05G00

$9.75

7

SPACER, FRONT AXLE

54741-05G00

$16.63

8

RIM, FRONT WHEEL (11X5.5AT) (SILVER)

55310-05G00-YL8

$378.73

9

NUT

09159-10114

$4.82

10

WASHER

08322-0116A

$1.92

11

NUT, HUB

08314-4016A

$3.59

12

PIN, COTTER

04111-4035A

$1.41

13

CAP,WHEEL CENTER

54725-09F01

$9.53

14

SPACER, FRONT AXLE

54741-189A0

$6.54

15

DISC, FRONT BRAKE

59211-05G00

$217.58

16

BOLT (8X20)

09106-08155

$3.54

17

COVER, FRONT DISC

59231-05G10

Unavailable

18

BOLT (6X12)

09103-06285

$2.02

19

TIRE, FRONT (AT22X7-11) This part replaces 55110-05G10.

55110-05G20

$298.30

20

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46
