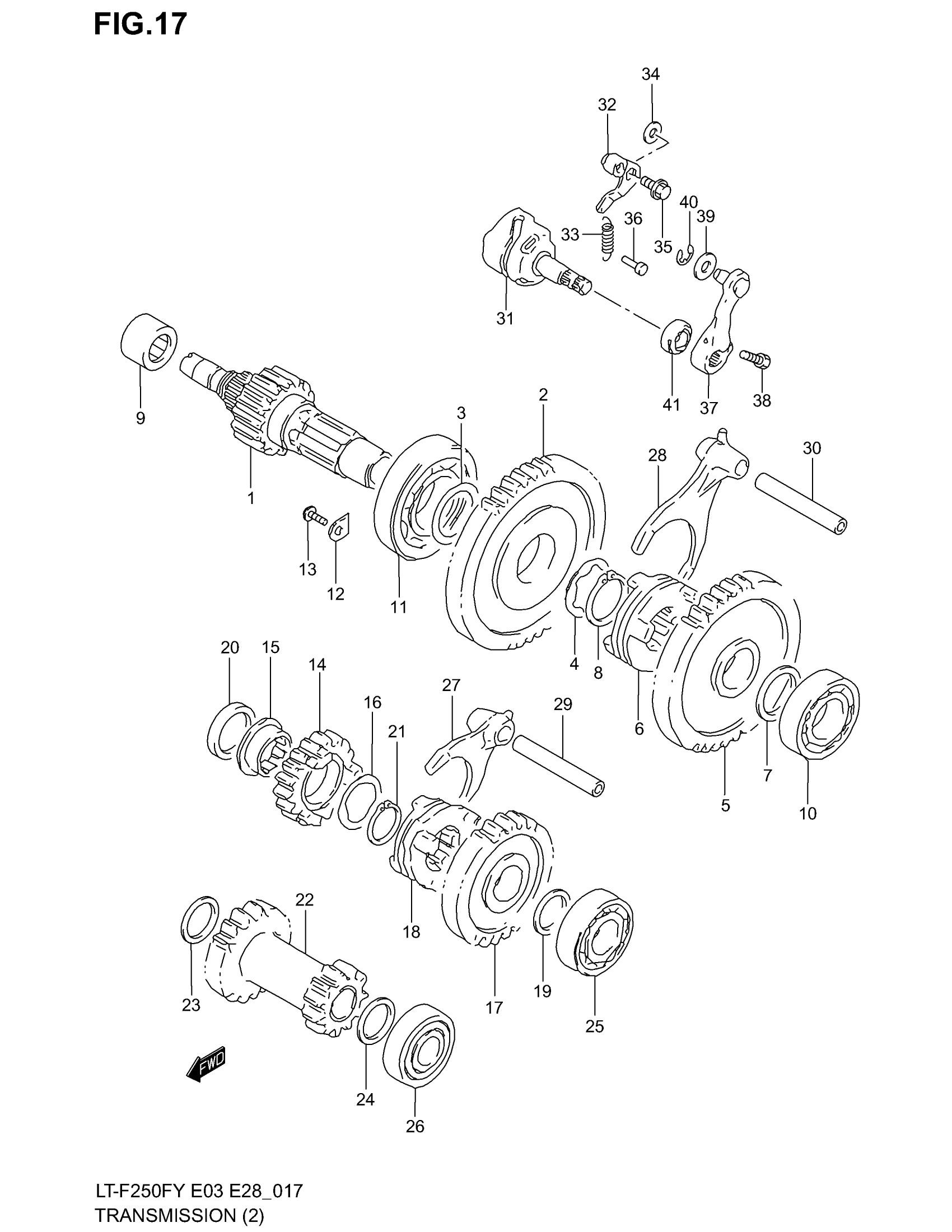

Suzuki LT-F250F (2002) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT, SUB TRANSMISSION | MODEL X

29121-19B10

Unavailable

1

SHAFT, SUB TRANSMISSION | MODEL Y/K1/K2 This part replaces 29121-19B01.

29121-19B10

Unavailable

2

GEAR, DRIVEN NO.1 (NT:43)

29311-19B01

Unavailable

3

WASHER, RH

08211-32441

$4.35

4

WASHER, LH

09167-32002

$5.10

5

GEAR, DRIVEN NO.2 (NT:37)

29320-19B00

$206.05

6

DOG, DRIVEN GEAR

29331-19B00

Unavailable

7

WASHER

08211-25351

$4.03

8

CIRCLIP This part replaces 08331-31326.

08331-3132A

Unavailable

9

BEARING, RH

09263-18023

Unavailable

10

BEARING, LH

09262-25003

$22.40

11

BEARING (35X72X17) This part replaces 09262-35039.

09262-35038

$42.19

12

RETAINER

24741-21A00

$2.80

13

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

14

GEAR, DRIVE NO.1 (NT:18) | MODEL X/Y This part replaces 29211-19B00.

29211-19B01

$97.60

14

GEAR, DRIVE NO.1 (NT:18) | MODEL K1/K2

29211-19B01

$97.60

15

BUSH

29215-19B01

$27.30

16

WASHER

09167-25016

$4.03

17

GEAR, DRIVE NO.2 (NT:25)

29220-19B00

$122.07

18

DOG, DRIVE GEAR

29231-19B00

Unavailable

19

WASHER (20X30X1.0)

09181-20195

$2.68

20

SPACER (25X34X5.5)

09180-25083

$15.42

21

SNAP RING

09380-25003

$2.80

22

GEAR, IDLE (NT:17/11) | MODEL X This part replaces 29150-19B02.

29150-19B10

$200.50

22

GEAR, IDLE (NT:17/11) | MODEL Y/K1/K2

29150-19B10

$200.50

23

WASHER (17X24X4.5)

09180-17076

$10.42

24

WASHER (15X26X1.0)

09181-15195

$2.59

25

BEARING, DRIVE SHAFT LH

09262-20069

$21.00

26

BEARING This part replaces 09262-15022.

09262-15062

$19.90

27

FORK, NO.1

29511-19B00

Unavailable

28

FORK, NO.2

29521-19B00

Unavailable

29

SHAFT, NO.1 | MODEL X This part replaces 25421-35403.

25421-35410

$26.50

29

SHAFT, NO.1 | MODEL Y/K1/K2

25421-35410

$26.50

30

SHAFT, NO.2

25421-04702

Unavailable

31

CAM, SUB TRANSMISSION GEAR

29610-19B10

$73.01

32

STOPPER

29630-19B00

$14.45

33

SPRING

09443-09042

$5.49

34

WASHER

08211-06141

$1.61

35

BOLT(6X14.6) | MODEL X/Y/K1

09111-06054

$4.02

35

BOLT (6X14.6) | MODEL K2

09111-06073

Unavailable

36

PIN

09223-04001

$1.83

37

ARM

25360-19B70

$74.95

38

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.77

39

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

40

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

41

OIL SEAL (12X22X9)

09285-12006

$5.70
