2002 Suzuki LT-F250F Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2002 Suzuki LT-F250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

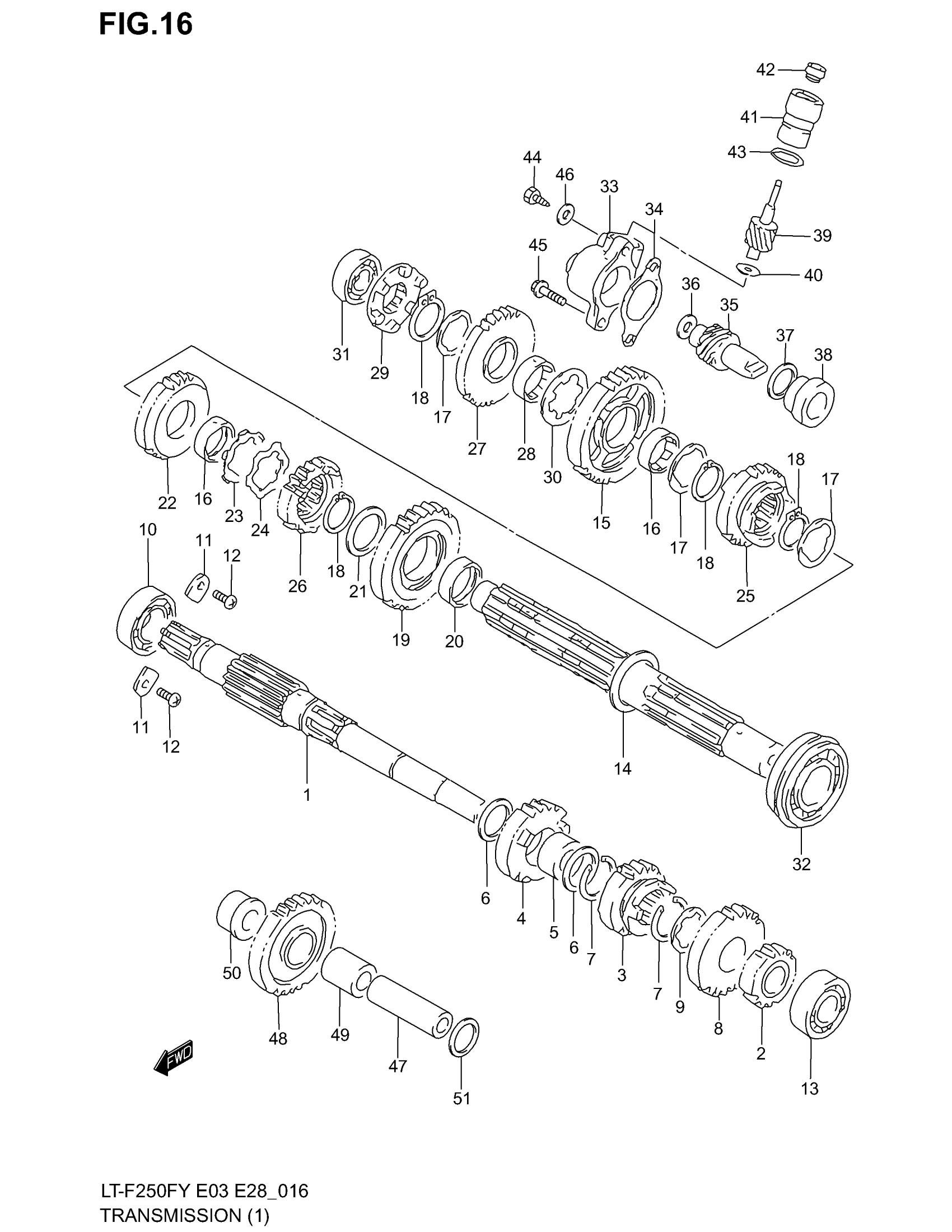

2002 Suzuki LT-F250F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:12) | MODEL X/Y This part replaces 24121-19B01.

24121-19B10

1
Out of stock

1

COUNTERSHAFT (NT:12) | MODEL K1/K2

24121-19B10

1
Out of stock

2

1

$130.65

In stock

3

1

$134.75

In stock

4

1

$59.74

In stock

5

BUSH

09300-22008

1

$16.03

In stock

6

WASHER (22X30X1.0)

09181-22167

2

$2.92

In stock

7

CIRCLIP

09380-22006

2

$3.00

In stock

9

WASHER (22.1X27X0.5)

09167-22013

1
Out of stock

10

1

$27.83

In stock

11

RETAINER

24741-21A00

2
Out of stock

12

SCREW (6X12)

09125-06110

1

$2.31

In stock

13

1

$98.20

In stock

14

DRIVESHAFT | MODEL X/Y This part replaces 24131-19B02.

24131-19B10

1
Out of stock

14

DRIVESHAFT | MODEL K1/K2

24131-19B10

1
Out of stock

15

GEAR, 1ST DRIVEN (NT:37)

24311-18A02

1
Out of stock

16

BUSH | MODEL K1/K2

24332-24510

2

$21.07

In stock

17

LOCK WASHER

09167-25016

3

$4.03

In stock

18

SNAP RING

09380-25003

4
Out of stock

19

1

$127.82

In stock

20

BUSH

09300-25020

1

$18.32

In stock

21

WASHER

08211-25351

1

$4.03

In stock

22

1

$122.62

In stock

23

LOCK WASHER

09169-25001

1
Out of stock

24

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

25

1

$124.92

In stock

26

1

$124.92

In stock

27

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

1
Out of stock

28

BUSH,REVERSE DRIVEN GEAR

24333-18A00

1
Out of stock

29

DOG

24581-18A00

1
Out of stock

30

WASHER (25.1X40X1.5)

09167-25017

1
Out of stock

31

1

$40.18

In stock

32

1

$35.73

In stock

33

1

$71.65

In stock

34

GASKET

26451-19B12

1

$4.70

In stock

35

GEAR, ODOMETER DRIVE (NT:10)

26461-19B00

1
Out of stock

36

1

$3.22

In stock

37

WASHER, LH (17X24X1.0)

09181-17139

1
Out of stock

38

SPACER

26481-19B00

1
Out of stock

39

1

$46.98

In stock

40

WASHER

08211-08151

1

$1.42

In stock

41

SLEEVE

26442-19B00

1

$45.52

In stock

42

OIL SEAL (5X12X8)

09289-05002

1

$8.21

In stock

43

1

$3.98

In stock

44

1

$2.96

In stock

45

BOLT

09103-06201

2
Out of stock

46

WASHER (6.2X11X1.2)

09168-06004

1
Out of stock

47

SHAFT, REVERSE IDLE

24551-19B00

1
Out of stock

48

GEAR, REVERSE IDLE (NT:29)

24561-19B00

1
Out of stock

49

BUSH

09300-17010

1
Out of stock

50

SPACER

24562-19B00

1
Out of stock

51

WASHER (17X28X1.0)

09181-17195

1

$3.04

In stock
