2002 Suzuki LT-F250F Suspension ARM Diagram

← All diagrams

Find the part on the Suspension ARM diagram for your 2002 Suzuki LT-F250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

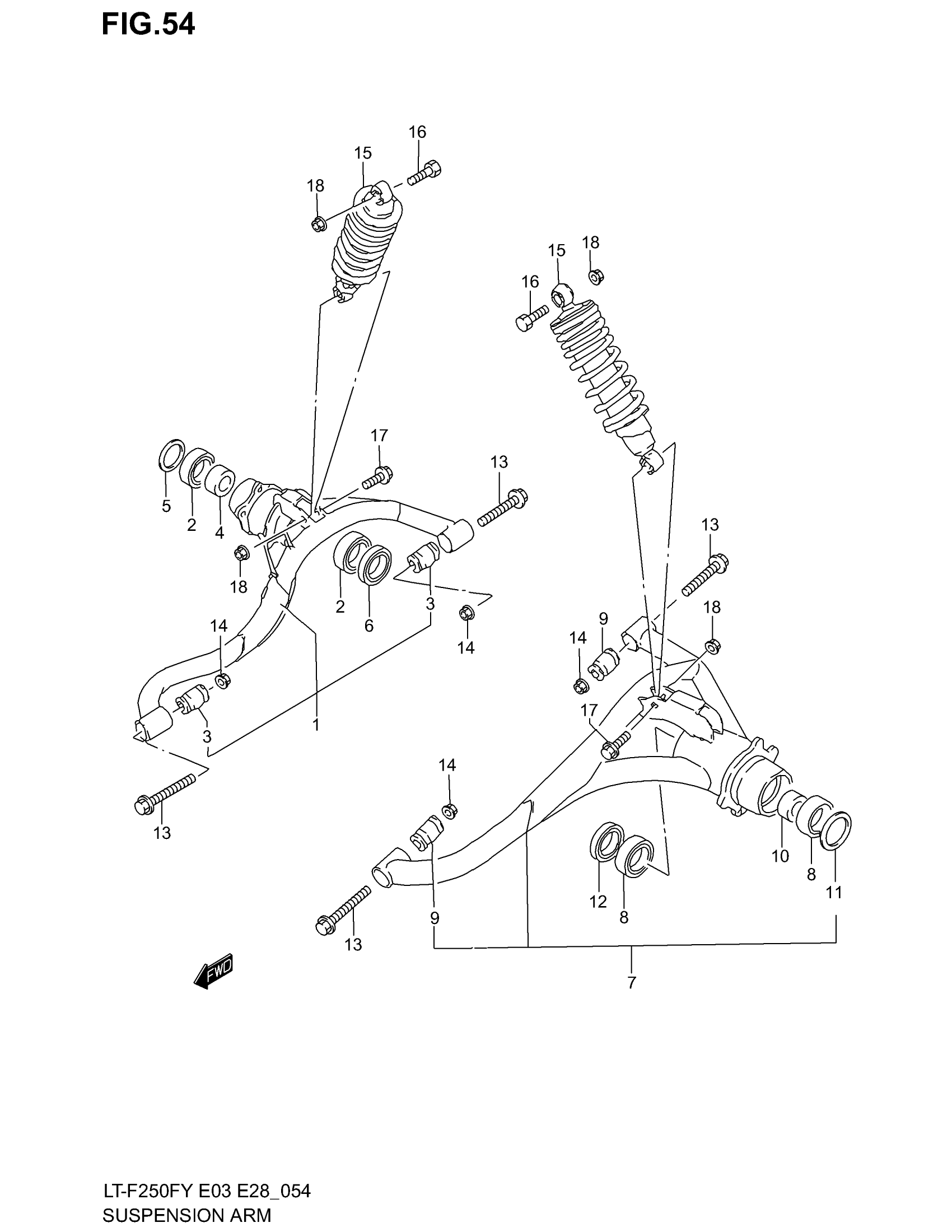

2002 Suzuki LT-F250F Suspension ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ARM SET, SUSPENSION RH (BLACK) | Includes Item(s) 2 - 6

61100-19860-019

1
Out of stock

2

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

2
Out of stock

3

BUSHING (10.2X25.5X52.2)

09319-10030

2
Out of stock

4

SPACER (32.4X38X17)

09180-32007

1
Out of stock

5

SEAL, DUST OUTER (40X58X6)

09283-40018

1
Out of stock

6

SEAL, DUST INNER (40X58X8)

09283-40019

1
Out of stock

7

ARM SET, SUSPENSION LH (BLACK) | Includes Item(s) 8 - 12

61100-19871-019

1
Out of stock

8

BEARING,DRIVEN This part replaces 09262-32008.

09262-32023

2
Out of stock

9

BUSHING (10.2X25.5X52.2)

09319-10030

2
Out of stock

10

SPACER (32.4X38X17)

09180-32007

1
Out of stock

11

SEAL, DUST OUTER (40X58X6)

09283-40018

1
Out of stock

12

SEAL, DUST INNER (40X58X8)

09283-40019

1
Out of stock

13

BOLT,10X77 This part replaces 09103-10247.

09103-10247-XC0

4
Out of stock

14

NUT

08319-31107

4
Out of stock

15

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL X/Y This part replaces 62100-19B10-019.

62100-19B20-019

2
Out of stock

15

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL K1/K2

62100-19B20-019

2
Out of stock

16

BOLT, UPPER (10X38)

09100-10227

2
Out of stock

17

BOLT, LOWER (10X37)

09103-10019

2
Out of stock

18

NUT

08319-31107

4
Out of stock
