2002 Suzuki LT-F250F Handle Lever Diagram

← All diagrams

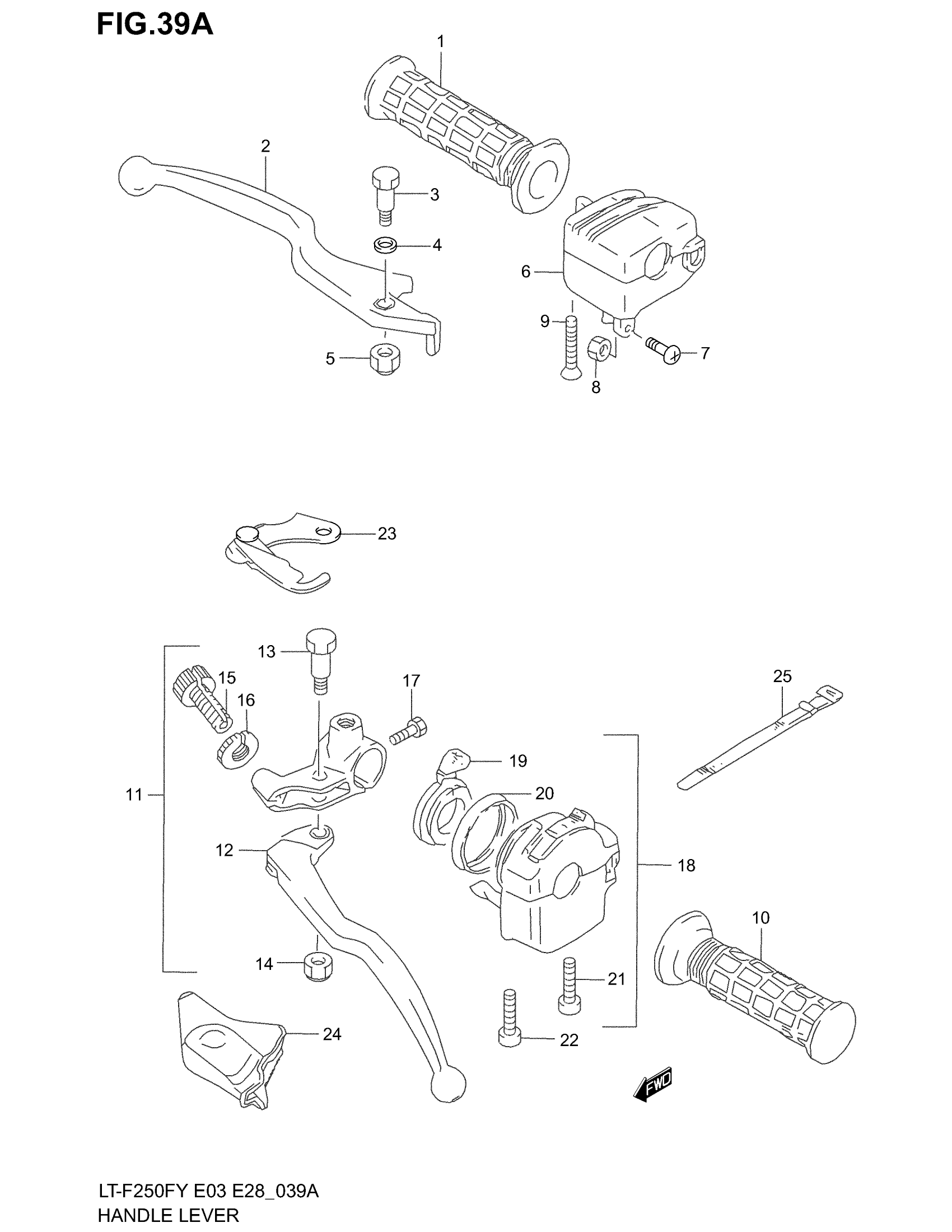

Find the part on the Handle Lever diagram for your 2002 Suzuki LT-F250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F250F Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$11.70

In stock

2

LEVER, BRAKE

57421-39D10

1
Out of stock

3

BOLT

09111-06075

1

$8.28

In stock

4

SPACER

57349-38F00

1
Out of stock

5

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

6

1

$128.28

In stock

7

SCREW

09125-05066

1

$1.76

In stock

8

NUT

09140-05006

1

$2.77

In stock

9

SCREW

02132-05307

2

$1.63

In stock

10

1

$11.70

In stock

12

1

$55.35

In stock

13

BOLT

57431-29502

1

$8.65

In stock

14

.NUT This part replaces 08319-21063.

08319-2106B

1
Out of stock

15

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

1
Out of stock

16

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

1
Out of stock

17

..BOLT This part replaces 01547-06203.

01547-0620B

1
Out of stock

19

LEVER, CHOKE

37571-19B01

1
Out of stock

20

COVER, CHOKE

37576-19B01

1
Out of stock

21

1

$2.88

In stock

22

1

$2.42

In stock

23

STOPPER, BRAKE

57790-09F00

1
Out of stock

24

COVER, BRAKE DUST

57541-09F00

1
Out of stock

25

BAND

09407-12402

1
Out of stock
