2002 Suzuki LT-F250F Left Rear Wheel Diagram

← All diagrams

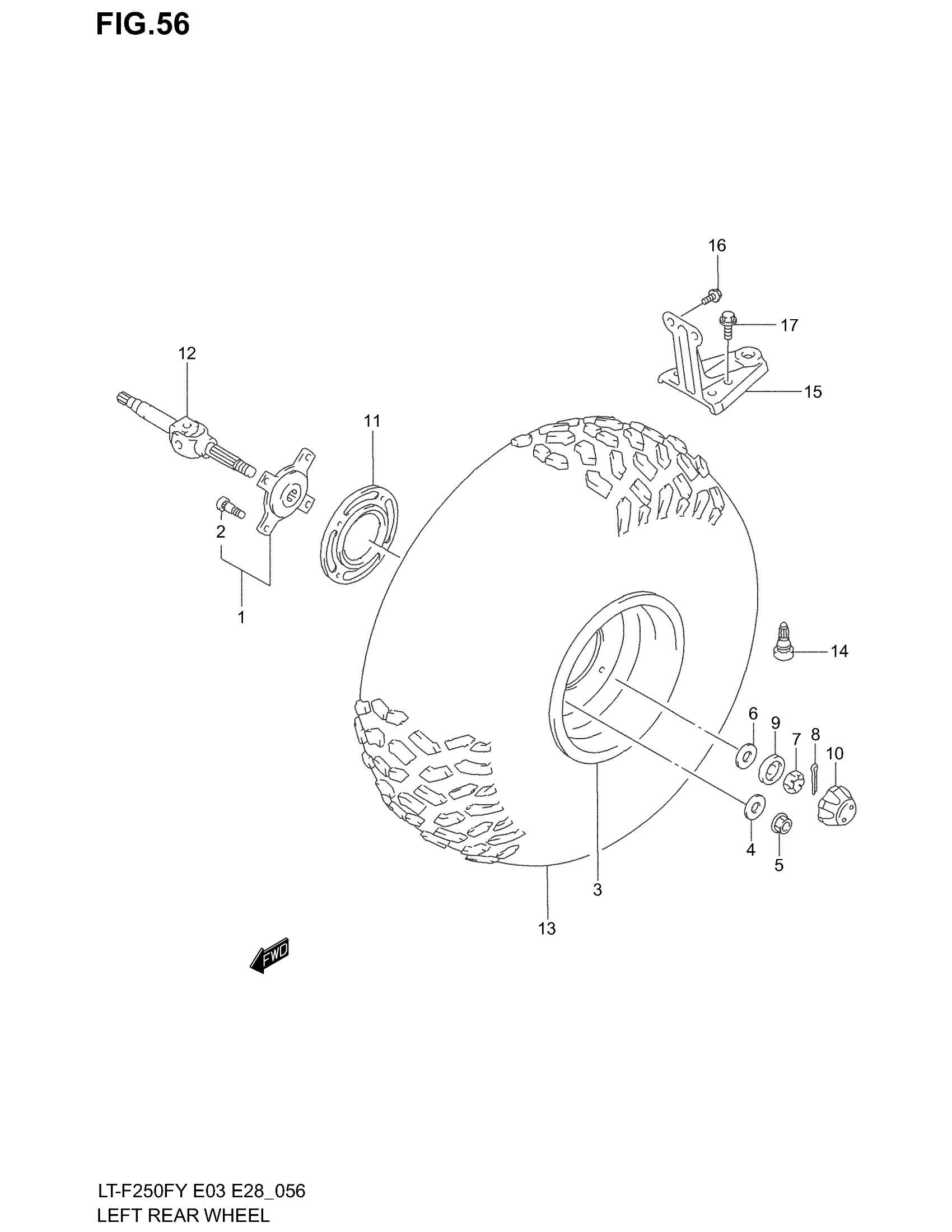

Find the part on the Left Rear Wheel diagram for your 2002 Suzuki LT-F250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F250F Left Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL | Includes Item(s) 2

64110-19B11

1
Out of stock

2

4

$2.23

In stock

3

RIM, REAR WHEEL (10X9.5AT) (SILVER)

65310-19B11-12R

1
Out of stock

4

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

4
Out of stock

5

NUT This part replaces 08316-10103.

08316-1010B

4
Out of stock

6

WASHER

09164-18004

1
Out of stock

7

NUT, HUB

09141-18008

1

$8.27

In stock

8

1

$1.47

In stock

9

HOLDER, CAP

64726-19B00

1

$3.39

In stock

10

CAP, CENTER

54725-39D00

1

$15.15

In stock

11

SPACER, HUB LH

64113-19B10

1
Out of stock

12

AXLE, REAR

64710-19B10

1
Out of stock

13

TIRE, T/L REAR (AT25X12-10) (DUNLOP)

65100-19B60

1
Out of stock

14

VALVE ASSY, WHEEL RIM TR412

43130-24A00

1
Out of stock

15

PLATE, TRLR TOW

95210-20B00

1
Out of stock

16

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock
