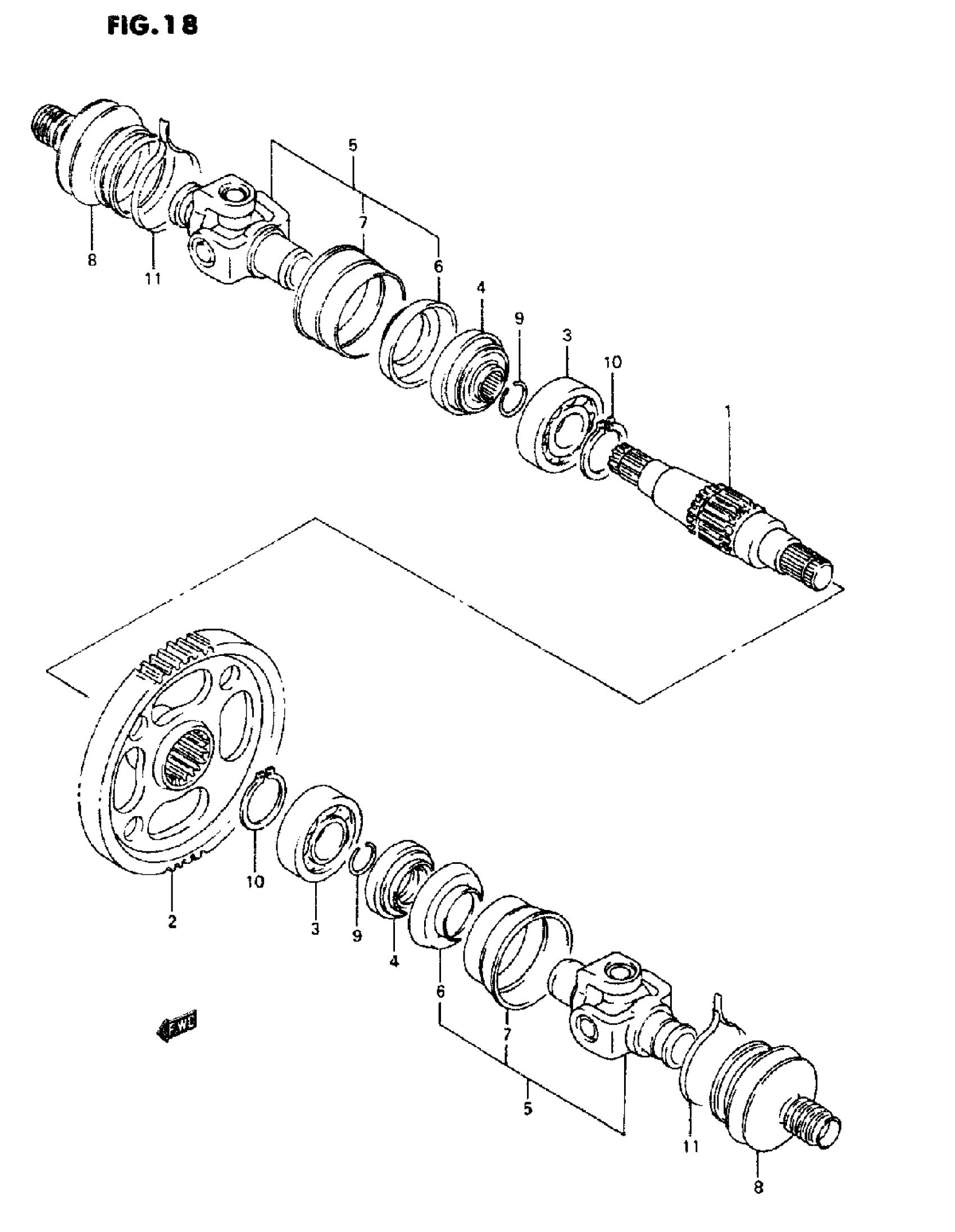

Suzuki LT-F250 (1997) TRANSMISSION (3) Diagram

#

Description

Price

1

SHAFT,REAR FINA This part replaces 27551-19B10.

27551-19B11

$293.05

2

GEAR, DRIVEN (NT:62)

27541-19B10

Unavailable

3

BEARING (25X62X17)

09262-25073

$25.92

4

OIL SEAL

09283-34008

$20.72

5

JOINT, REAR FINAL OUTPUT This part replaces 27501-19B70.

27501-19B80

$392.00

6

COVER, UNIVERSAL JOINT This part replaces 27592-19B70.

27592-19B80

$37.47

7

-COVER. UNIVERSAL JOINT

27593-19B70

$26.12

8

BOOT,UNIVERSAL This part replaces 27153-19B70.

27153-19B71

$14.59

9

RING (OD:24, D:1.6)

09381-24001

$2.76

10

CIRCLIP This part replaces 08331-31406.

08331-31409

$3.58

11

CLAMP, UNIVERSAL JOINT

44123-60A00

$21.90
