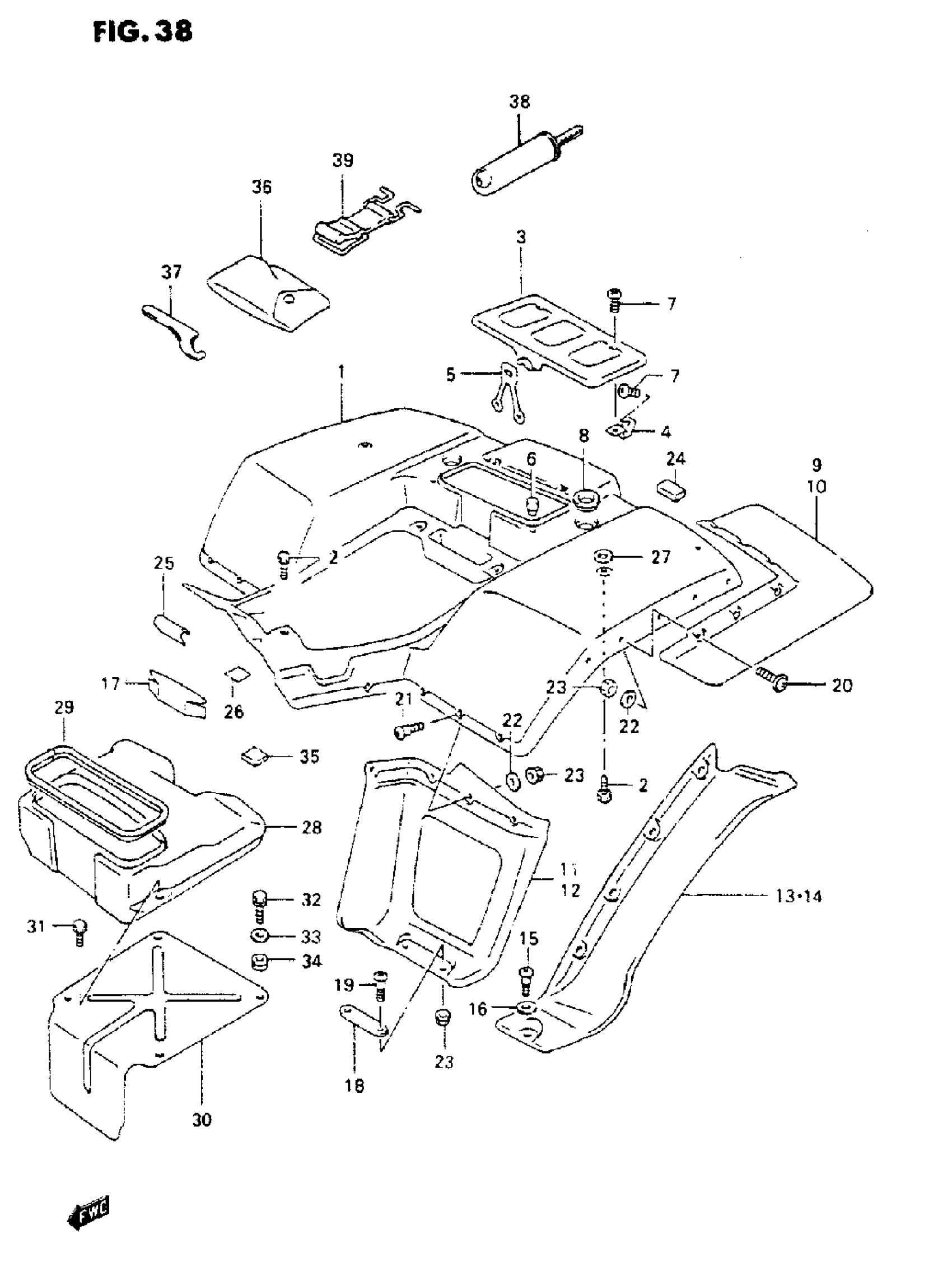

Suzuki LT-F250 (1997) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (GREEN)

63111-19B10-1AT

Unavailable

2

BOLT

09118-06006

$2.82

3

LID, FENDER

63195-19B00

Unavailable

4

HINGE, LID

63270-19B00

Unavailable

5

BAND, LID

63196-19B00

Unavailable

6

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

7

SCREW (5X10)

09125-05073

$2.38

8

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

9

MUD GUARD, RH

63331-18B10

Unavailable

10

MUD GUARD, LH

63341-18B10

Unavailable

11

MUD GUARD, FRONT RH

63351-19B10

Unavailable

12

MUD GUARD, FRONT LH

63361-19B10

Unavailable

13

EXTENSION, RH

63311-19B00

Unavailable

14

EXTENSION, LH

63321-19B00

Unavailable

15

SCREW

09139-05040

$2.38

16

WASHER, RR SIDE This part replaces 09160-08107.

09160-08123

$2.00

17

HEAT SHIELD

63355-19B10

Unavailable

18

PLATE, FRONT

63341-19B10

Unavailable

19

SCREW

09139-05040

$2.38

20

SCREW

09136-05038

$2.96

21

SCREW, FRONT

09139-05038

$2.06

22

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

23

NUT This part replaces 09159-05026.

09159-05043

$2.22

24

CUSHION

63149-19B00

Unavailable

25

SHEET

63261-19B00

Unavailable

26

SHEET

63262-19B00

Unavailable

27

WASHER

09160-06077

$1.91

28

BOX. REAR

47431-19B00

Unavailable

29

MOLDING

92114-19B00

$35.20

30

PLATE, HEAT SHIELD

47432-19B02

$52.88

31

BOLT

09118-06019

$2.92

32

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

33

WASHER

09169-06040

$1.92

34

CUSHION This part replaces 09320-08030.

09320-08511

$2.02

35

CAP (OD:18) This part replaces 09250-10011.

09250-10033

$1.49

36

TOOL ASSY This part replaces 09800-21019.

09800-21075

$44.50

37

CLAW, WRENCH

09822-00004

$14.43

38

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92

39

BAND

09462-00090

Unavailable
