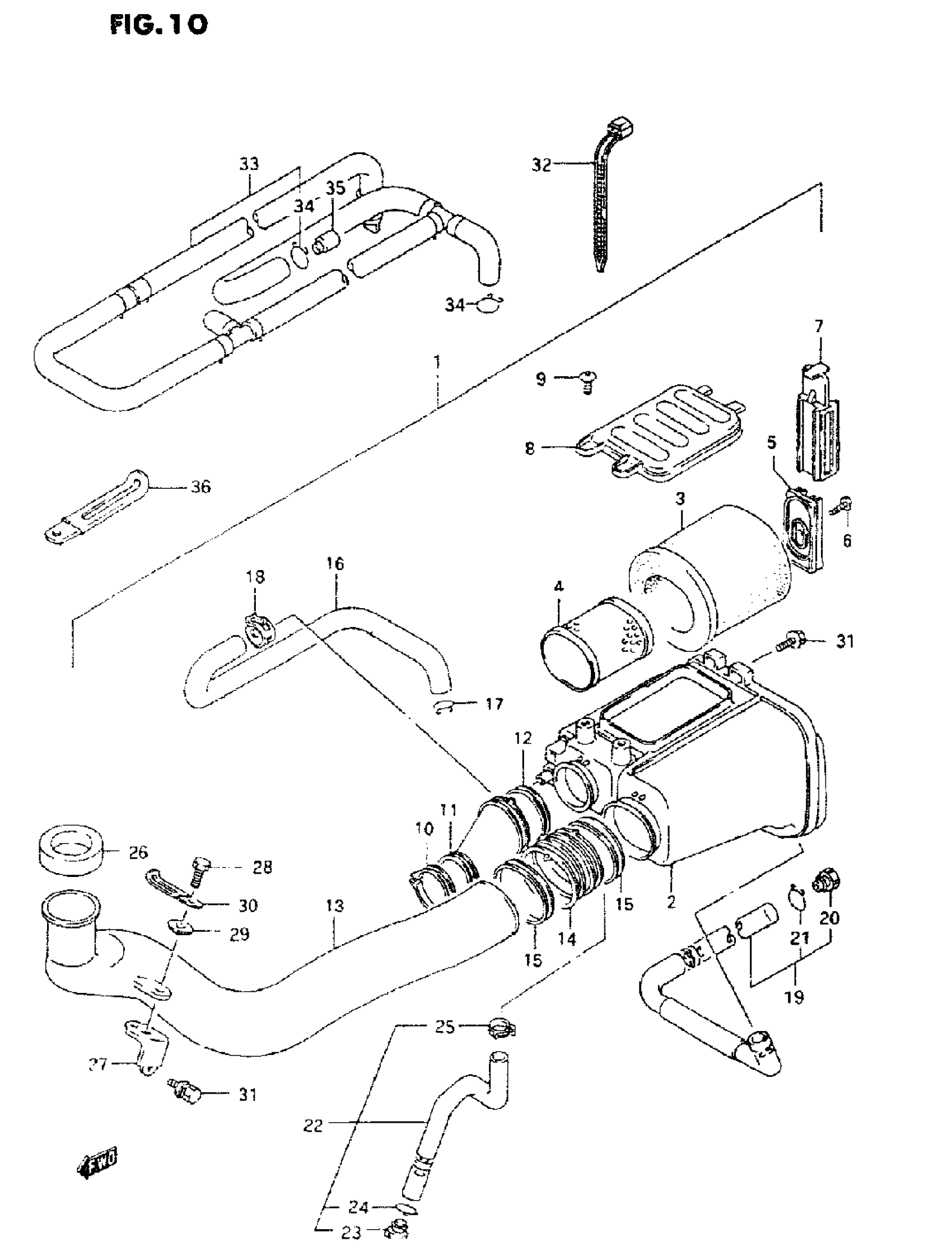

Suzuki LT-F250 (1997) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 13700-39D00.

13700-39D01

Unavailable

2

CASE, AIR CLEANER

13720-19B80

Unavailable

3

FILTER

13781-19B00

$27.40

4

HOLDER

13810-39D00

$24.39

5

GUIDE, SLIDER

13797-19B00

$3.56

6

SCREW This part replaces 02142-05163.

02142-0516A

$1.49

7

SLIDER

13798-33400

$10.28

8

CAP

13750-19B00

$16.13

9

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

10

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

11

TUBE,OUTLET This part replaces 13881-19B20.

13881-19B21

$15.10

12

..CLAMP

09402-60208

$5.11

13

TUBE, INLET This part replaces 13891-19B11.

13891-19B12

$100.02

14

JOINT

13889-19B01

$14.20

15

CLAMP

13826-19B00

$7.97

16

TUBE, BREATHER

13853-19B00

Unavailable

17

CLIP

09401-14301

$2.35

18

CLIP This part replaces 09401-14402.

09401-14404

$2.28

19

TUBE ASSY. DRAIN

13870-19B80

Unavailable

20

PLUG, DRAIN

13877-00190

$5.32

21

CLIP

09401-14301

$2.35

22

TUBE ASSY,DRAIN This part replaces 13870-39D00.

13870-39D01

Unavailable

23

PLUG

13877-00190

$5.32

24

CLIP

09401-14301

$2.35

25

CLIP This part replaces 09401-14402.

09401-14404

$2.28

26

CAP, INLET

13892-19B00

$13.92

27

BRACKET

13761-19B00

$6.38

28

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

29

SPACER

13838-02B00

$3.56

30

CLAMP

09404-06435

$3.68

31

BOLT This part replaces 01580-06123.

01580-0612A

$2.32

32

CLAMP, DRAIN TUBE

09407-14403

$2.26

33

TUBE ASSY,BREAT | OPT This part replaces 13850-19B81.

13850-19B82

$121.37

34

CLIP | OPT

09401-14301

$2.35

35

CHECK VALVE | OPT

13860-19B80

Unavailable

36

CLAMP(L:80) | OPT This part replaces 09404-06433.

09404-06036

$1.74
